Technical Specifications

Description

Specifications

  • Maximum fog output per minute: 56 m3 (2,000 ft3)
  • Fluid consumption per hour: 1.5 L (0.40 US gallon) full power

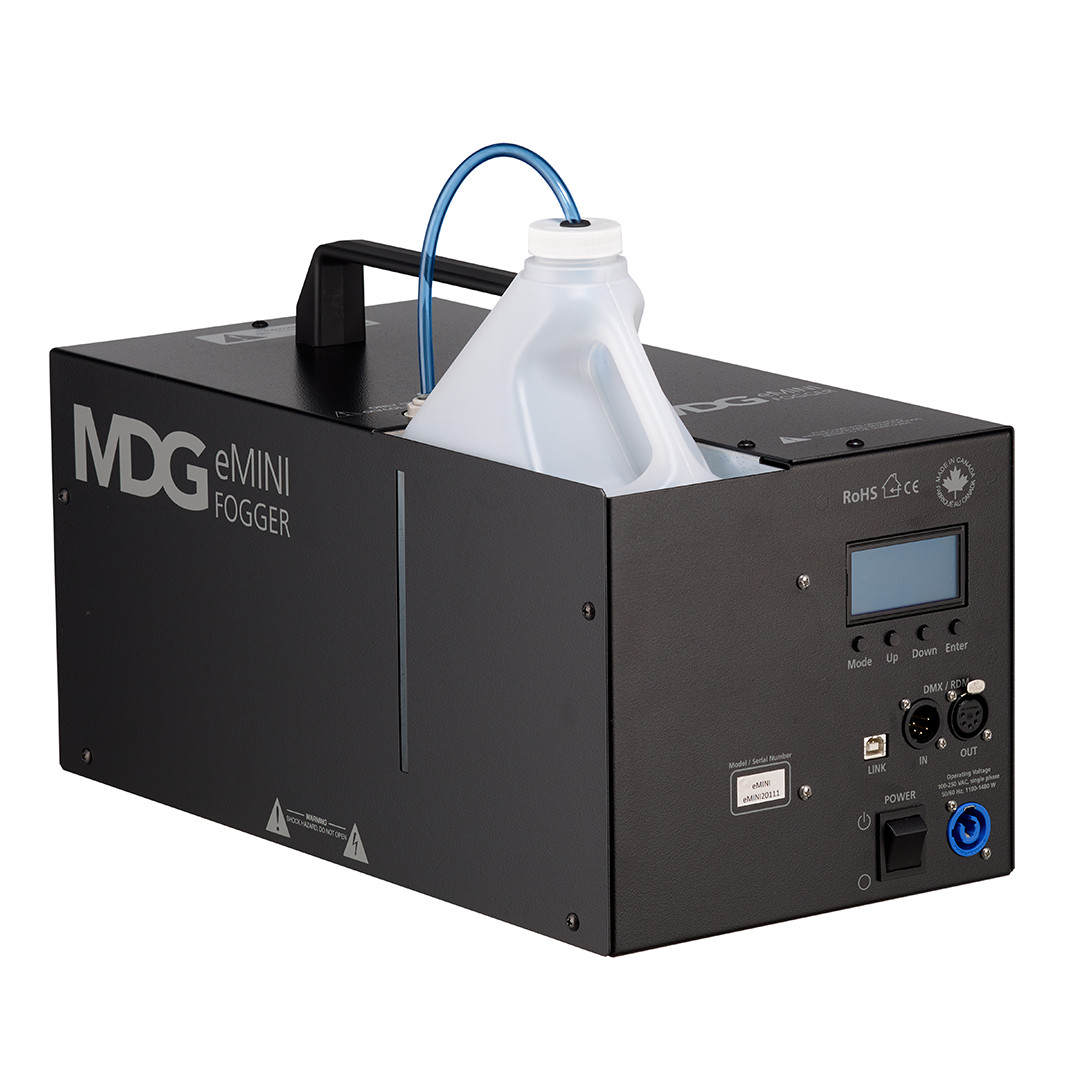

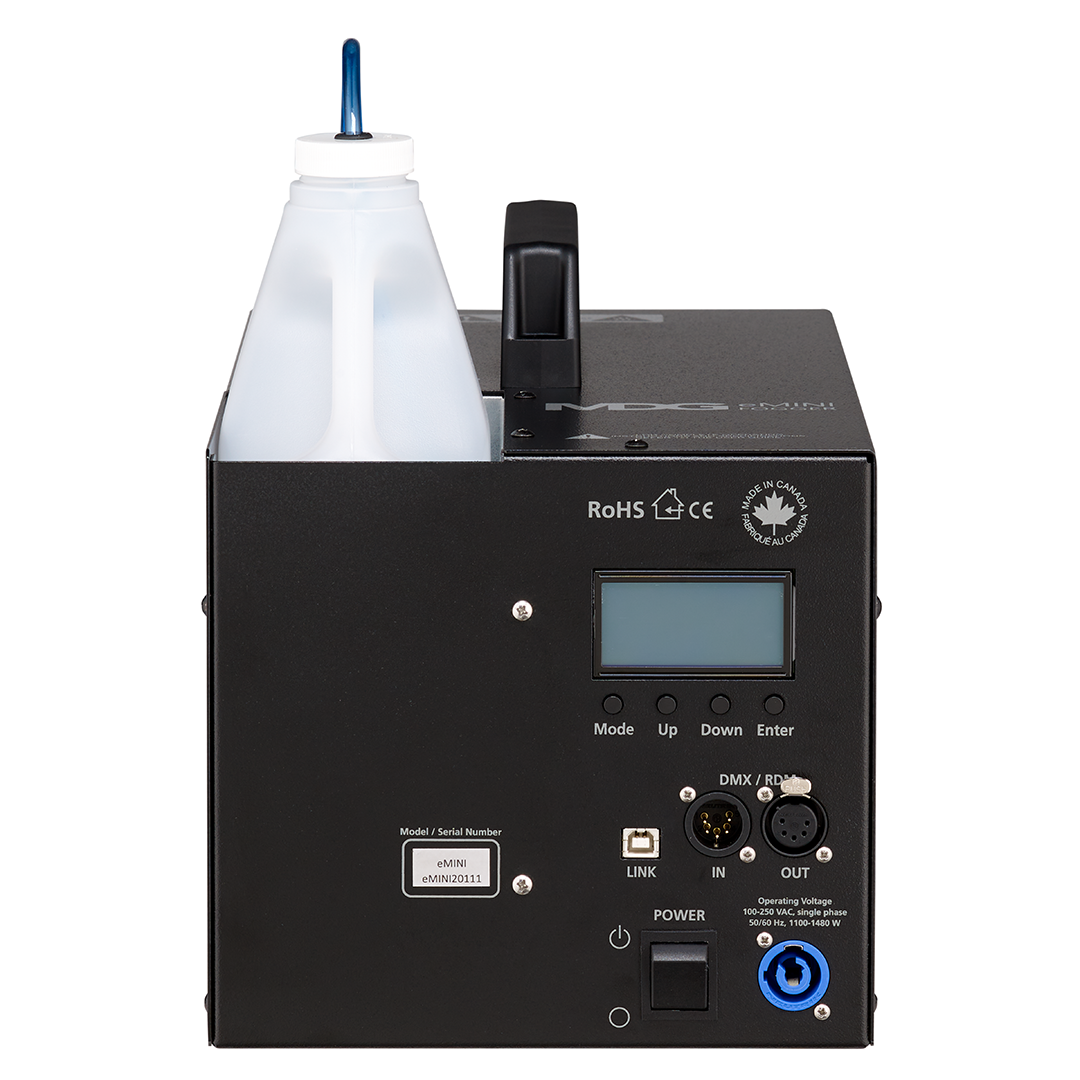

  • Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant
  • Fluid capacity: 2.5 L (0.66 US gallon)
  • Particle size: 1 - 3 microns
  • Warm-up time: 8 minutes (maximum)
  • Fluid type: MDG Dense, Low Fog or WB2
  • Operating voltage (single phase): 100 - 250 VAC, 50/60 Hz single phase
  • Power consumption: 1,415 W

Dimensions

  • Length: 46 cm (18”)
  • Width: 23 cm (9”)
  • Height: 26 cm (10”)
  • Weight: 12 kg (25 lb)
  • Shipping weight: 23 kg (50 lb) (with flight case)
  • Approval: CB, CSA and UL Certified. CE Declaration
