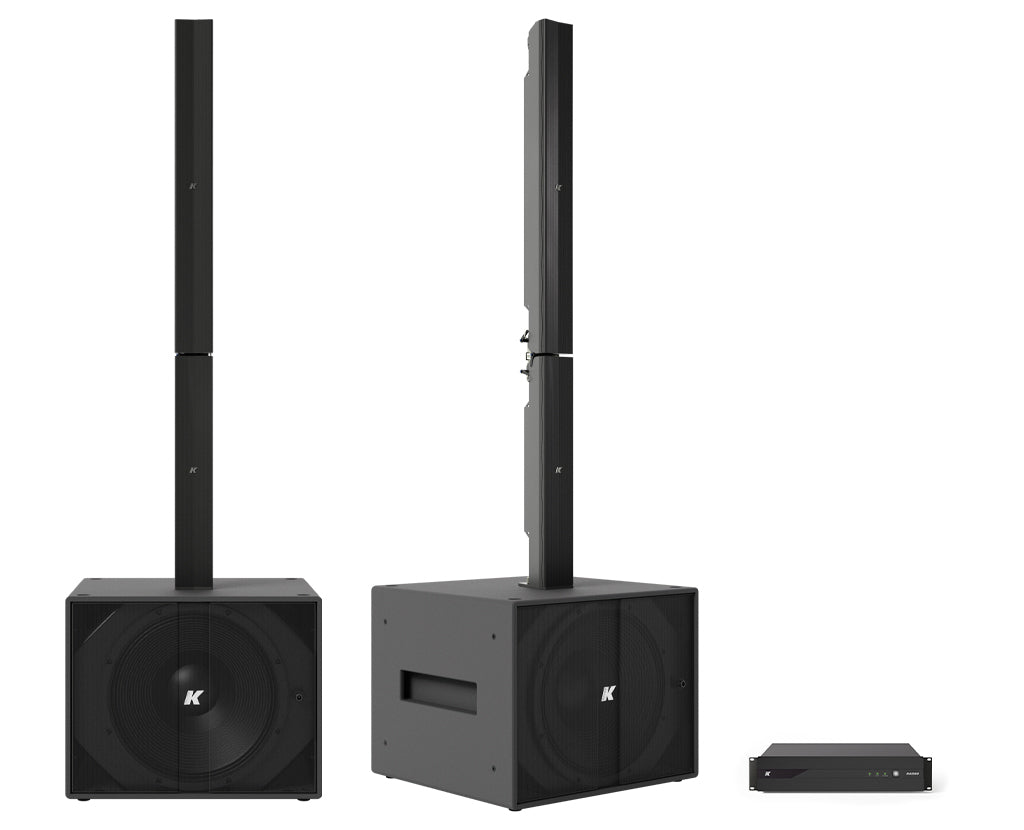

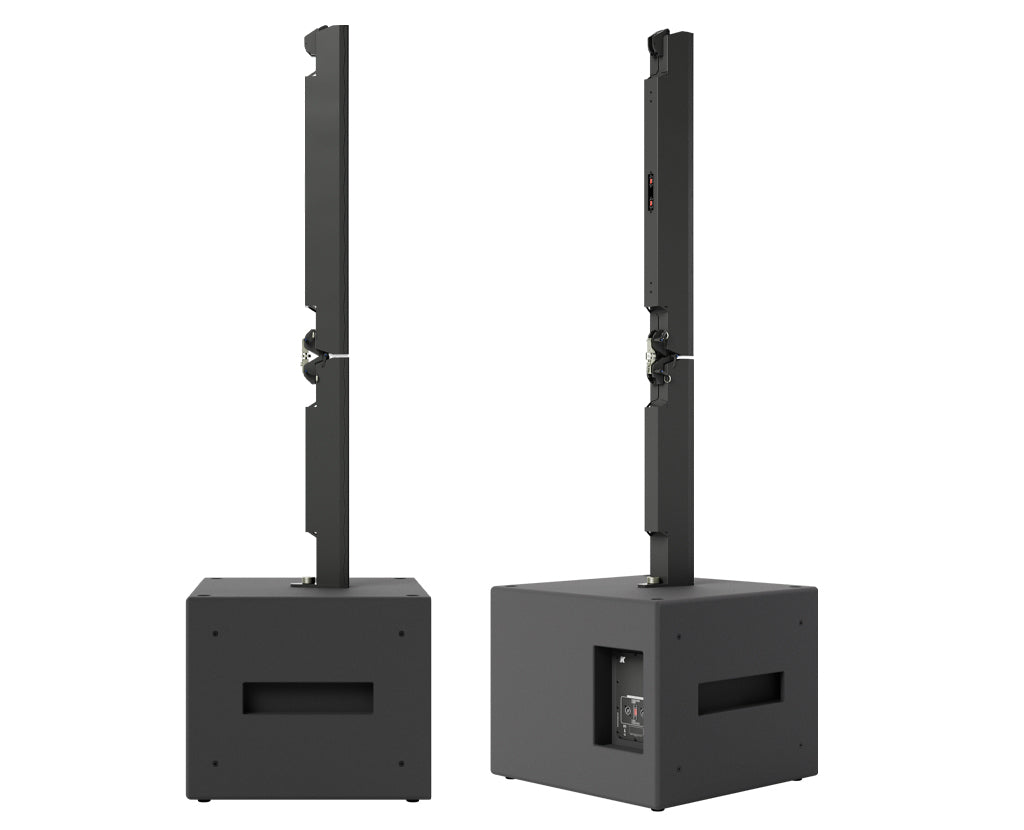

ThePinnacle-KR402YP II is exceptional sound quality and long-distance coverage, made possible by the Pure Array Technology (P.A.T.), make it the ultimate solution for professional audio delivery.

All Pinnacle Systems are designed with expansion in mind, offeringmaximum versatilityandmodularity to evolve with your needs while ensuring consistent top-tier audio quality.

KAYMAN-KY102

GENERAL

• Type: Line array
• Transducers: 8 x 4" neodymium magnet woofers
• Frequency Response: 120 Hz – 20 kHz (-6 dB)
• Max SPL: 138 dB (peak)
• Rated Power: 1200 W
• Coverage: V. 7° - 30° | H. 90°
• Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
• Nominal Impedance: 8 Ω / 32 Ω selectable
• Max SPL (Full-Range preset): 126 dB (peak)
• Frequency Response (Full-range preset): 70 Hz – 20 kHz (-6 dB)

HANDLING AND FINISHES

• Dimensions (W x H x D): 116 x 1000 x 134 mm
• Weight: 14.9 kg
• Material: Stainless Steel
• Colors: Black, White, Custom RAL
• Finishes:
• 24K Gold, Polished, Brushed

REGULATIONS

• IP Rating: IP64

THUNDER-KS3P I

GENERAL

• Type:Passive subwoofer
• Transducers:21" neodymium magnet woofer
• Frequency Response:30 Hz - 150/300 Hz (-6 dB) crossover dependant
• Crossover:DSP-controlled, Low Pass @ 150 Hz, preset dependant
• Max SPL:139 dB
• Rated Power: 2800W peak
• Coverage: Omni
• Connectors:2 x SpeaOn NL4
• Nominal Impedance:4Ω

HANDLING AND FINISHES

• Dimensions (W x H x D):735 x 580 x 700 mm
• Weight: 49,2 kg
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP54

KOMMANDER-KA104LIVE

GENERAL

• Type: 4ch switching mode, Class D Amplifier
• Output Power: 4 x 2500W @ 4Ω
• Impedance: minimum 4 Ω
• Frequency Response: 20 Hz - 20 kHz (±1 dB)
• Connections -Input: 4x XLR-F bal input, 4x XLR-M bal LINK outputOutput: 2x SpeakON NL4 speaker output - 1xCA-COM multichannel outputRemote connectivity: 1x Ethernet RJ45, 4x USB-A, Wi-Fi IEEE 802.11 b/g/nPower: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
• Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
• Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software

POWER HANDLING

• Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter.
• MAIN Operating Range: 100-240V AC, 50-60 Hz with PFC
• Power Consumption: 600 W @ 4 Ω load, Pink noise, 1/8 rated power

HANDLING AND FINISHES

• Colors: Black
• Material: Stainless Steel
• Dimensions (W x H x D): 430 x 87 x 430 mm
• Weight: 8,15 kg

REGULATIONS

• IP Rating: IP20
