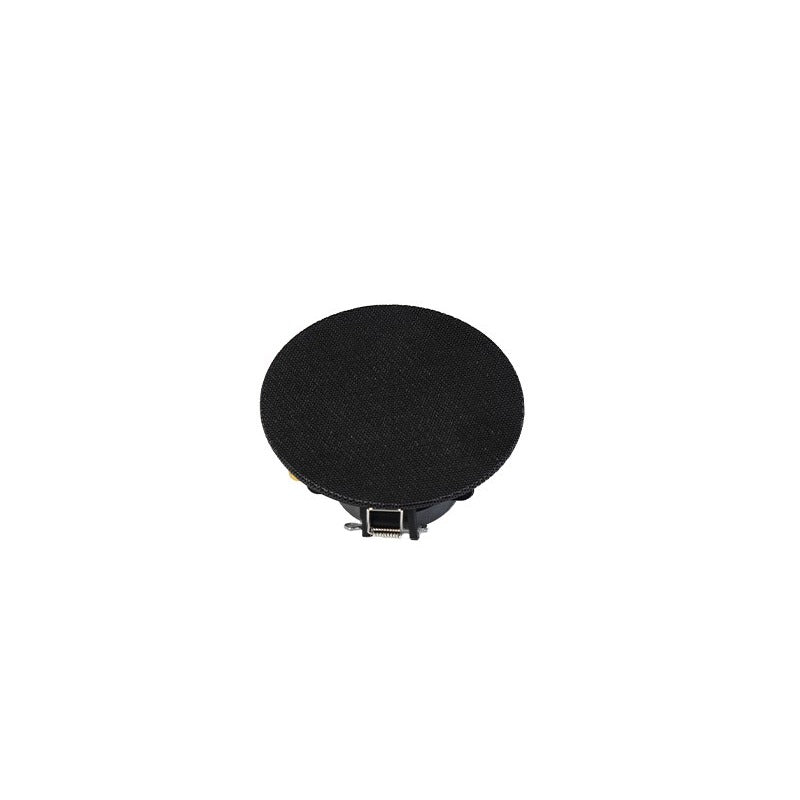

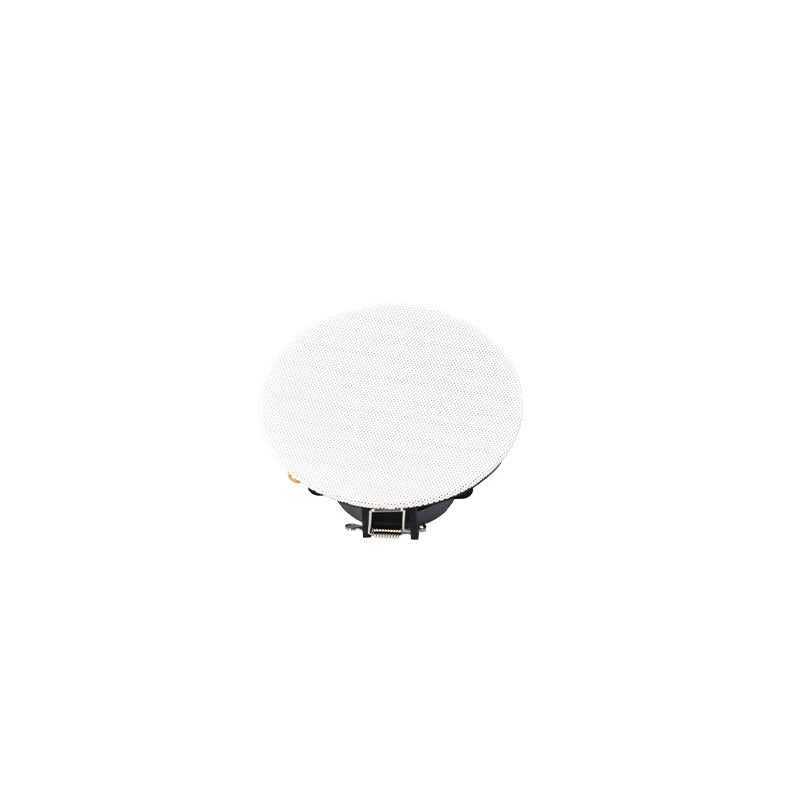

GCF3 - 3" In-Ceiling Round Speaker

SKU: GCF3W

GCF3 is a tiny but performing 3" 2-way full range passive speaker for in-ceiling or in-wall installation. Thanks to its circular frameless grille design and its extra small format, GCF3 is a very practical and discrete solution for architectural installations that require multi-point sound distribution.

Color: White

White

Product variants

Available

Need Help:

Pairs well with

GCF3 - 3" In-Ceiling Round Speaker

White

Dhs.262.91

Technical Specifications

Description

The spring clamps and the magnetic grille allow fast and tool-free installation and its 16 ohm impedance allows multiple speaker connection to KGEAR amplifiers (GA201, GA41/41L or GA43/43L) without any transformer, preserving audio quality.To obtain the best performance and low frequency extension, combine GCF3 with a KGEAR subwoofer (GS6, GCF8S, GWF8S). Available in black or white colour, the frameless magnetic grille can be painted to match any environment.

GENERAL

Rated Power: 20WPeak power: 40WImpedance: 16ΩFrequency Range: 130Hz – 20KHz (-3dB average)100Hz – 20KHz (-10dB average)Maximum SPL(1): 110dB (peak)Continuos SPL: 98dBCoverage:130° conical

TRANSDUCERS

0.5"mylar dome tweeter

AUDIO I/O

Gold plated push terminals

PHYSICAL OVERVIEW

Depth: 57 mm (2.3 in)Weight:0.4 kg (0.88 lb)Material: ABSColors: White, Black
