Technical Specifications

Description

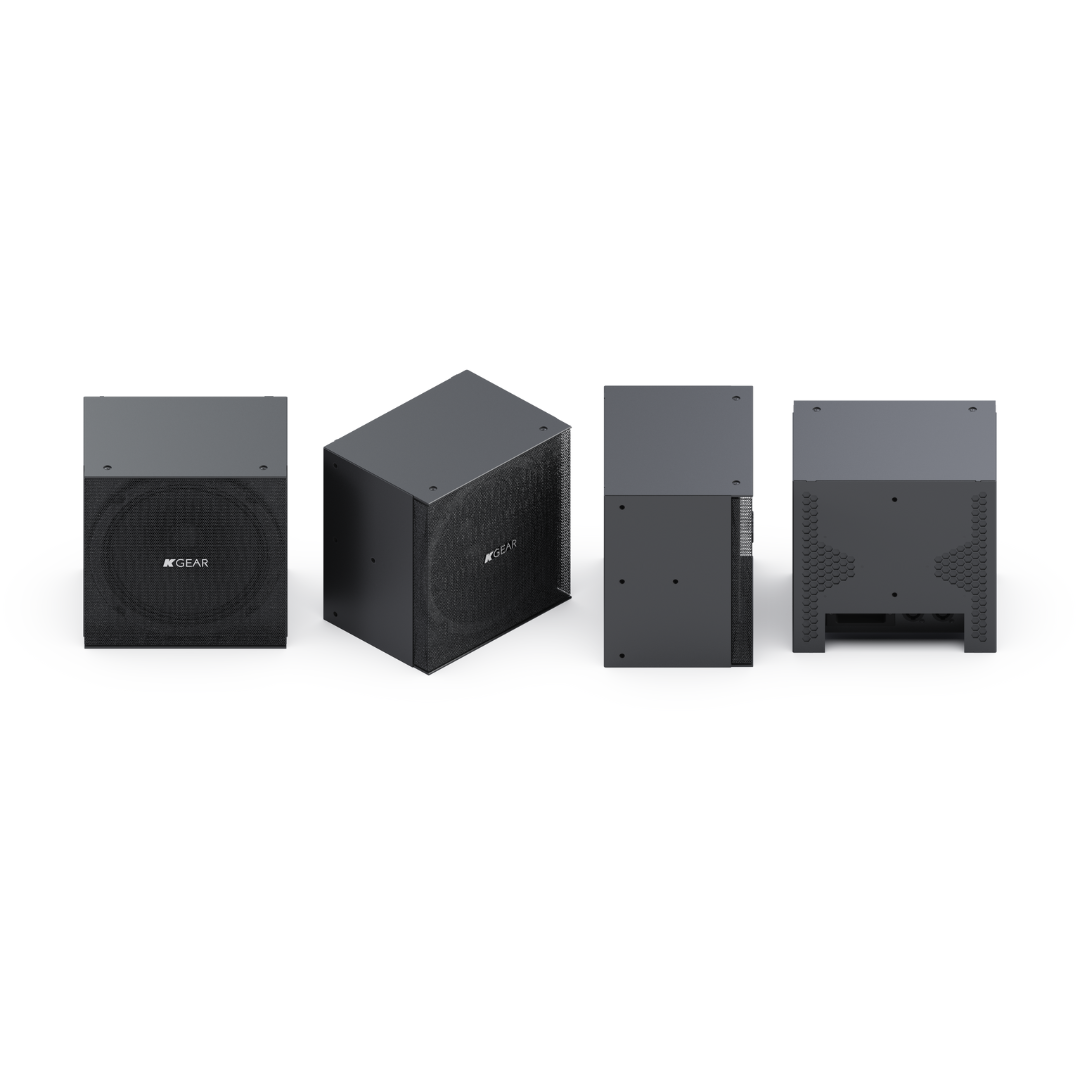

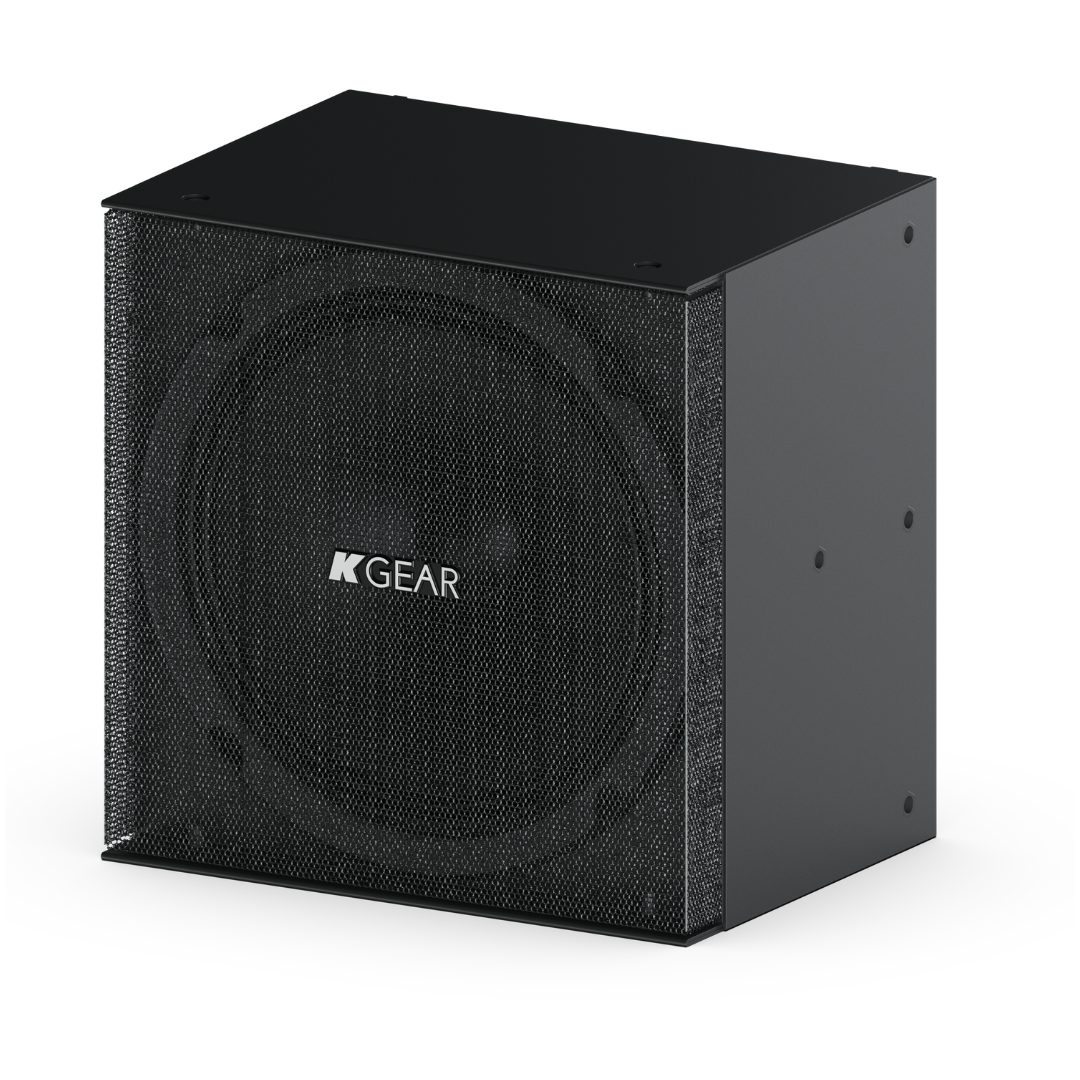

The unique cabinet design and cardioid dispersion pattern of GH8 ensures a much lower emission on the backside of the speaker, improving sound control, preventing loss of energy and residual noise. The result is a powerful 129dB SPL per single box. The robust stainless-steel enclosure is designed to withstand even the harshest conditions, with an IP64 rating ensuring durability and reliability.

The integration of Pure Array Technology (PAT) and Slim Array Technology (SAT) showcases the GH8's commitment to a perfect balance between sleek design and powerful performance. Use it as a point source speaker for distributed audio applications or join more units together to longer arrays thanks to dedicated joining hardwares - higher performance, control and optimized sound coverage is assured.

SPECIFICATIONSType  Passive point source loudspeaker with PAT and SATTransducers 8” ferrite magnet dual-cone driverFrequency Response 120 Hz - 18 kHz (-6dB) (1)Max SPL 129 dB (peak) (2)Rated Power  300 WCoverage  90° | H. 90°Connectors Phoenix connector with speaker relaunch(4-pin euroblock)2x SpeakOn NL41+ 1- (signal); 2+ 2- (through)Nominal Impedance  16 ΩDimensions (W x H x D) 220x 220 x 161mm (8.7 x 8.7 x 6.3 inches)Weight  5.8 kg (12.8 lbs)Material Stainless steelColor BlackIP Rating IP64 (G-IPCAP1 and K-IP65KITA accessory required) (3)
