GP1812A - Subwoofer + Slim Array Element (Active)

Name: GP1812A - Subwoofer + Slim Array Element (Active)
Brand: KGEAR
SKU: GP1812A
Price: 13176.56 AED
Availability: InStock

Dhs.13,176.56

Brand: KGEAR

Categories: Portable Speaker Systems

SKU: GP1812A

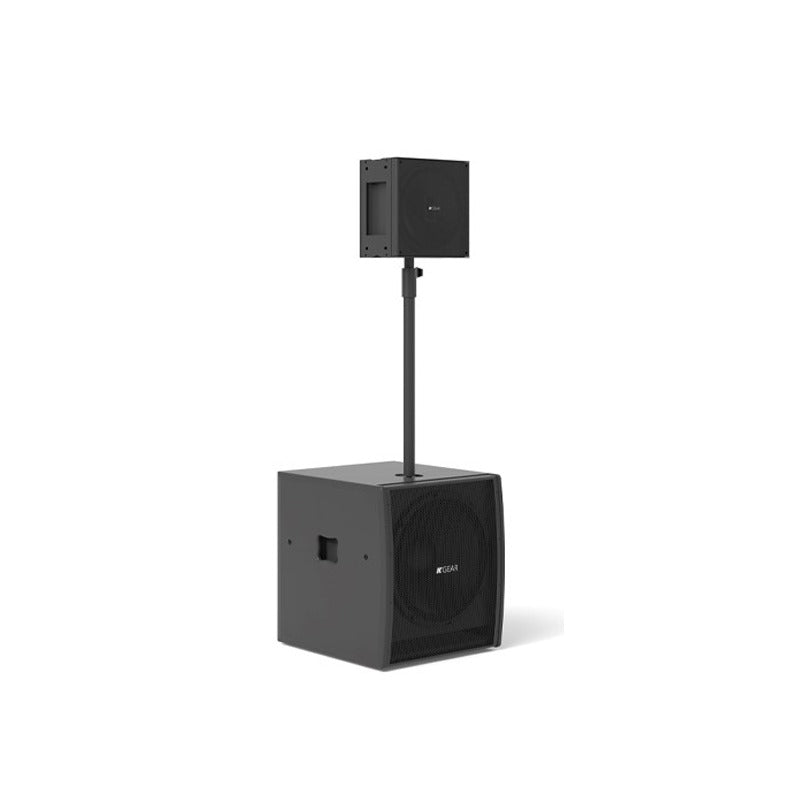

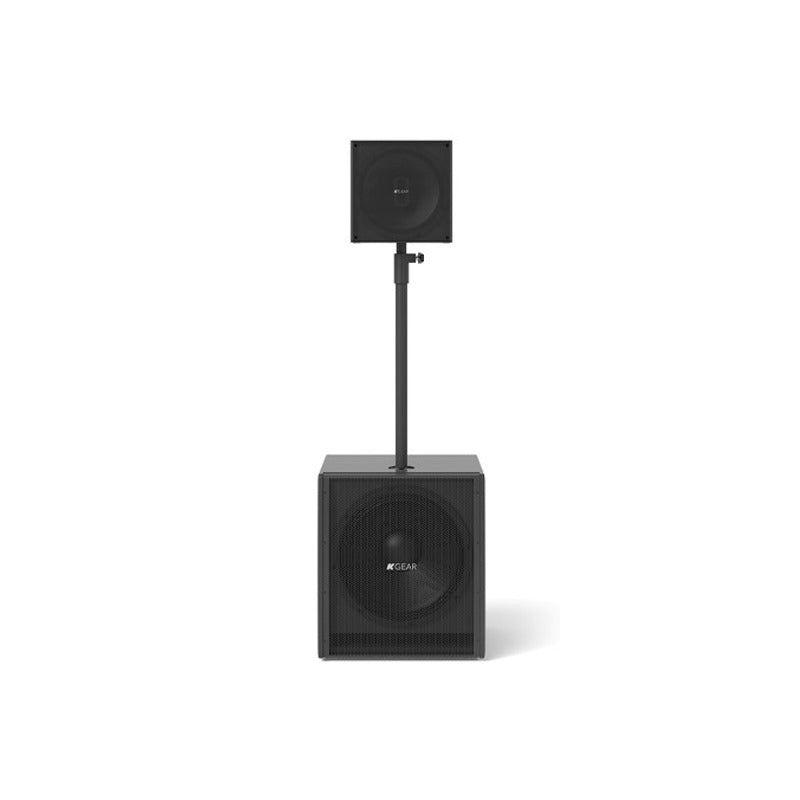

Heavy duty 18” powered subwoofer combined with GH12, our 12” passive coaxial satellite featuring K-array™ SAT® (Slim Array Technology). It can drive up to 3 GP1812 passive system in a stereo configuration. It features Powersoft™ DSP and power module with ethernet remote control and Armonia™ control software.

Designed for small to medium high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditoriums, pubs and clubs.

High performance to size/weight ratio featuring easy and fast setup possibility.

User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

GP1812A - Subwoofer + Slim Array Element (Active)

Dhs.13,176.56

Technical Specifications

Description

GENERALPower Handling: 750W subwoofer + 200W satellitePeak Power: 1500W subwoofer + 400W satelliteImpedance: 8Ω subwoofer + 32Ω satelliteFrequency Range: 45Hz – 20KHz (-6dB average)Maximum SPL(1): 129dB (peak)Continuos SPL: 117 dBCoverage: V.30° - H.90°

TRANSDUCERS Subwoofer: 18” ferrite magnetMid High Frequency: 12” coaxial with 1” compression driver ferrite magnet

AUDIO I/O Analog balanced I: 2 x Combo jack-XLR female lineAnalog power O: 1 x Speakon to drive a GP1812 Passive System in a stereo configuration

AUDIO CONTROLS Volume potentiometer | RJ45 connector | DSP can be remotely controlled via an Ethernet connection through Powersoft ArmoniaPlus Software

AMPLIFIER Type: 4-channel Class-D audio amplifierPower: 4 x 1500W @4ohmAC input: 100-240V AC @50-60HzMax power consumption: 500W Rated Load (1/8 Max Power)Protections: Thermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter

PHYSICAL OVERVIEW

SUBWOOFER Width: 545mm (21,46in)Height: 610mm (24,02in)Depth: 600mm (23,6in)Weight: 35,4kg (76,37lbs)Material: birch plywoodRating: IP41

SATELLITEWidth: 327mm (12,87in)Height: 334mm (13,15in)Depth: 198mm (7,79in)Weight: 13,8kg (30,43lbs)Material: stainless steelRating: IP54
