Technical Specifications

Description

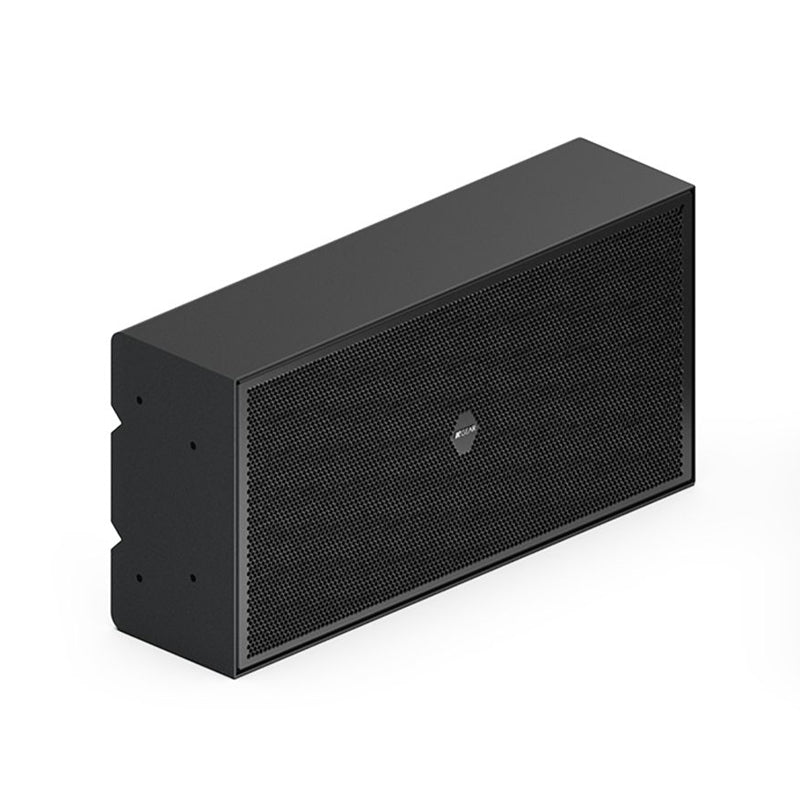

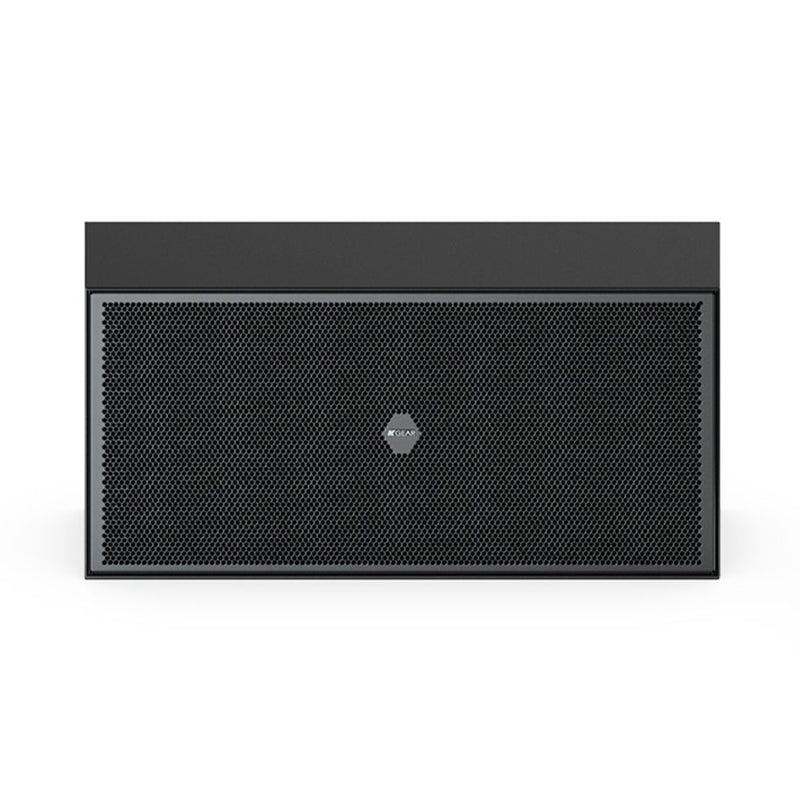

With a passive low-pass filter on board, the GU210 can be driven by any amplifier without a dedicated preset, for quick and easy installations and thanks to a frequency response from 40Hz to 250Hz, this subwoofer has a deep definition in the bass range and it is the perfect companion of GH and GF family.

Thanks to various accessory options for wall-mounting, down-firing, and standing configurations, this subwoofer offers versatility for a broad spectrum of applications—from hospitality and corporate settings to residential use.

Redefine your audio experience with easy installation and exceptional reliability, delivering powerful sound without sacrifices.

GENERAL

  • Type: Passive subwoofer
  • Transducers: 10" ferrite magnet woofer | 10" passive radiator
  • Frequency Response: 40Hz - 150Hz (-6dB)(1)
  • Frequency Response: 40Hz - 205Hz (-6dB)(2)
  • Max SPL: 124dB (peak)(3)
  • Rated Power: 400 W
  • Coverage: omni
  • Connectors: Phoenix connector with speaker relaunch - (4-pin euroblock)
  • Nominal Impedance: 4 Ω

HANDLING AND FINISHES

  • Material: Stainless Steel
  • Colors: Black / White - (GU210W)

REGULATIONS

  • IP Rating: IP64 (w G-IPCAP1)
