Technical Specifications

Description

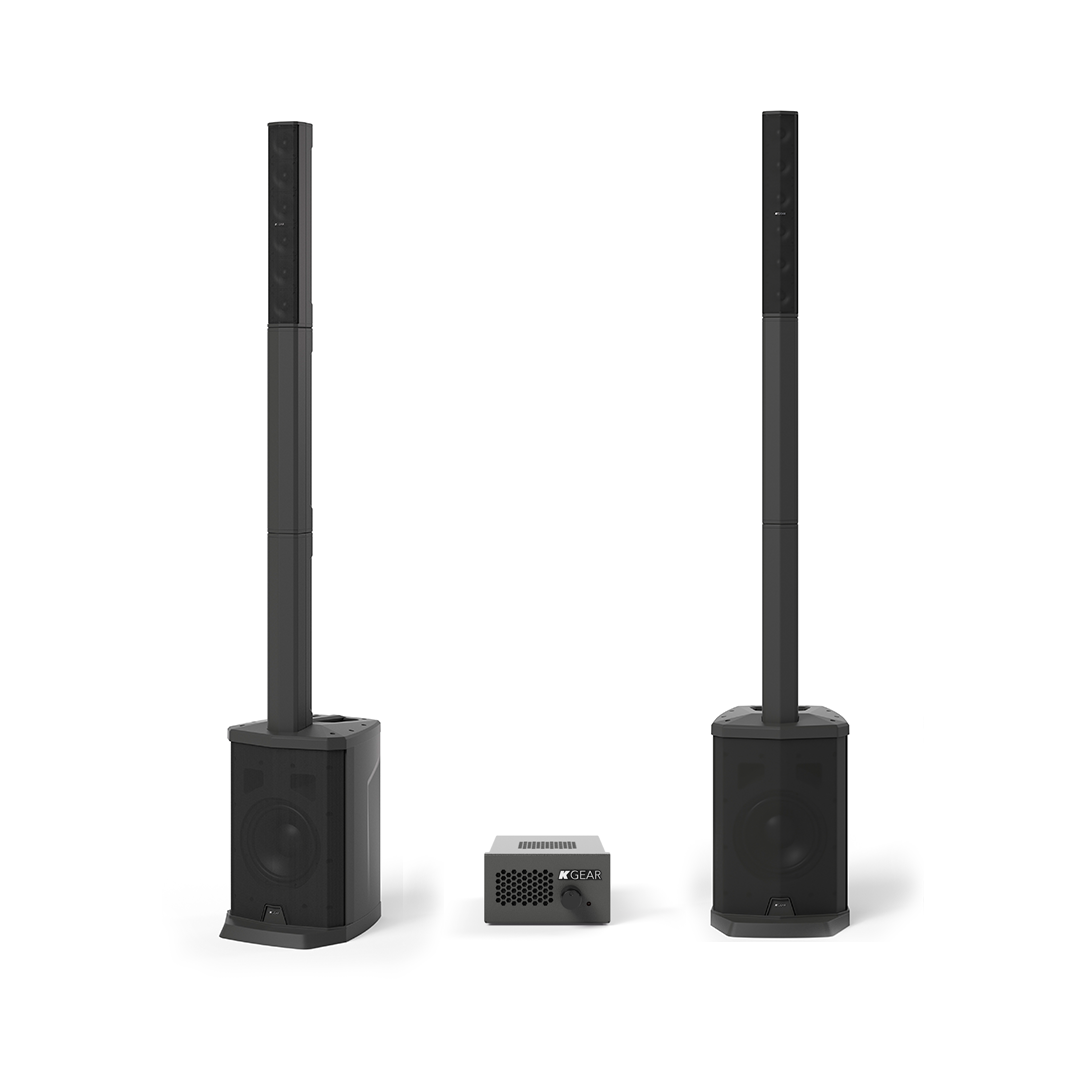

A compact and modular audio KIT designed for permanent installations, combining the KGEAR GA201 Mini Power Amplifier with the GP8 passive column + subwoofer system. Ideal for retail, hospitality, residential, and small commercial environments requiring reliable, high-quality sound distribution.Power Output

  • 2 × 125 W (supports loads down to 2Ω)

System Expandability

  • Up to 6 GA201 amplifiers linkable via 3.5 mm jack
  • Supports scalable multi-speaker configurations

Design & Installation

  • Ultra-compact modular design
  • Up to 6 units (12 channels) mountable in 1RU using G-RACKMINI accessory
  • Designed specifically for permanent installations

Recommended Applications

  • Retail stores, restaurants, cafés
  • Hotels, pubs, bars
  • Residential audio systems

Speaker Compatibility

  • Optimized for KGEAR GF speakers
  • Compatible with GS6 subwoofer
  • Speaker System – GP8 Passive Column + Subwoofer

System Type

  • Passive subwoofer with column line array system

Drivers

  • Subwoofer: 8” woofer
  • Column: 4 × 2.5” ferrite magnet drivers

Performance

  • Frequency response (-10 dB): 45 Hz – 16 kHz
  • Maximum SPL: 108 dB (peak)Coverage: V 40° × H 100°

Power Handling

  • 100 W

Impedance

  • 8 Ω

Connectors

  • 2 × NL2 SpeakON

Physical Specifications

  • Dimensions: 317 × 400 × 1863 mm (12.5 × 15.7 × 73.3 in)Weight: 11.5 kg (25.35 lb)
