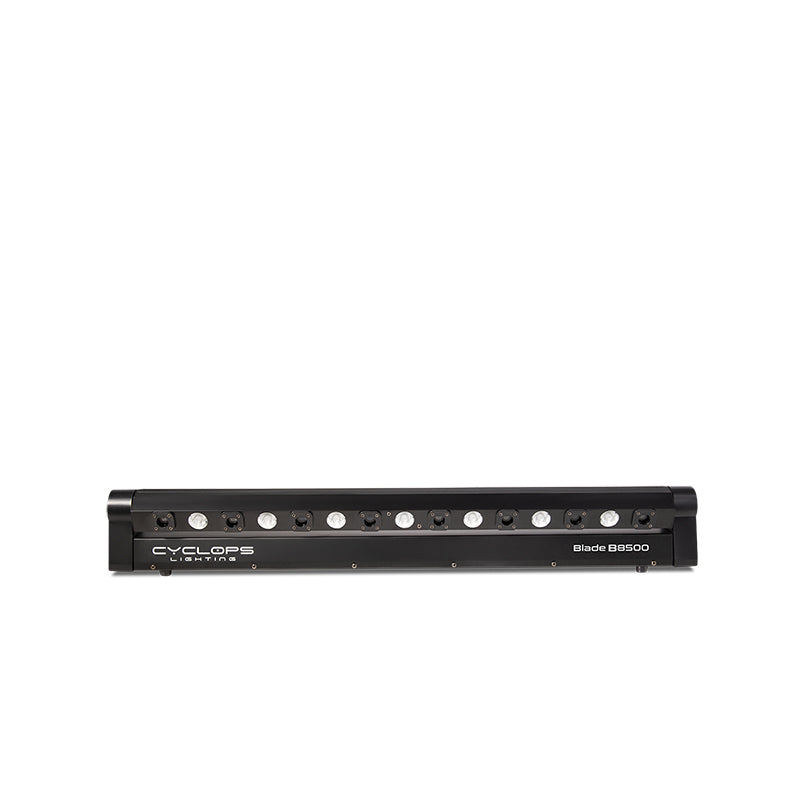

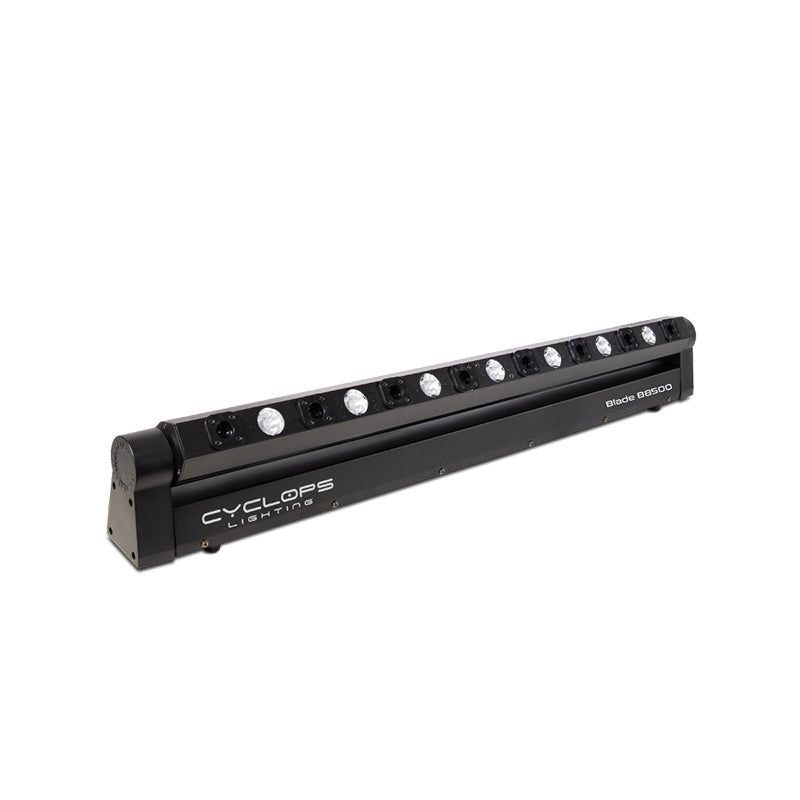

Blade B8500 is a rotating laser bar with 8 beam laser outlets each equipped with a laser diode of 500 mW/450nm bright blue and an additional 7 amber LEDs of 3 watts each with a beam angle of 7° for additional aerial effects. This special laser bar effect creates fans of laser beams along with a warm white beam effect controlled via DMX. It is ideal for stage, clubs, live gigs and show productions.

LASER

• Source: 8 x 500 mW diodes
• Power: 4 watts
• Wavelength: 450nm
• Color: Blue
• Laser safety: Class 3B
• Life expectancy: 2,000 Hrs.
• Modulation: TTL

SCANNER

• Scan system: Stepper motor
• Scan angle: 180°

LED SOURCE

• LED power: 7 x 3 watts amber LEDs
• Color temperature: 2200 K
• LED beam angle: 7°
• LED life expectancy: 50,000 Hrs.

DYNAMIC EFFECTS

• Pixel control
• Electronic strobe: 0-25 Hz
• Built-in dynamic macros

CONTROL & PROGRAMMING

• Control protocols: DMX, Auto, Sound, Master-slave
• Display: LED display with 4 control buttons
• DMX channels: 7, 22 CHs

MOVEMENT

• Tilt: 180°

ELECTRICAL

• Input voltage: AC100-240V/50-60Hz
• Power consumption: 68 watts

CONNECTIONS

• DMX connections: 3 pin XLR In/Out male and female
• Power connections: PowerCon In/Out

PHYSICAL

• Dimensions: 1000 x 84 x 173mm
• Net weight: 6.8 Kg
• Color: Black
• IP rating: 20
• Operating temperature: 10°C/40°C
