Key Features:

• Suitable for smaller venues and events
• Integrated FB4 interface with ILDA, ArtNet, DMX and Auto Mode
• Full-colour professional laser effects, text and graphics
• 2 Watts power output; up to 30 metres projection reach
• Robust construction & dustproof optical compartment

Applications:

The ELITE 2 PRO FB4 is perfect for smaller venues (up to around 1,000 people capacity). The unit’s compact size and multimedia functionality make it ideal for use in large quantities on tours and related projects where vast numbers of lasers need to be used.

Control:

ELITE PRO FB4 models cater to the workflow of lighting designers.

Offering easy control in three different ways:

ELITE PRO FB4 Series lasers includePangolin’s QuickShow software, allowing you to design and create any laser effect you can imagine (from aerial beam effects to text, graphics, and logos, and even fully programmed timeline shows). You can then control those elements from any setup you desire – be it a lighting console, PC, or auto-mode.

What’s in the box:

The ELITE 2 PRO FB4 package includes all of your main accessories.

• Laser projector
• FB4 Media Server
• QuickShow design software
• Ethernet / Artnet control cable
• E-stop safety system and E-stop cables
• Interlocks
• Keys

Specifications:

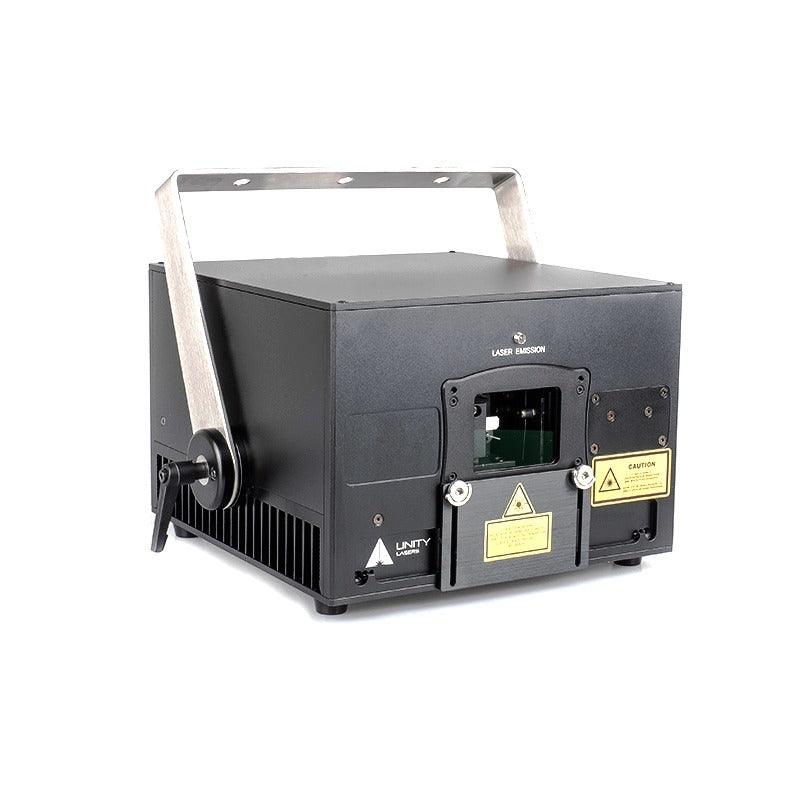

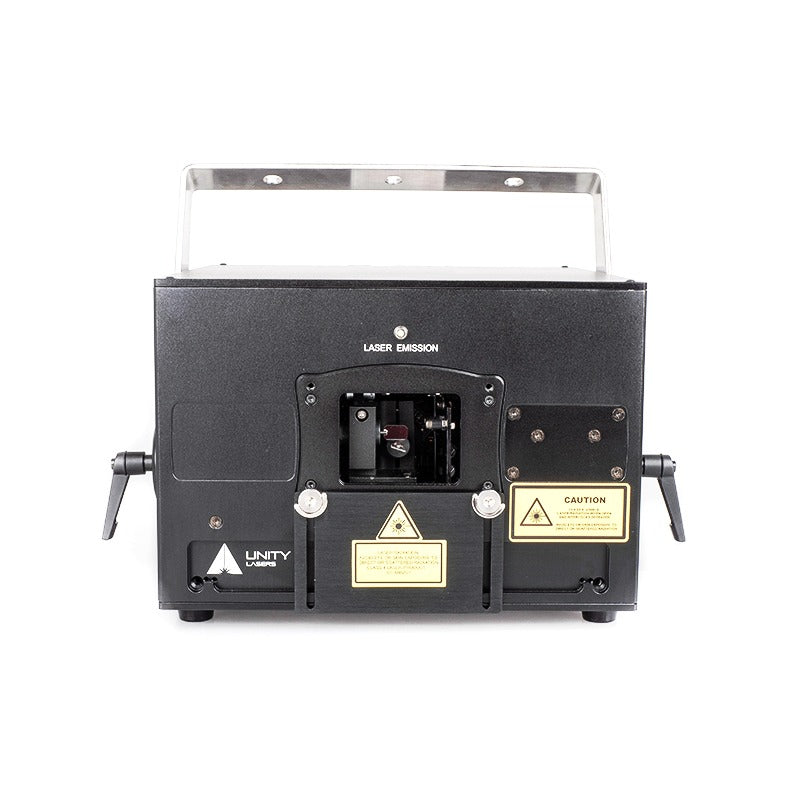

• Product Name: Unity ELITE 2 PRO
• Type Of Laser: Full-colour, Semiconductor diode laser system
• Guaranteed Optical Output: >2,000mW
• Suitable For: Smaller-sized venues and indoor events; laser shows and laser graphic displays
• System Control: Pangolin FB4 [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Auto Mode]
• Scanning System: 30kpps @ 8°
• Scan Angle: max. 50°
• Safety: Fully complies with the latest EN 60825-1 and FDA regulations
• Weight: 8kg
• Package Includes: Power cord, 5M CAT5 cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.
• R | G | B [mW]: 390 | 650 | 1100
• Beam Size [mm]: 2 x 4
• Beam Divergence: <1mrad [Full Angle]
• Modulation: Analog 100kHz
• Power Requirements: 100-230V/50Hz
• Consumption: Max. 150W
• Operation Temperature: 10-40 °C
• Ingress Rating: IP 20
• System Features: All the adjustments, such as power output of each colour, X & Y axes invert, X & Y size and position, etc., are managed digitally by the FB4 control system.Scanning system protection.Daisy chain of emergency STOP signal for multiple system "one-hit" operation.
• Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
• Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
• Dimensions [mm]:Length: 238Width: 246Height: 175
