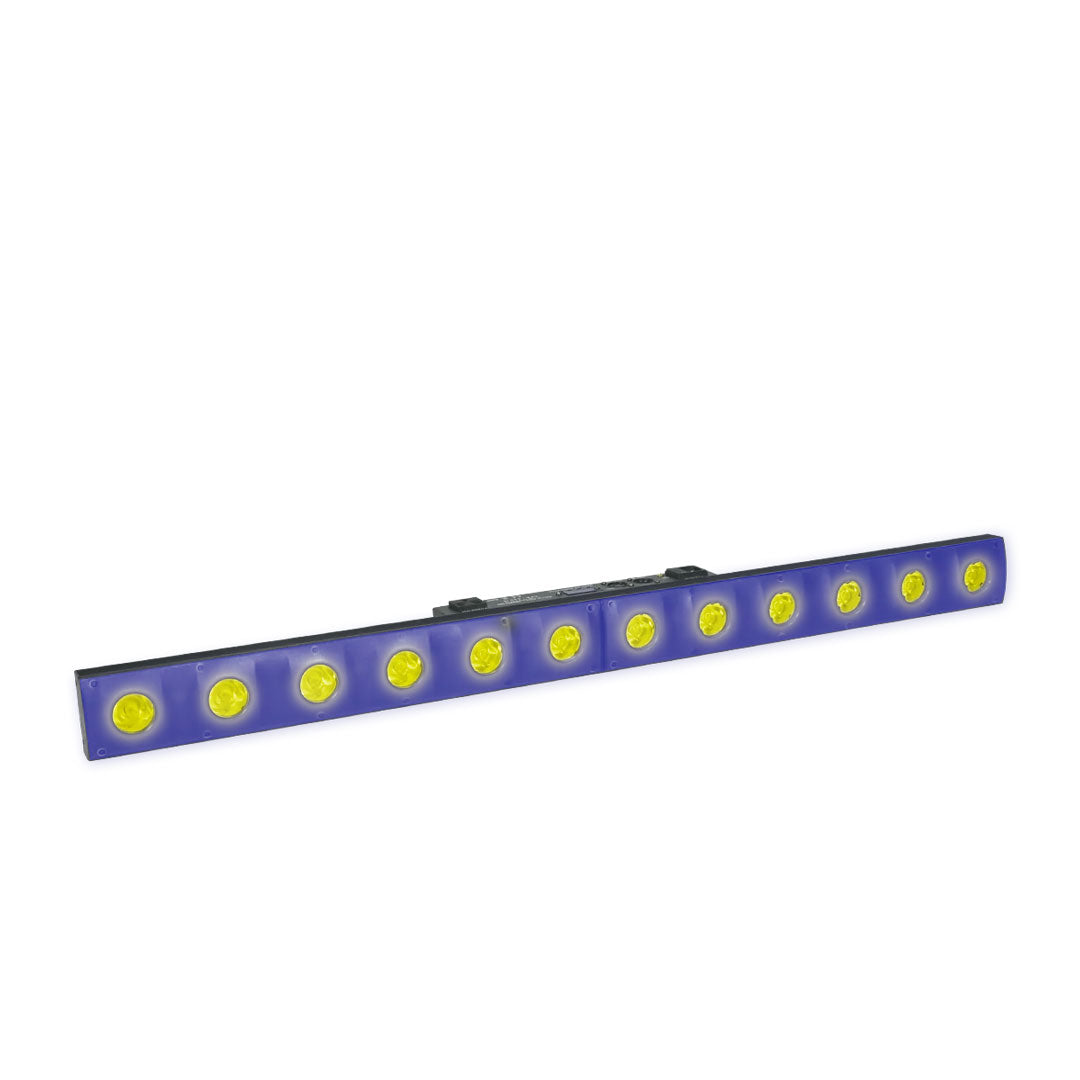

CPX 436IP is an effect LED Bar with 12 x 3 watts LEDs as main beam light with amber color output and 24 RGB pixels x 3 SMD 5050 as back-light. It is a versatile stage lighting fixture that offers RGB pixel mapping in addition to impressive beam effects. Multiple bars can be linked together to create vivid special effects.

SOURCE

• Light source: 12x3 watts Amber LEDs as main beam light +24 Pixel RGB x 3 SMD 5050 as back-light
• LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

• Optics: 4° Beam light
• 80° Backlight

DYNAMIC EFFECTS

• Dimmer: Linear adjustment
• Color mixing: Amber (main light) / RGB (back light)
• Effects: Wash, pixel mapping

CONTROL & PROGRAMMING

• Control protocols: DMX, Sound, Master-Slave, Auto Run
• Control channels: 6, 9, 84, 89 CHs

ELECTRICAL

• Input voltage: AC90-240V 50/60HZ
• Power consumption: 80 watts

 CONNECTIONS

• DMX connections: 3 pin XLR In/Out male and female
• Power Connections: PowerCon In/Out

PHYSICAL

• Dimensions: 940 x 75 x 165mm
• Net weight: 2.7 Kg
• Color: Black
• Housing: Aluminum + Plastic
• IP rating: 20
