ThePixiBar Slim60 models, with 60 RGB LEDs and 20 pixels control, come in both dome (OD), clear (OC), and square (OS) diffusers, ideal for large-scale applications like building exteriors, bridges, shopping centers, and visual art projects. For more compact setups, the PixiBar 48(48 RGB LEDs, 16 pixels control) andPixiBar 12-OS(12 RGB LEDs, 4 pixels control) offer flexibility for stage, club, and outdoor events, with opal or square diffusers for varied lighting effects.

Additionally, the PixiBar 24-OS(24 RGB LEDs, 8 pixels control) provides a half-meter option for installations requiring a balance of brightness and coverage. Each model delivers impressive color mixing and a wide selection of pixel effects, making them perfect for both large installations and more detailed, intricate designs.

SOURCE

• All models useSMD3535 RGB LEDs.
• ThePixiBar Slim 60-OS, Slim 60-OD, and Slim 60-OCmodels have60 LEDs.
• ThePixiBar 48-OD, 48-OS and 48-OCmodels have48 LEDs.
• ThePixiBar 12-OShas12 LEDs.
• ThePixiBar 24-OS has24 LEDs

OPTICAL SYSTEM

• PixiBar Slim 60-OSandPixiBar Slim 60-OChave aSquare diffuser.

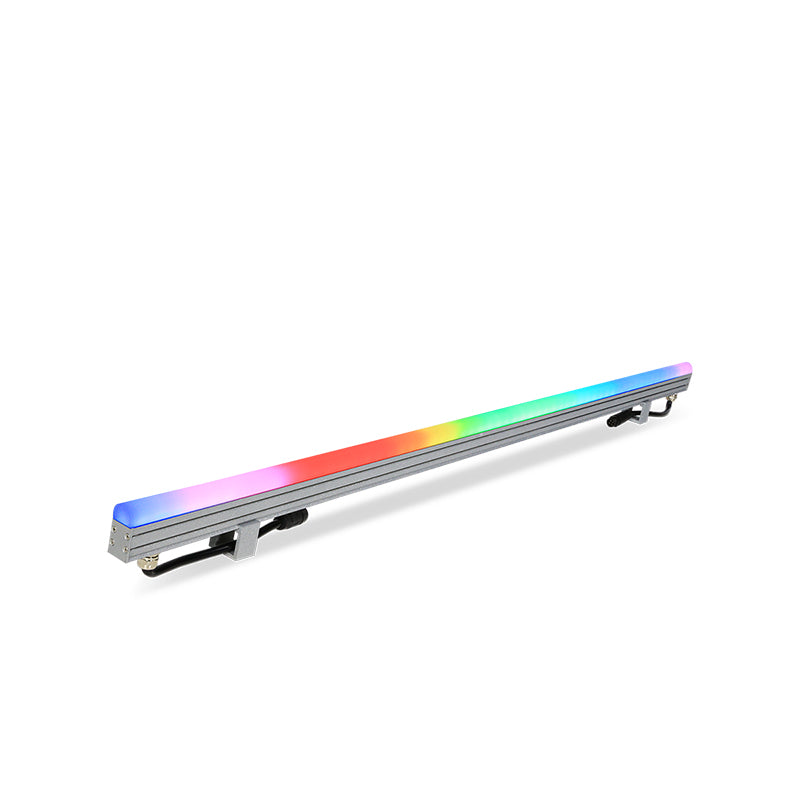

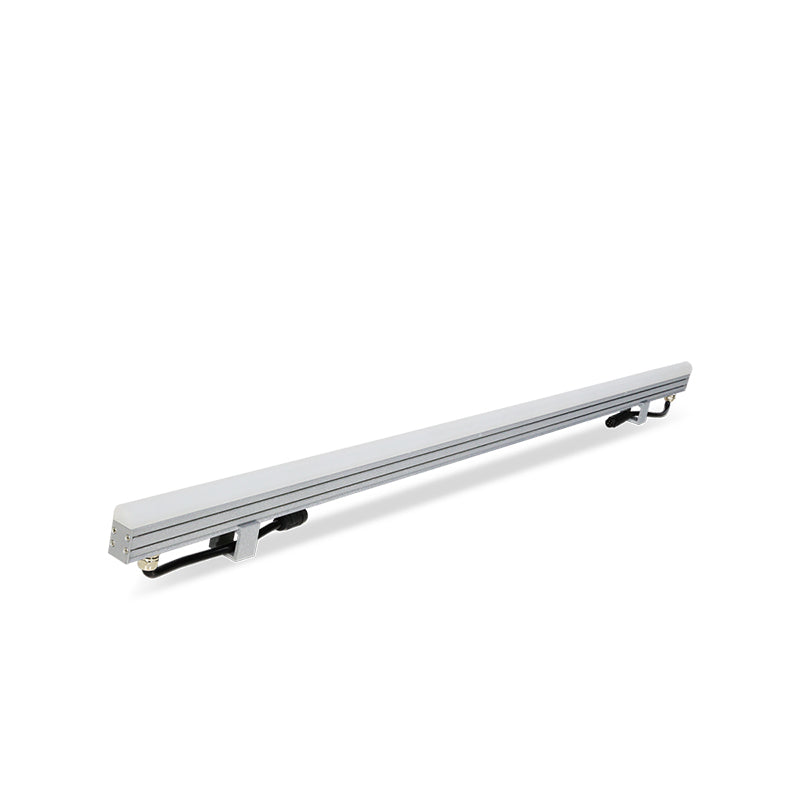

• PixiBar Slim 60-ODandPixiBar 48-ODfeature aDome diffuser.

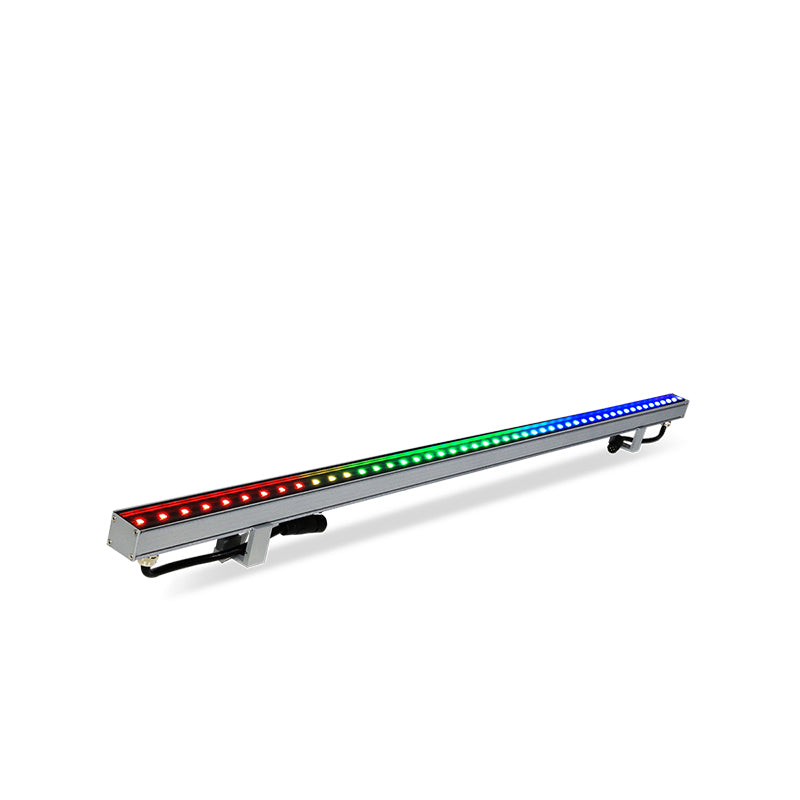

• PixiBar 48-OCuses aClear diffuser.
• PixiBar 12-OS, PixiBar 24-OS,  PixiBar 48-OSandPixiBar Slim 60-OSare equipped with aSquare opal diffuser.
• All models have a120° view angle.

CONTROL & PROGRAMMING

• Pixels Control:
• Color Mixing: All models useRGB.
• Control Protocols: DMX, 44 FPS.
• Control Channels:
• Address Setting: All models set manually.

• 20 pixelsforPixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC, Slim 60-OS.
• 16 pixelsforPixiBar 48-OD, PixiBar 48-OS and48-OC.
• 4 pixelsforPixiBar 12-OS.
• 8 pixelsforPixiBar 24-OS.

• 60 CHsforPixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC, Slim 60-OC.
• 48 CHsforPixiBar 48-OD, 48-OSand48-OC.
• 12 CHsforPixiBar 12-OS.
• 24 CHsforPixiBar 24-OS.

ELECTRICAL

• All models operate with24Vinput voltage.
• Power consumption:

• 10 wattsforPixiBar Slim 60-OS, Slim 60-OD, Slim 60-OC,PixiBar 48-OD,PixiBar 48-OS andPixiBar 48-OC.
• 3 wattsforPixiBar 12-OS.
• 5 wattsforPixiBar 24-OS.

CONNECTIONS

• Power and Data Connection:15cm 5-pin female and maleforPixiBar Slim 60-OD, Slim 60-OC, Slim 60-OS, 48-OD, 48-OS, 48-OC, 12-OS and PixiBar 24-OS
• Cable Entry: All models haveBottomcable entry.

PHYSICAL

• Dimensions:
• Color: All models areSilver.
• IP Rating: All models areIP67.
• Operating Temperature: All models can operate within-40℃ to 50℃.

• PixiBar Slim 60-OD: 1000 x 18 x 38mm (without bracket), 1000 x 28 x 78mm (with bracket).
• PixiBar Slim 60-OC: 1000 x 18 x 21mm (without bracket), 1000 x 28 x 49mm (with bracket).
• PixiBar Slim 60-OS: 1000 x 18 x 38mm (without bracket), 1000 x 28 x 78mm (with bracket).
• PixiBar 48-OD: 1000 x 28 x 50mm (without bracket), 1000 x 35 x 90mm (with bracket).
• PixiBar 48-OS:1000 x 28 x 50mm (without bracket) 1000 x 35 x 90mm (with bracket)
• PixiBar 48-OC: 1000 x 28 x 26mm (without bracket), 1000 x 35 x 66mm (with bracket).
• PixiBar 12-OS: 250 x 28 x 50mm (without bracket), 250 x 35 x 90mm (with bracket).
• PixiBar 24-OS:500 x 28 x 50mm (without bracket), 500 x 35 x 90mm (with bracket)
