PIXITUBE OPAQUE - Versatile DMX-Controllable 3D Lighting Tubes

PIXITUBE OPAQUE - Versatile DMX-Controllable 3D Lighting Tubes

Categories: LED Pixels

SKU: PTO5I24RGB12020100055

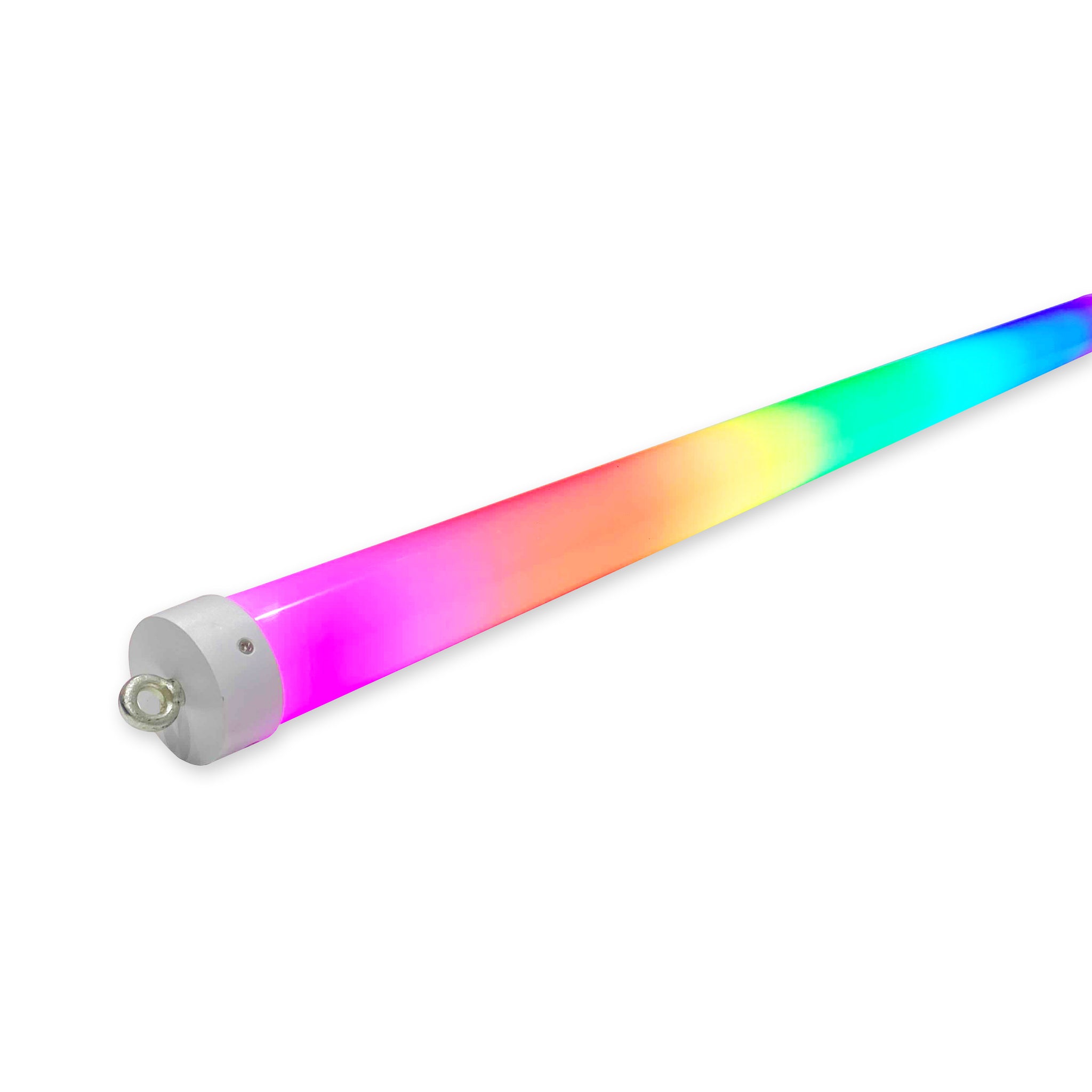

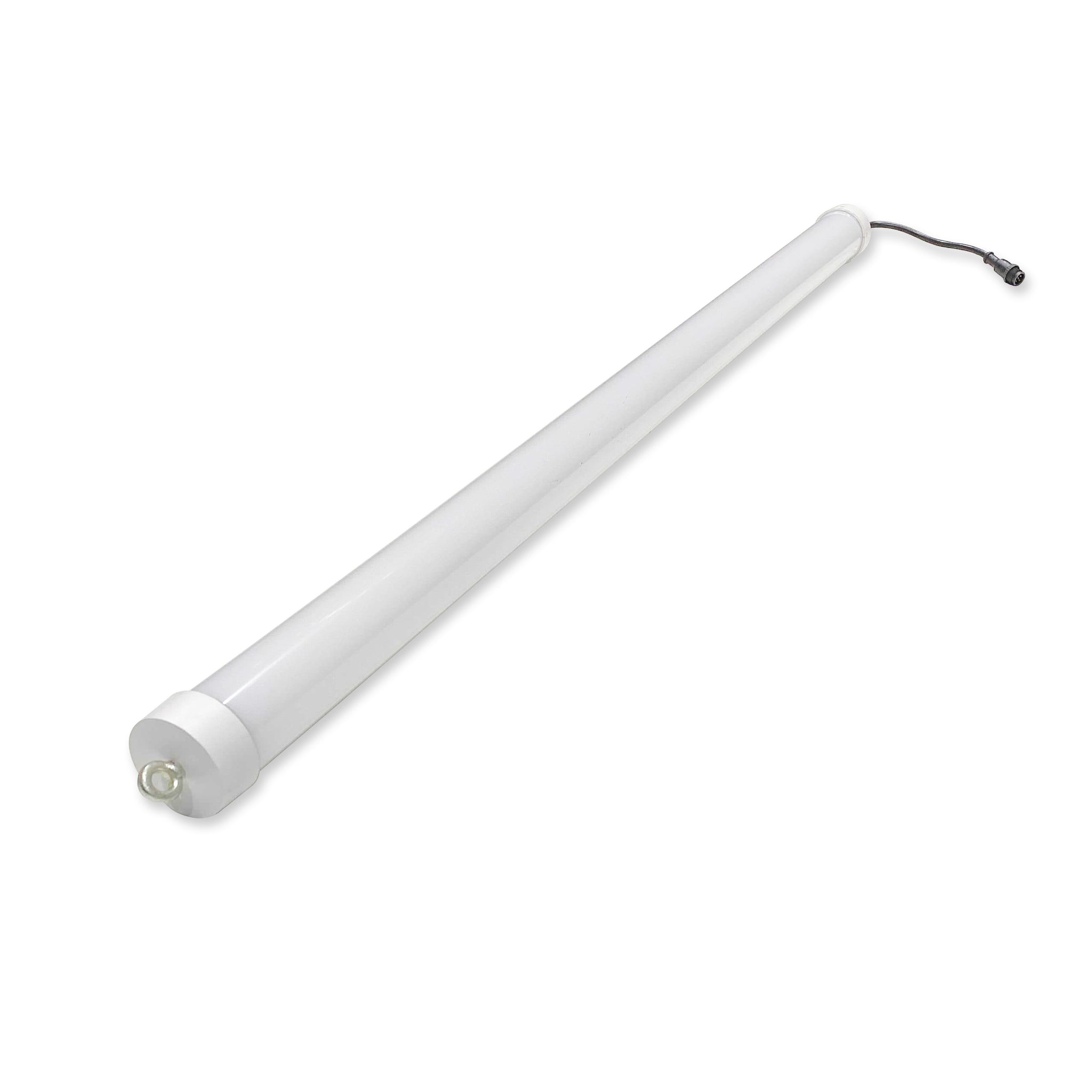

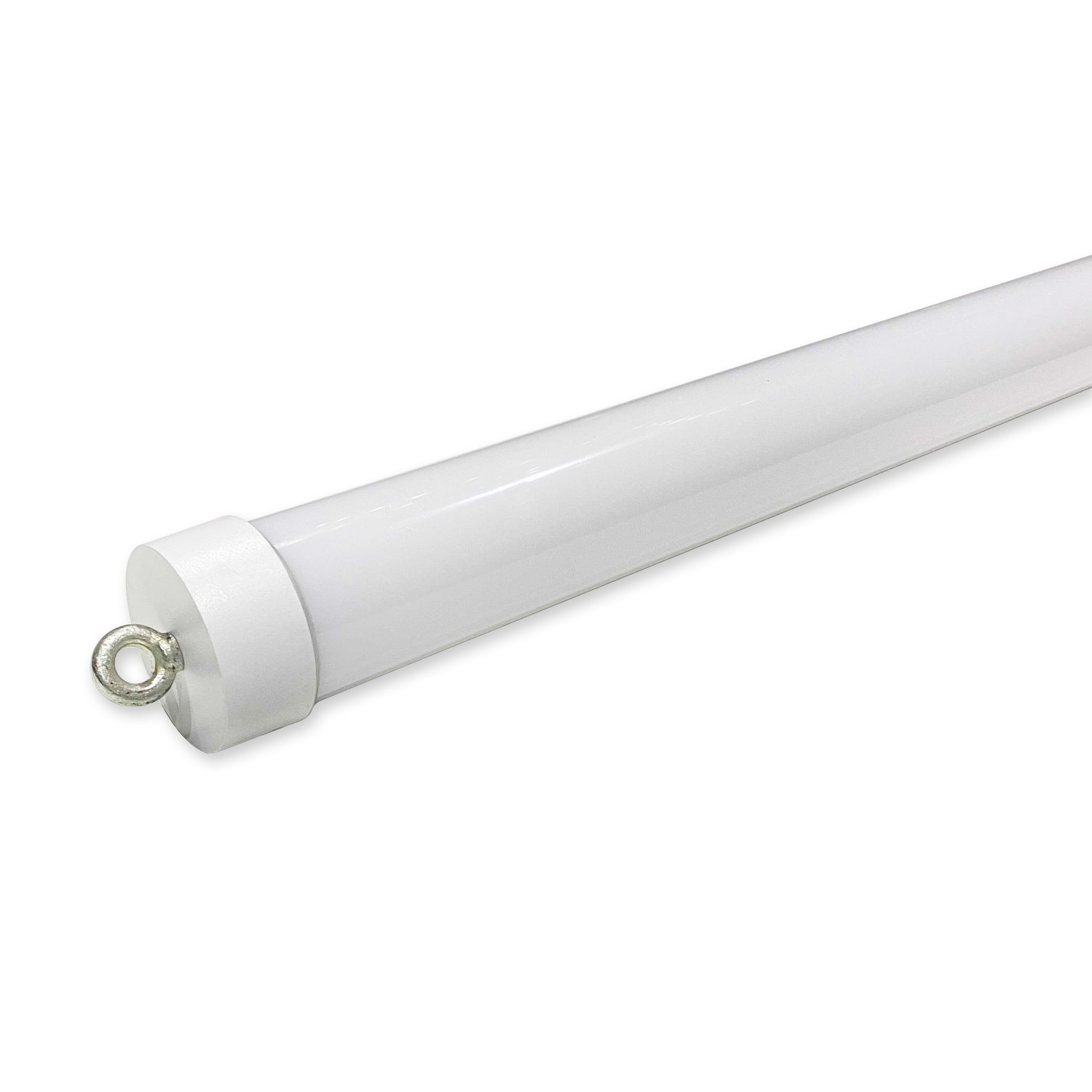

The PixiTube Opaque offers a sophisticated range of DMX-controlled lighting tubes, combining cutting-edge technology with design flexibility to create impactful lighting effects in any indoor environment. Available in four sizes—50cm, 1m, 1.5m, and 2m—each model is equipped with SMD5050 RGB LEDs and delivers 360° illumination for full coverage. The series includes both standard versions and the IL (Integration Link) models, which are specifically designed for seamless tube-to-tube connectivity.

Variations: PIXITUBE OPAQUE 240-I

PIXITUBE OPAQUE 120-I
PIXITUBE OPAQUE 180-I
PIXITUBE OPAQUE 240-I
PIXITUBE OPAQUE 60-IL
PIXITUBE OPAQUE 120-IL
PIXITUBE OPAQUE 180-IL
PIXITUBE OPAQUE 240-IL

Product variants

Low stock, only 2 items left.

Need Help:

Pairs well with

PIXITUBE OPAQUE - Versatile DMX-Controllable 3D Lighting Tubes

PIXITUBE OPAQUE 240-I

Dhs.293.69

Technical Specifications

Description

Each PixiTube Opaque model featurespixel control options, ranging from 10 to 40 pixels, allowing for detailed and fluid light programming.In addition, theILversion provides integrated connection points at each end of the tube, enabling multiple units to be easily linked together. This unique feature ensures that the tubes can form continuous lighting grids, flexible patterns, or complex shapes, all controlled via a single DMX controller. The interlocking system simplifies the installation process, minimizing the need for additional hardware while maintaining a clean, professional finish.

Ideal for a wide variety of applications, includinggyms, clubs, stages, and architectural installations, the PixiTube Opaque Seriesallows for both suspended grid arrangements and horizontal wall placements.Whether you’re designing ambient lightscapes, immersive visual effects, or stage lighting setups, theILversions ensure maximum scalability and creative control by allowing you to combine multiple tubes into custom configurations.

The PixiTube Opaque Series—now with IL connectivity—delivers unparalleled versatility, ease of installation, and vibrant illumination, providing a high-performance solution for any lighting.

SOURCE

Light Source: SMD5050 RGB LEDs

OPTICAL SYSTEM

Opaque diffuser with a 360° light view for full coverage

CONTROL & PROGRAMMING

Color Mixing: RGB, providing a wide range of colors
Control Protocols: DMX, enabling advanced light programming
Control Channels: Varies by model (30 CHs for 60-I/IL, 60 CHs for 120-I/IL, 90 CHs for 180-I/IL and to 120 CHs for 240-I/IL)
Address Settings: Manual for easy setup

CONNECTIONS

Power & Data Connection: 15cm 5 Pin Male Connection, simplifying installation and connection

ELECTRICAL

Input voltage:24V
Power consumption:5 watts for 60-I/IL, 10 watts for 120-I/IL, 15 watts for 180-I/IL, 20 watts for 240-I/IL

PHYSICAL

Diameter: 55mm
Length:500mm for 60-I/IL, 1000mm for 120-I/IL, 1500mm for 180-I/IL, 2000mm for 240-I/IL
IP Rating: 20, suitable for indoor use
Operating Temperature: -30℃ to 60℃, ensuring reliable performance in various environments
