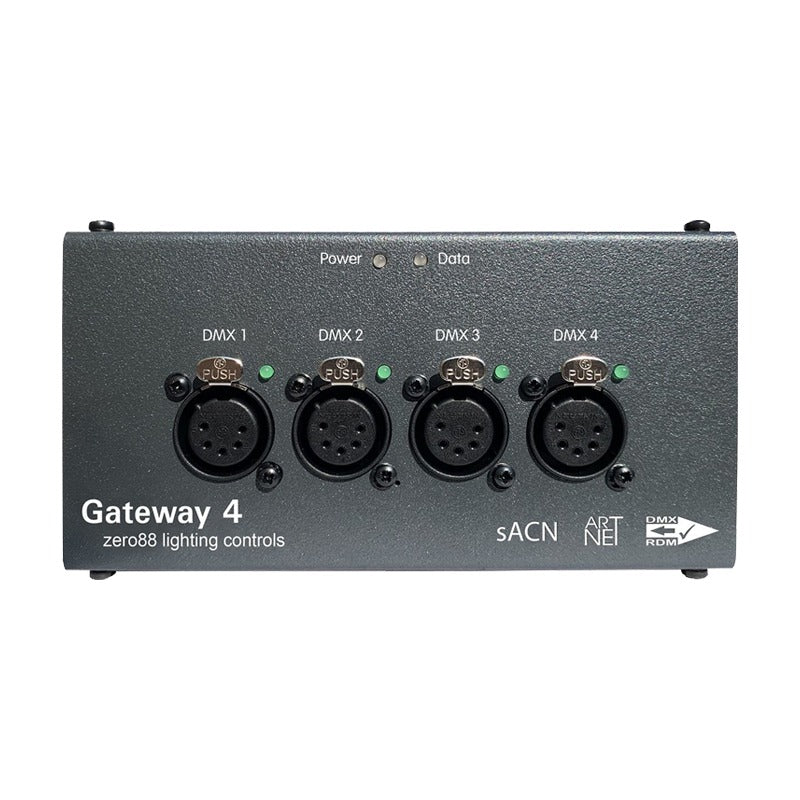

Gateway 4 is fully compatible with the latest protocols (sACN, Art-Net 4, LLRP, DMX & RDM), ensuring your distribution network is ready to meet your future demands. Gateway 4 is appropriate for permanent installations or as a flexible, adaptable rental & touring tool due to it’s compact, rugged and scratch-resistant metal design.

When combined with any ZerOS console, Gateway 4 provides on-board configuration from the console, for a truly integrated system. Alternatively, the unit can be configured through an internal web server or via optional control software. DHCP enables automatic IP addressing; static IP and LLRP negotiation are also supported.

The input is an EtherCON / RJ45 connector. The four outputs are protected against electrical faults. All connectors are Neutrik parts. Gateway 4 can be powered via “Power over Ethernet” (PoE) or from an external power supply (not included).

Gateway 4 is ideal for use alongside Splitter 8 and Gateway 8 to build a larger data distribution system.

Key Features:

• 10/100BaseT Ethernet input
• 4 electrically protected outputs
• Neutrik connectors
• sACN, Art-Net, LLRP, DMX & RDM compatible
• M10 threaded mounting holes on top and rear
• Safety bond connection
• DHCP or static IP
• PoE (IEEE 802.3af-2003) or DC power (XLR4 connector)
• Optional configuration from ZerOS consoles
• Configuration via Web Browser
• 3 year warranty
• CE compliant to all relevant standards
