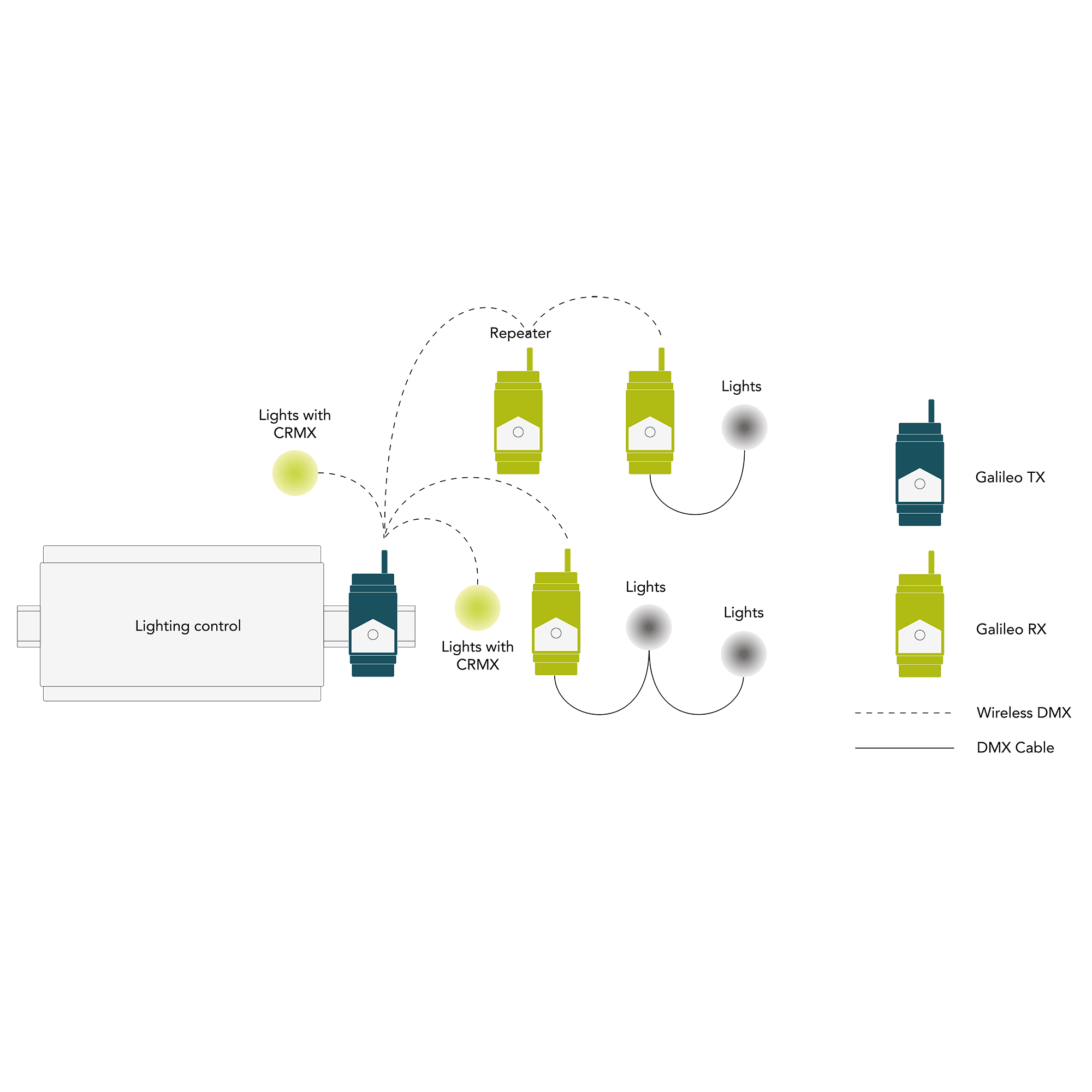

Based on our trusted CRMX technology, Galileo brings you all the advanced features such as Cognitive Coexistence, 5ms fixed latency, 128 bit encryption, error correction and much more. Multiple Galileo units can be combined to transmit several DMX universes, allowing easy system expansion. It is also compatible with all other CRMX and W-DMX products available on the market. Monitoring and configuration can easily be done as RDM is supported in all Galileo devices, as well as Bluetooth connectivity for configuration.

RepeaterTo make planning easier, a repeater functionality can be added to any Galileo RX device using an in-app upgrade. This allows for quick improvements of the signal to places where reception needs an extra boost. The improved repeater functionality also allows for multiple repeater hops, providing coverage over vast distances.

Linking KeyWith user defined security keys the ability to clone transmitters is now at your fingertips. This feature allows for improved redundancy and reduces time for troubleshooting or repairs.

RDMUsing RDM (Remote Device Management) available in Galileo you are able to configure and monitor fixtures and receiver devices, both wired and wireless, using any RDM controller. At a later stage this can also be done with the CRMX Toolbox App using the Bluetooth connectivity.

Key Features:

• Single Universe Transmitter
• Transmit CRMX Classic or W-DMX G3 / G4S
• DMX512-A and RDM support
• Bluetooth configuration via App
• RDM proxy
• DIN-rail form factor

Technical Specifications:

• DMX / RDM
• CRMX Classic
• W-DMX G3 / G4S
• Bluetooth 5.0

• 2402-2480 MHz frequency
• 7 – 280 mW output power
• 5ms latency
• 128-bit encryption
• Forward Error Correction

• DIN-rail 2 module width
• RP-SMA antenna connector
• 12-24 VDC/VAC pluggable screw terminal
• DMX/RDM 3 pin pluggable screw terminal

• CE, FCC, IC, NRTL (MET), KC, MIC, UKCA
