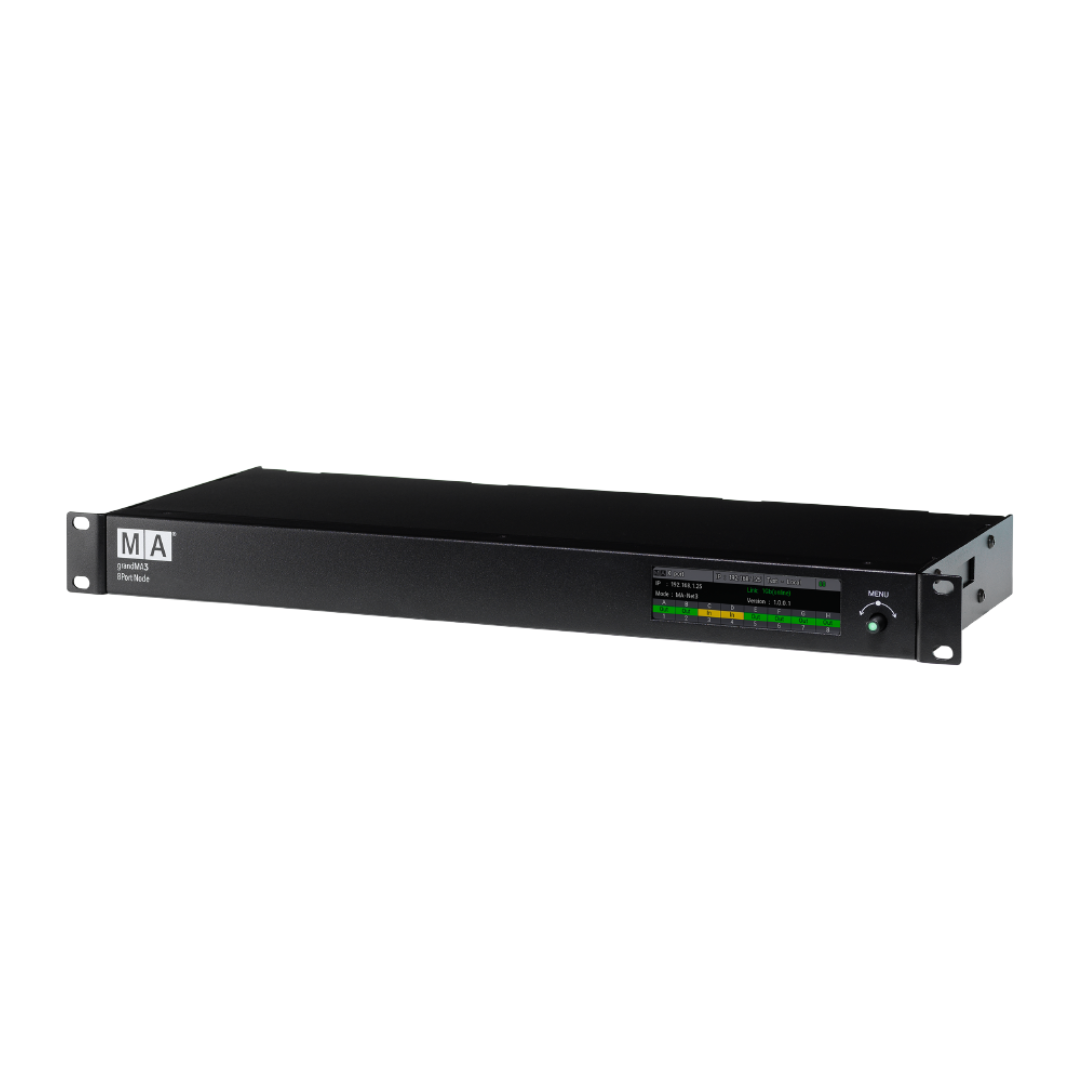

Every grandMA3 xPort Node is capable of handling MA-Net3, MA-Net2, sACN and Art-Net data and is fully RDM compliant. A 3.9″ color display on the front face allows for simple configuration and provides a quick overview of the status of each Node. All grandMA3 xPort Nodes are equipped with a powerful processor and a 1 000 Mbit/s Ethernet connection to ensure the most reliable and stable Ethernet to DMX and vice versa conversion. The grandMA3 xPort Nodes are high quality solutions that can handle busy Ethernet connections without ditching DMX or RDM messages.

Technical Specifications

Parameters:

• None

Parameters Mode2:

• None

Operating voltage/ Supply voltage:

• AC 100 – 240 V; 50/60 Hz

Power:

• 15 VA

Operating Temperature:

• 0 °C up to 40 °C

Dimensions:

• 482 x 189 x 43 mm (width x depth x height)

Net weight:

• 2 kg

Connectors:

• 1 x powerCON
• 1 x etherCON/RJ45
• 8 x DMX512-A Out (5pin XLR female)
• 1 x USB 2.0 (type A)
