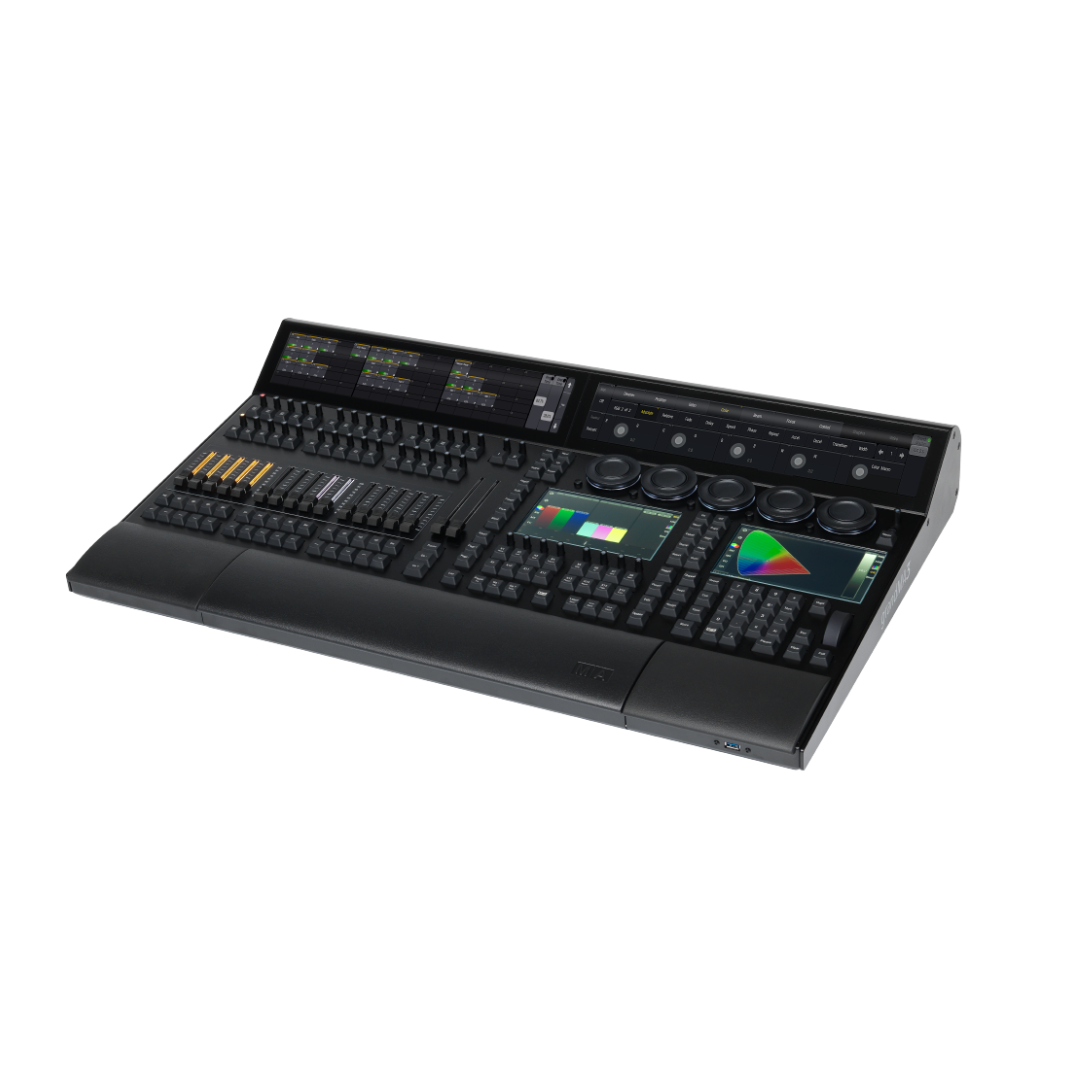

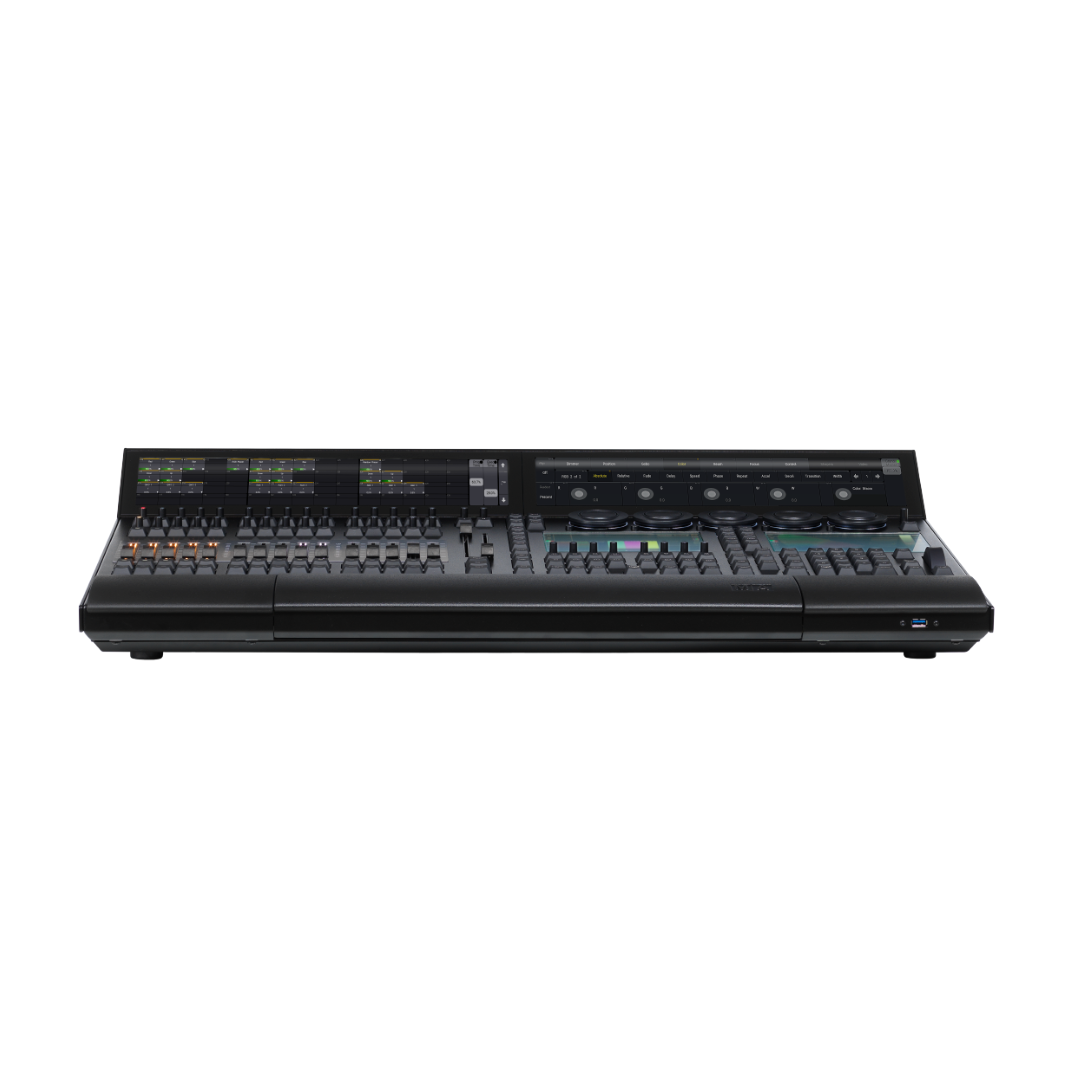

The grandMA3 light CRV console offers a powerful and compact lighting control solution with 60 physical playbacks, 16 assignable x-keys, and a dedicated master area. It’s compatible with both grandMA2 and grandMA3 software and supports up to 250,000 parameters, making it suitable for a wide range of applications. The console features a user-friendly interface with dual encoders and color-coded faders, allowing for efficient and precise control.

Features

• Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
• 6 DMX outputs, 1 DMX input
• 2 internal letterbox multi-touch screens
• 2 internal multi-touch command screens
• 4 external multi-touch screens can be connected
• 41 rotary RGB backlit encoder
• 5 backlit dual encoders
• 15 backlit motorized 60 mm faders
• 60 separate playbacks
• 16 assignable x-keys
• Integrated keyboard drawer
• Built-in uninterruptible power supply (UPS)
• 3 etherCON connectors, 6 USB connectors
• 2 backlit motorized A/B faders 100 mm
• Individually backlit and dimmable silent (clickless) keys

Technical Specifications

PARAMETERS

• 16 384 (HTP/LTP)

PARAMETERS MODE2

• 4 096 (HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 300 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

• 811 x 539 x 169 mm (width x depth x height, drawer closed)
• 811 x 644 x 169 mm (width x depth x height, drawer opened)

NET WEIGHT

• 25 kg

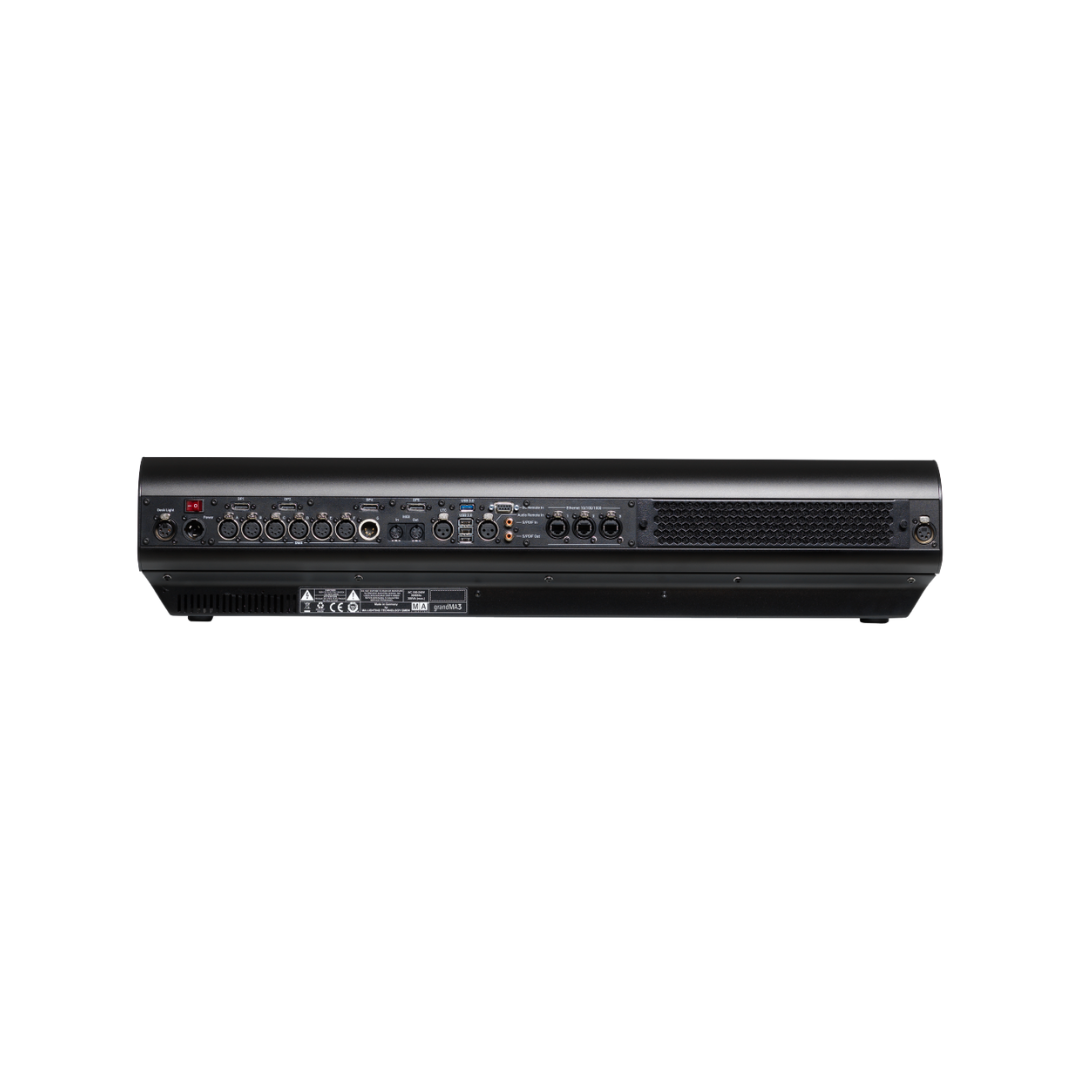

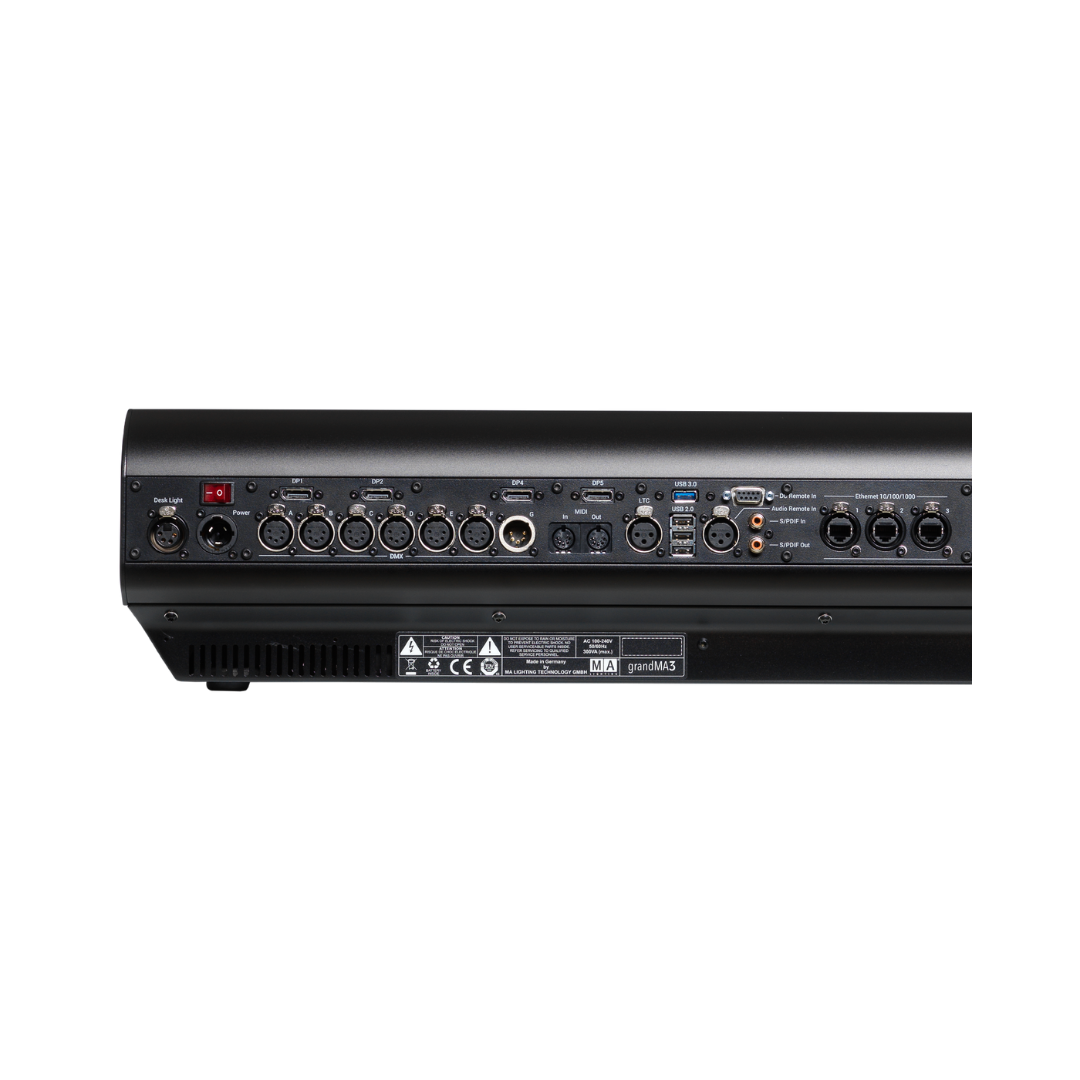

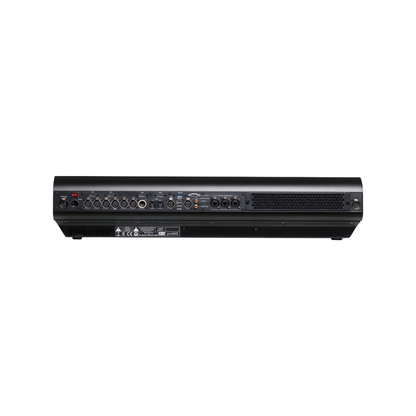

CONNECTORS

• 1 x powerCON TRUE1
• 3 x etherCON/RJ45
• 6 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (3pin XLR female)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 4 x DisplayPort 1.2 for external screens
• 2 x S/PDIF In and Out
• 3 x USB 2.0 (type A)
• 3 x USB 3.0 (type A)
• 2 x LED desk light (4pin XLR female)
