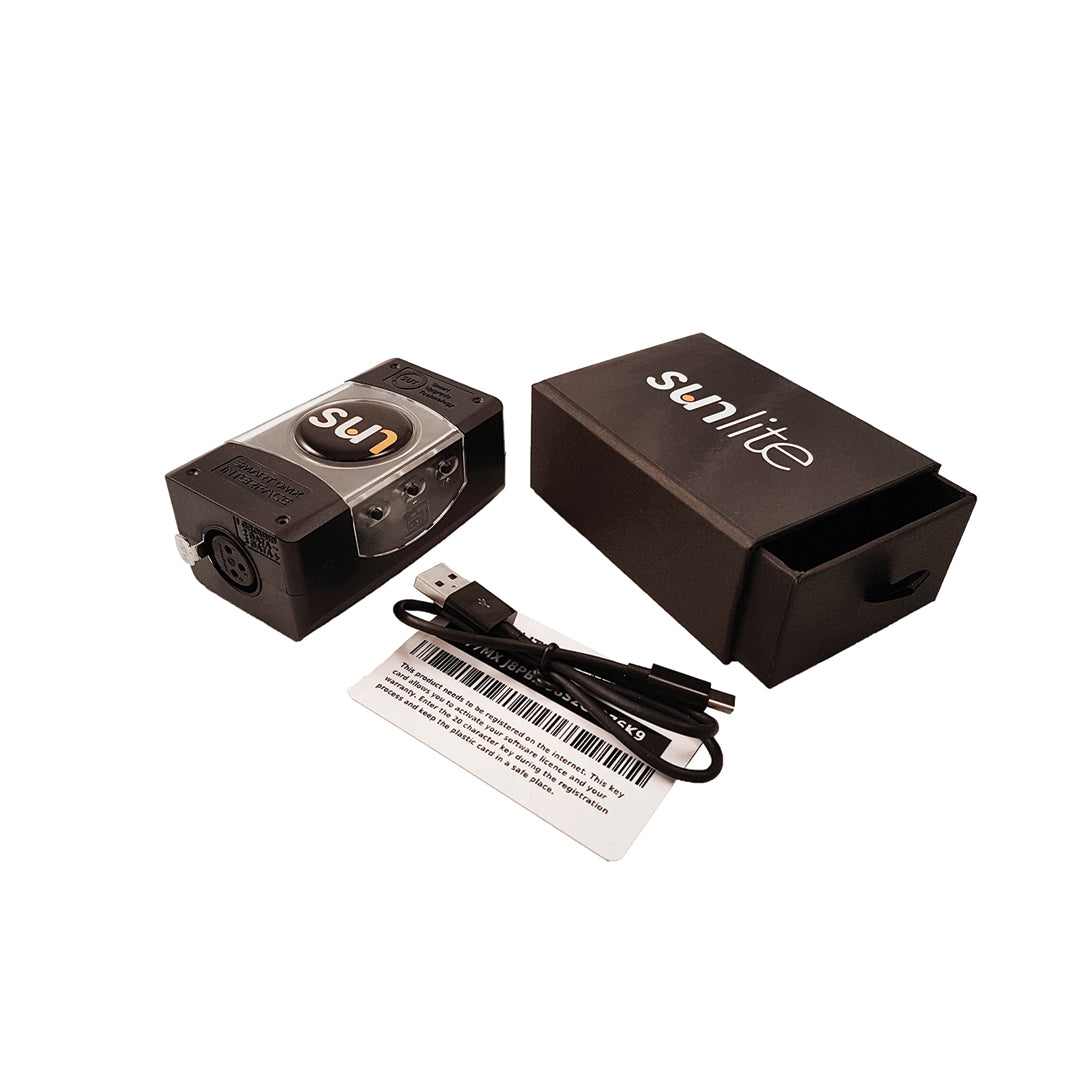

Featuring 256 DMX channels, the new SUNLITE-BC includes SUT (Smart Upgrade Technology) and is up-gradable to 512 channels or more using optional Art-Net universes. Compatible with Sunlite Suite 2 and 3 running in Express Mode, with the option to upgrade to Full Mode, the Sunlite-BC offers the most affordable way to access the power of Sunlite. Each interface comes with internal flash standalone memory, allowing for simple programmed scenes to be run without a computer.

Key Features

• USB Type-C connection
• Compatible with Sunlite Suite 2 & 3 www.sunlitepro.com/download.htm
• 256 DMX512 channels in live mode *
• 128 DMX512 channels in stand alone *
• Buttons for changing scenes and dimmer in standalone mode

Technical Data

• Input Power: 5-5.5V DC 0.6A
• Output Protocol: DMX512 256 channels Live * 128 channels Standalone *
• Software Compatability: Sunlite Suite 3 Express Sunlite Suite 2 Express ESA2 Other packages via SUT *
• Connections: USB Type-C, XLR3
• Memory: internal flash
• Environment: IP20. 0°C - 50°C
• Buttons: 2 buttons to change scene + 1 activate dimmer
• Dimensions Complete Package: 90x50x37mm 102x73x45mm
• OS Requirements Windows 7/8/10 64bit
• Standards EC, EMC, ROHS
