Technical Specifications

Description
  • Light source: 18 x 12 watts, 4 in 1 RGBW LEDs
  • LED life expectancy: 50,000 Hrs.
  • Beam angle: 25°
  • Light output: 7000 Lux @ 2m @ 10°
  • Color mixing: RGBW
  • Dimmer: 4 selectable dimming curves
  • Strobe and fade effect
  • Built-in color and dynamic macros
  • Display : TFT displayer with 4 buttons
  • Control protocols: DMX, Master-Slave, Auto Run
  • Control channels: 3, 4, 6, 8, 11 CHs



  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 230 watts

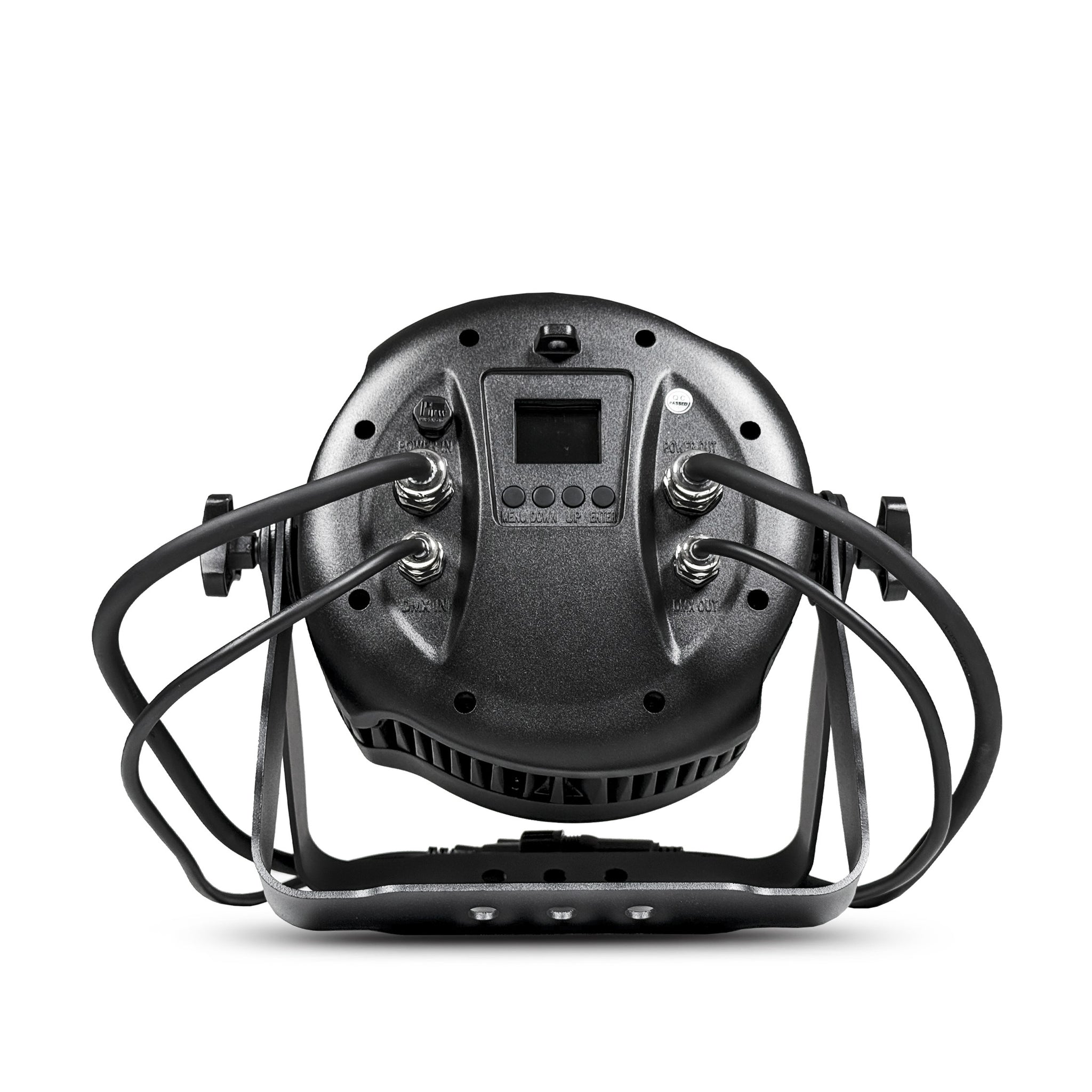

  • DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out cable, screw lock connectors

 PHYSICAL

  • Dimensions: 280.32 x 142.56 x 288.28mm
  • Net weight: 5 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45° C
