MA Lighting grandMA3 4Port Node DIN-Rail

MA Lighting grandMA3 4Port Node DIN-Rail

Name: MA Lighting grandMA3 4Port Node DIN-Rail
Brand: MA Lighting
SKU: 4011702
Price: 7467.60 AED
Availability: OutOfStock

Brand: MA Lighting

Categories: Art-Net Nodes

SKU: 4011702

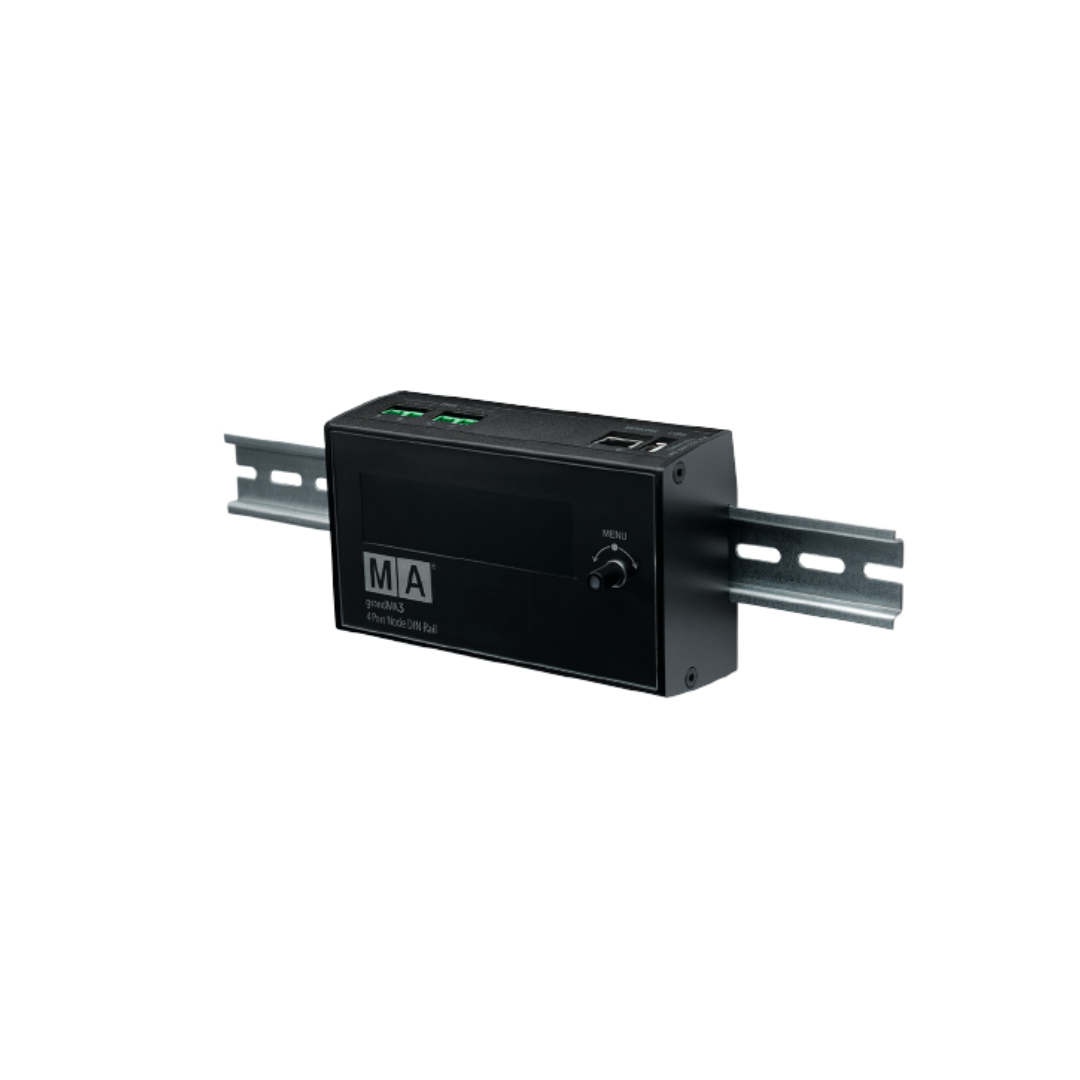

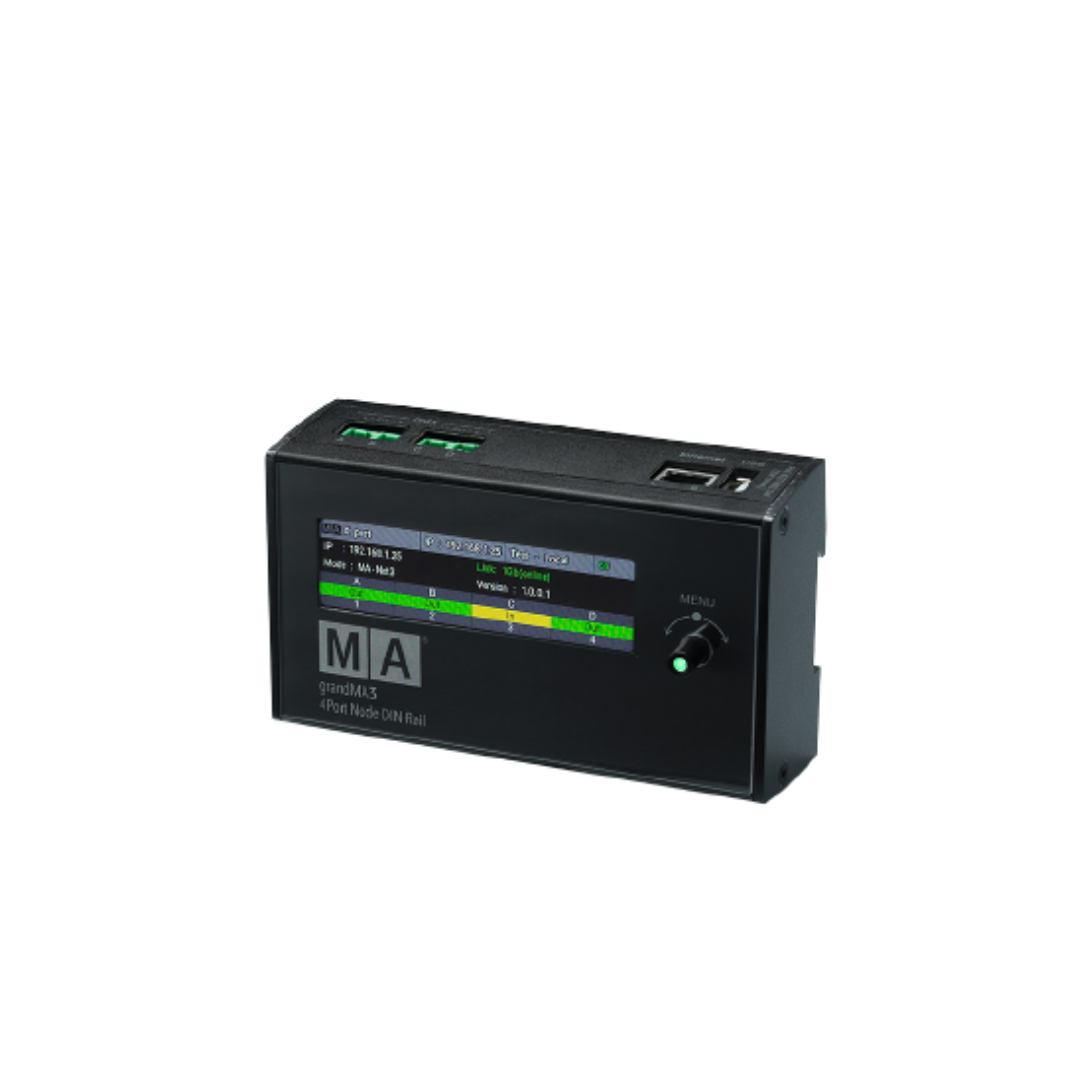

The grandMA3 4Port Node DIN-Rail is a tailor-made and cost-effective solution for converting mid-sized data volumes from Ethernet to DMX. The Node synchronously outputs 4 DMX universes from any grandMA3 session and can be entirely powered by PoE (Power over Ethernet). It is perfectly suited for any kind of fixed installation due to its modern and easy-to-mount DIN rail housing design

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

Technical Specifications

Parameters:

None

Parameters Mode2:

None

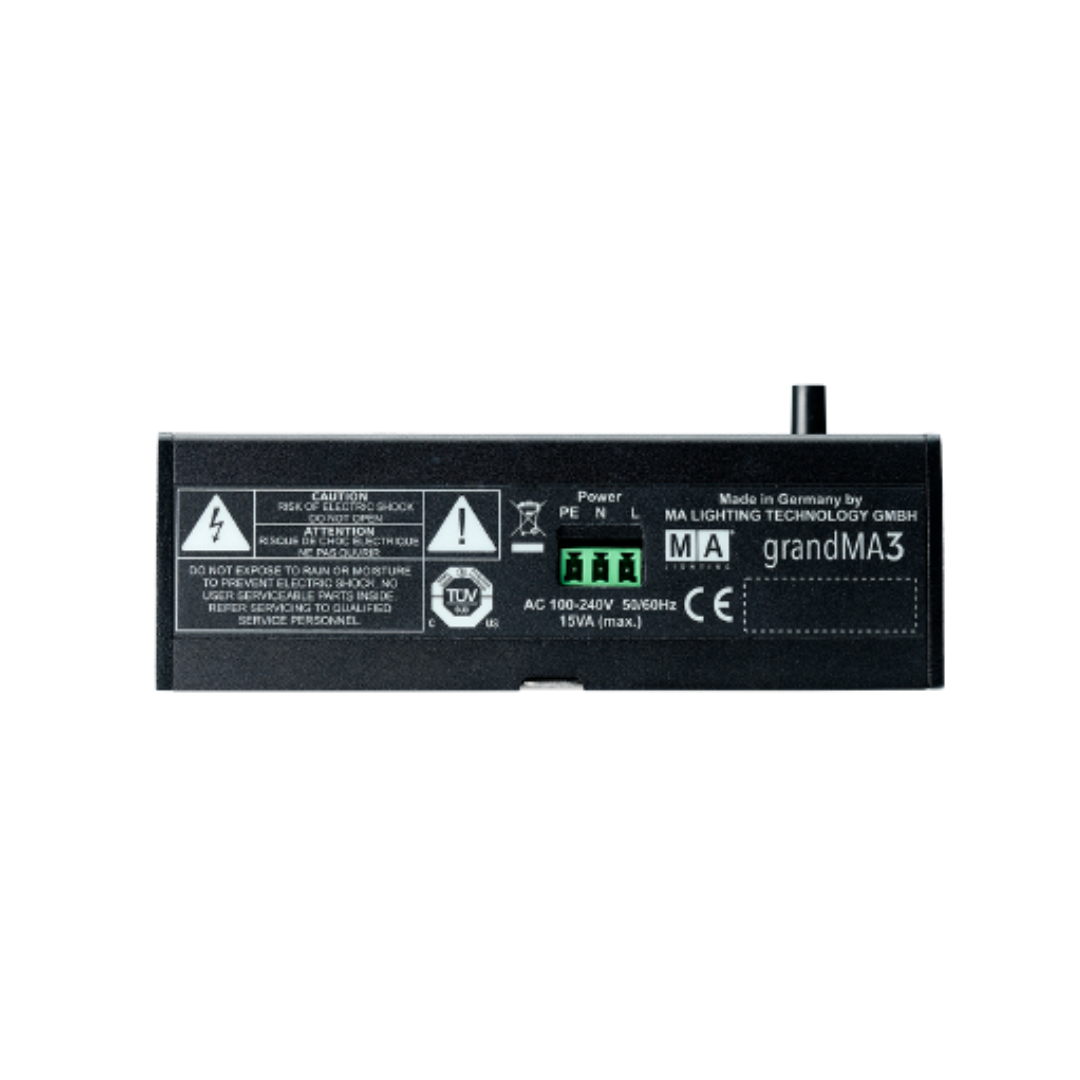

Operating voltage/ Supply voltage:

AC 100 - 240 V; 50/60 Hz
PoE (IEEE 802.3af; 48 V DC/max. 12 W)

Power:

15 VA

Operating Temperature:

-10 °C up to 50 °C

Dimensions:

150 x 50 x 90 mm (width x depth x height)

Net weight:

1 kg

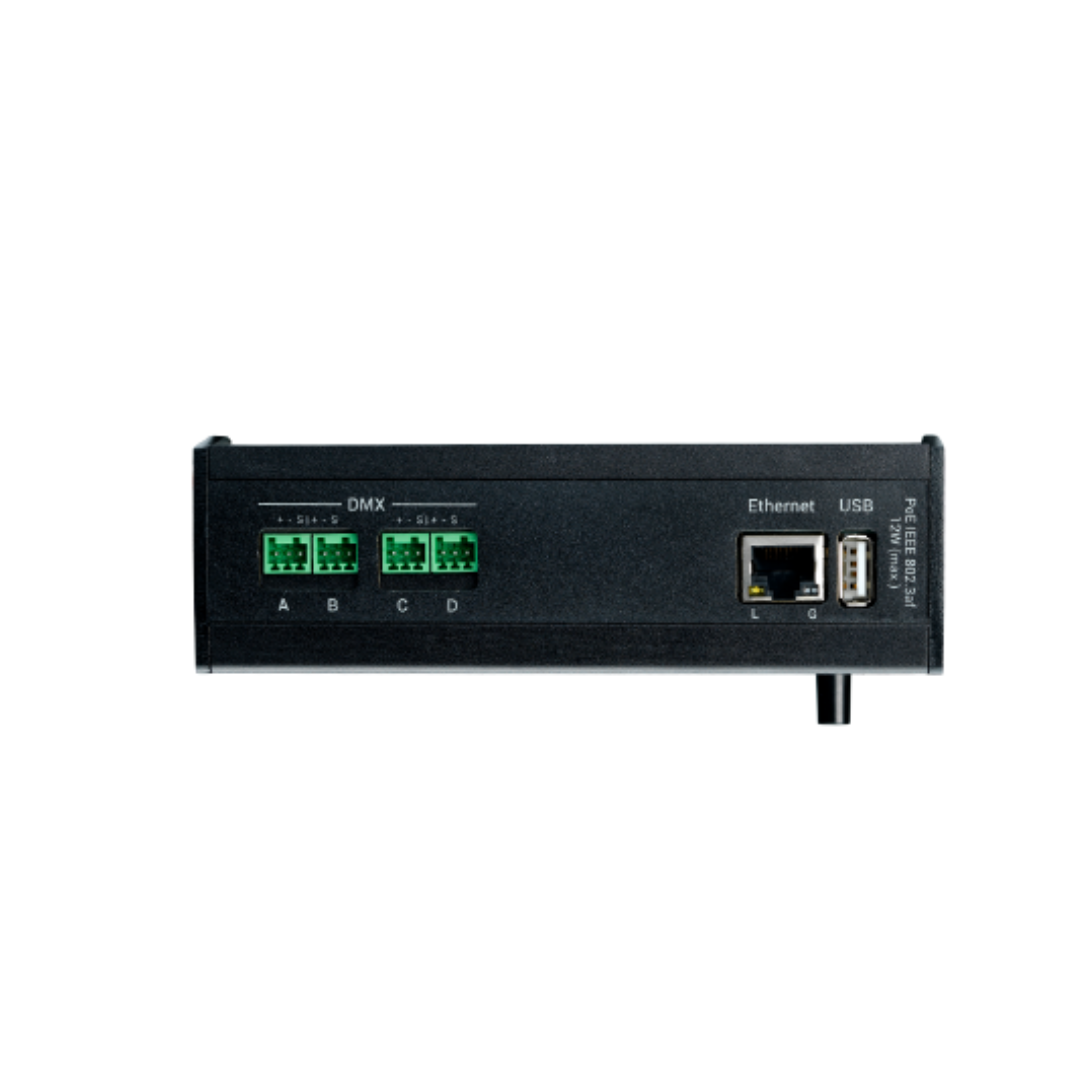

Connectors:

1 x Power (3pin PCB connector)
1 x Ethernet/RJ45
4 x DMX512-A Out (3pin PCB connector)
1 x USB 2.0 (type A)

Downloads

Datasheet_MA_Lighting_grandMA3_4Port_Node_DIN-Rail.pdf
