MA Lighting grandMA3 processing units

Dhs.33,096.07

Brand: MA Lighting

Categories: grandMA3

SKU: 4010510

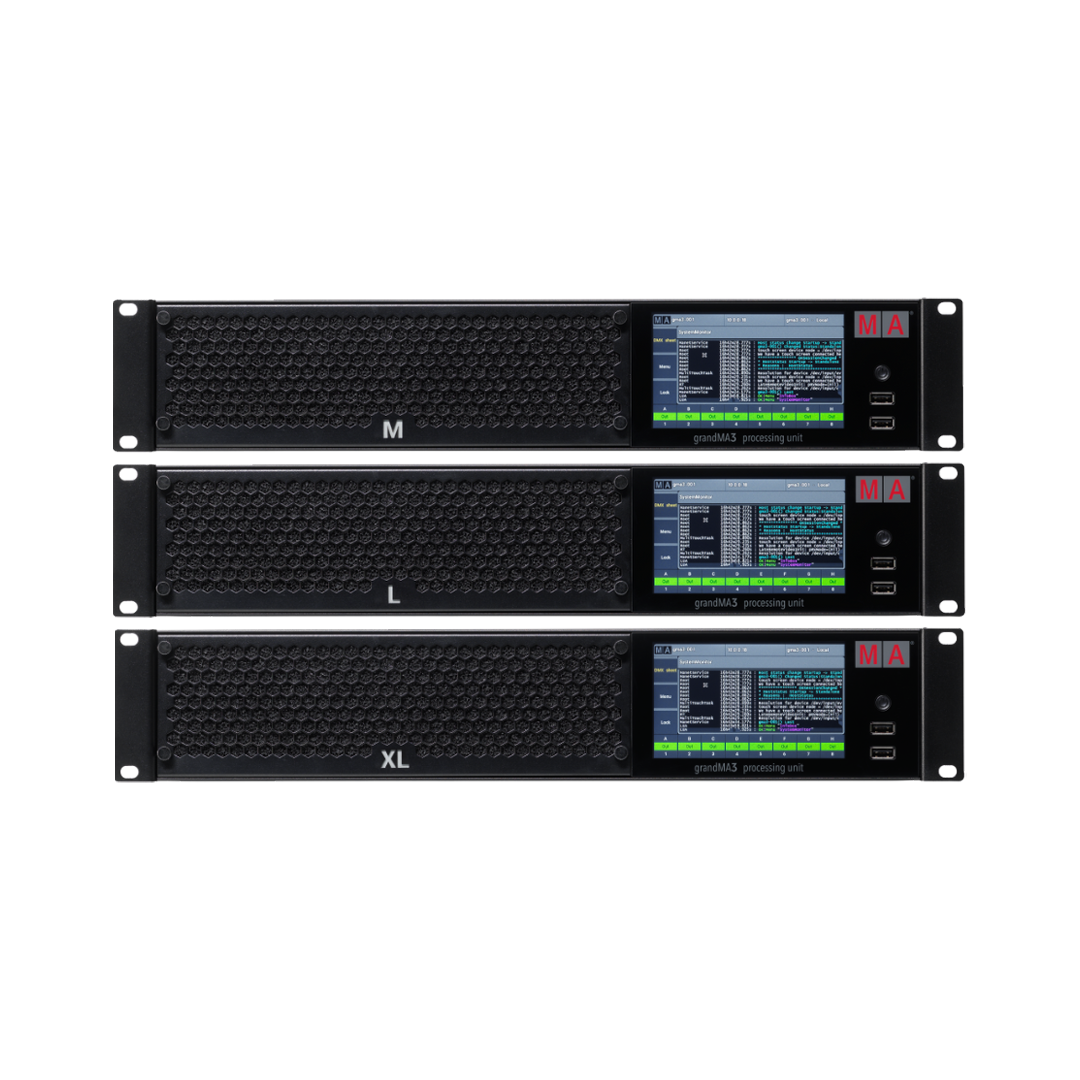

The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.

Unit: M

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

MA Lighting grandMA3 processing units

Dhs.33,096.07

Technical Specifications

Description

The grandMA3 processing unit increases the overall grandMA3 system parameters and enables the system designer to expand the lighting control system in small steps. Besides the powerful CPU for frame-synchronous calculation, the grandMA3 processing unit additionally offers a Mode2 to expand existing grandMA2 systems by 4096 parameters.

Technical Specifications

PARAMETERS

M – 4096 (HTP/LTP)
L – 8192 (HTP/LTP)
XL – 16384 (HTP/LTP)

PARAMETERS MODE2

4096 (HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

AC 100 – 240 V; 50/60 Hz

POWER

max. 200 VA

OPERATING TEMPERATURE

0 °C up to 40 °C

DIMENSIONS

482 x 372 x 87 mm (width x depth x height)

NET WEIGHT

5 kg

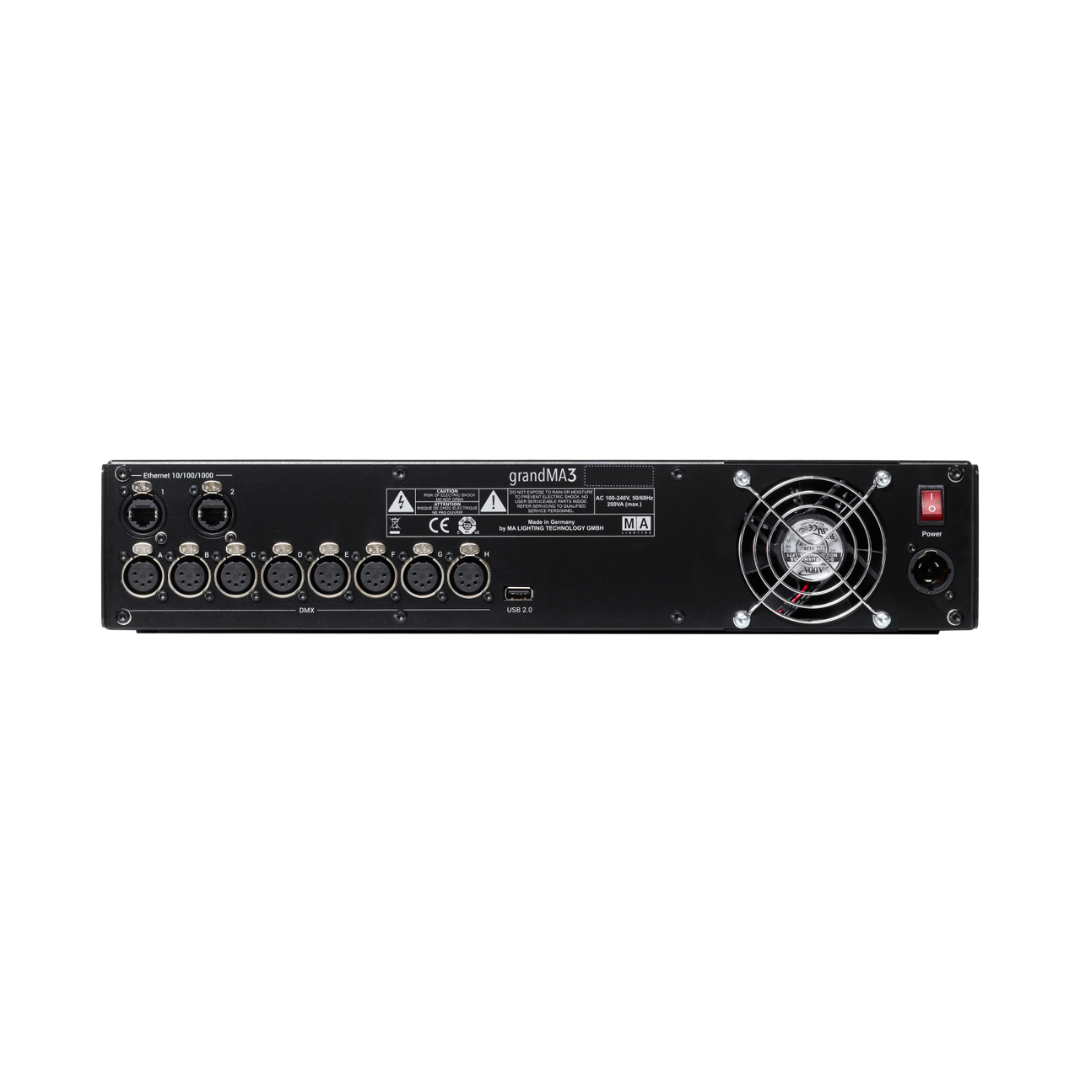

CONNECTORS

1 x powerCON TRUE1
2 x etherCON/RJ45
8 x DMX512-A Out (5pin XLR female)
3 x USB 2.0 (type A)
