Features

• Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
• 6 DMX outputs, 1 DMX input
• 2 external multi-touch screens can be connected
• 1 internal multi-touch command screen
• 3 etherCON connectors
• 5 USB connectors
• Various control interfaces

Technical Specifications

PARAMETERS

• 8192 (HTP/LTP)

PARAMETERS MODE2

• 4096 (HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 200 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

•  482 x 372 x 87 mm (width x depth x height)

NET WEIGHT

• 6 kg

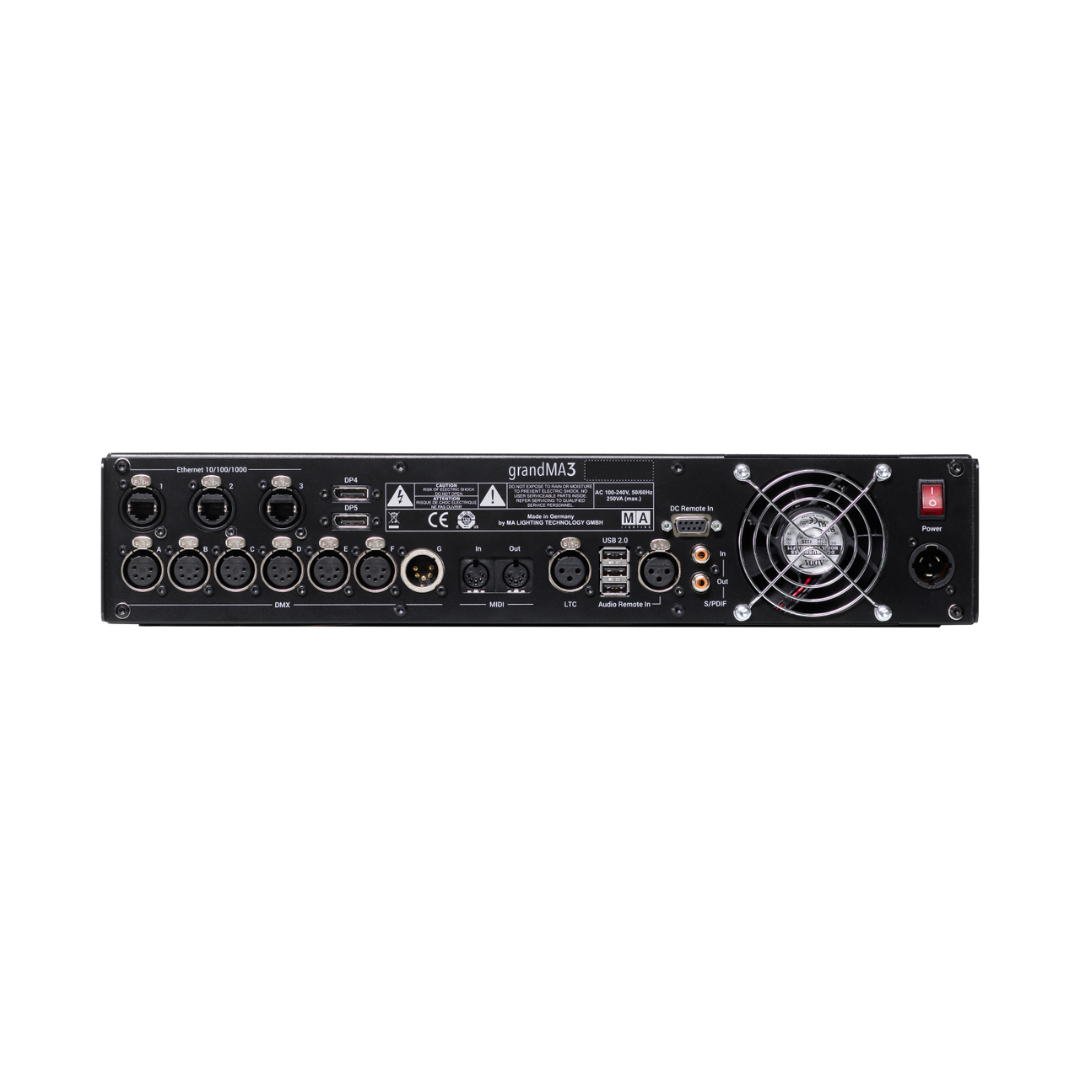

CONNECTORS

• 1 x powerCON TRUE1
• 3 x etherCON/RJ45
• 6 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (3pin XLR female)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 2 x DisplayPort 1.2 for external screens
• 2 x S/PDIF In and Out
• 5 x USB 2.0 (type A)
