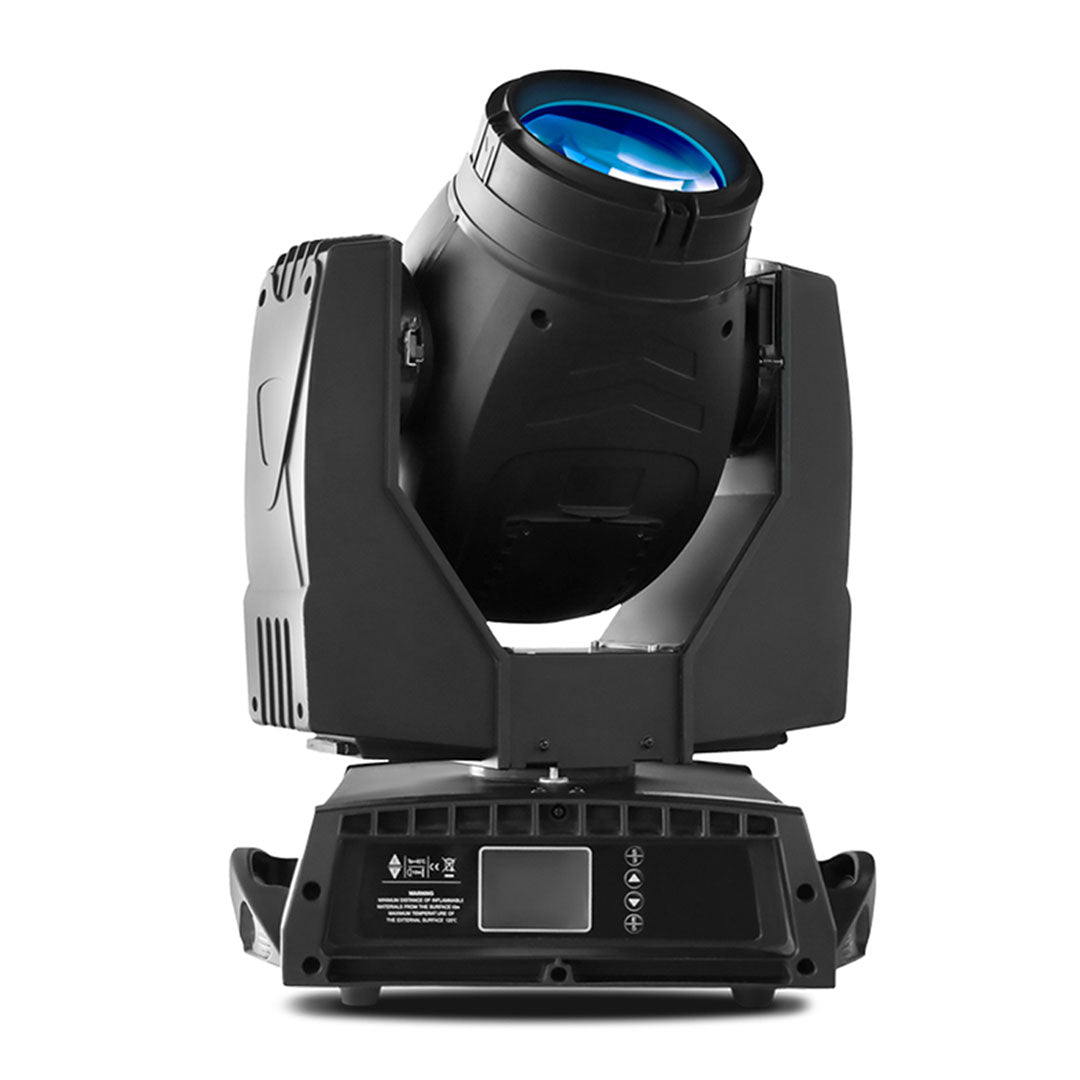

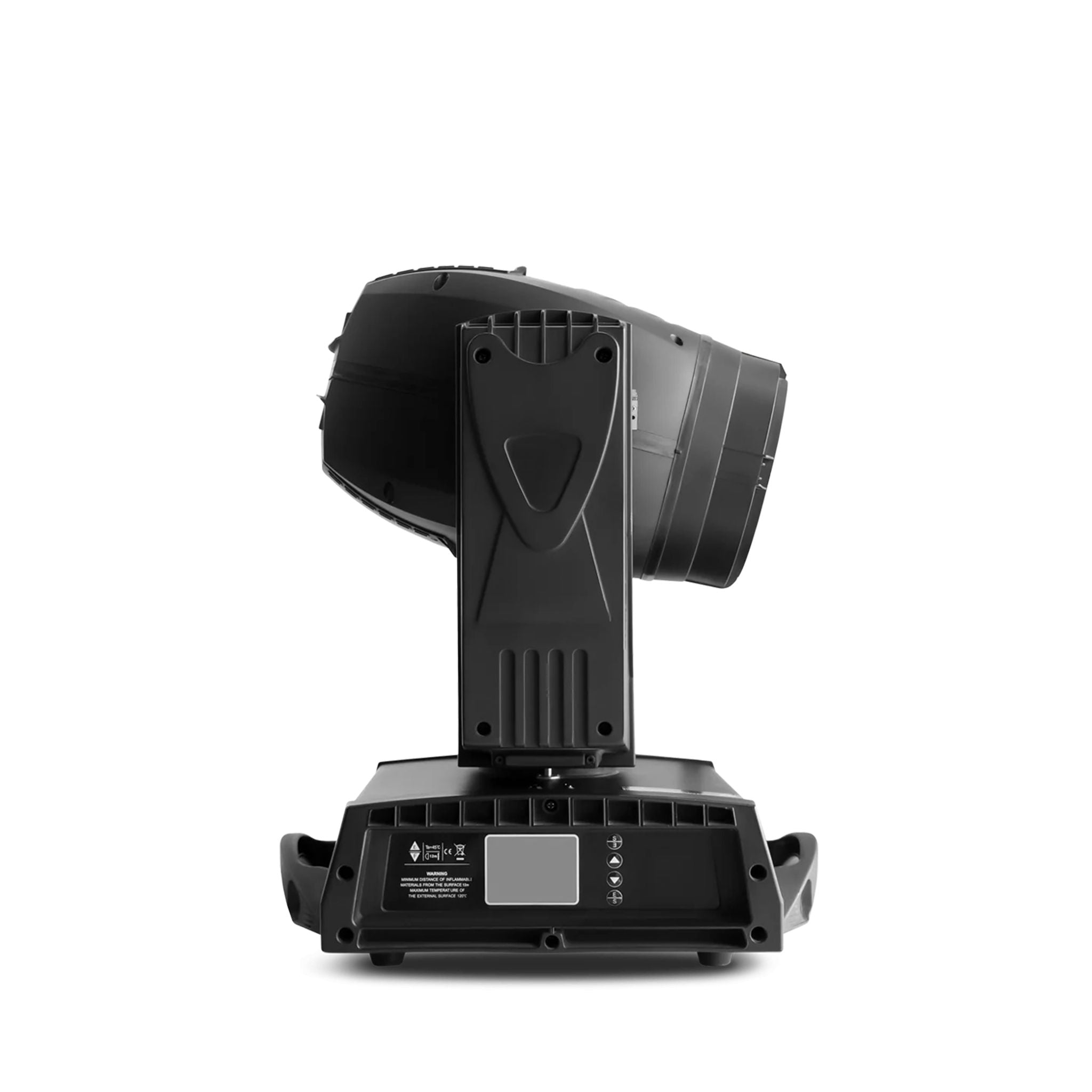

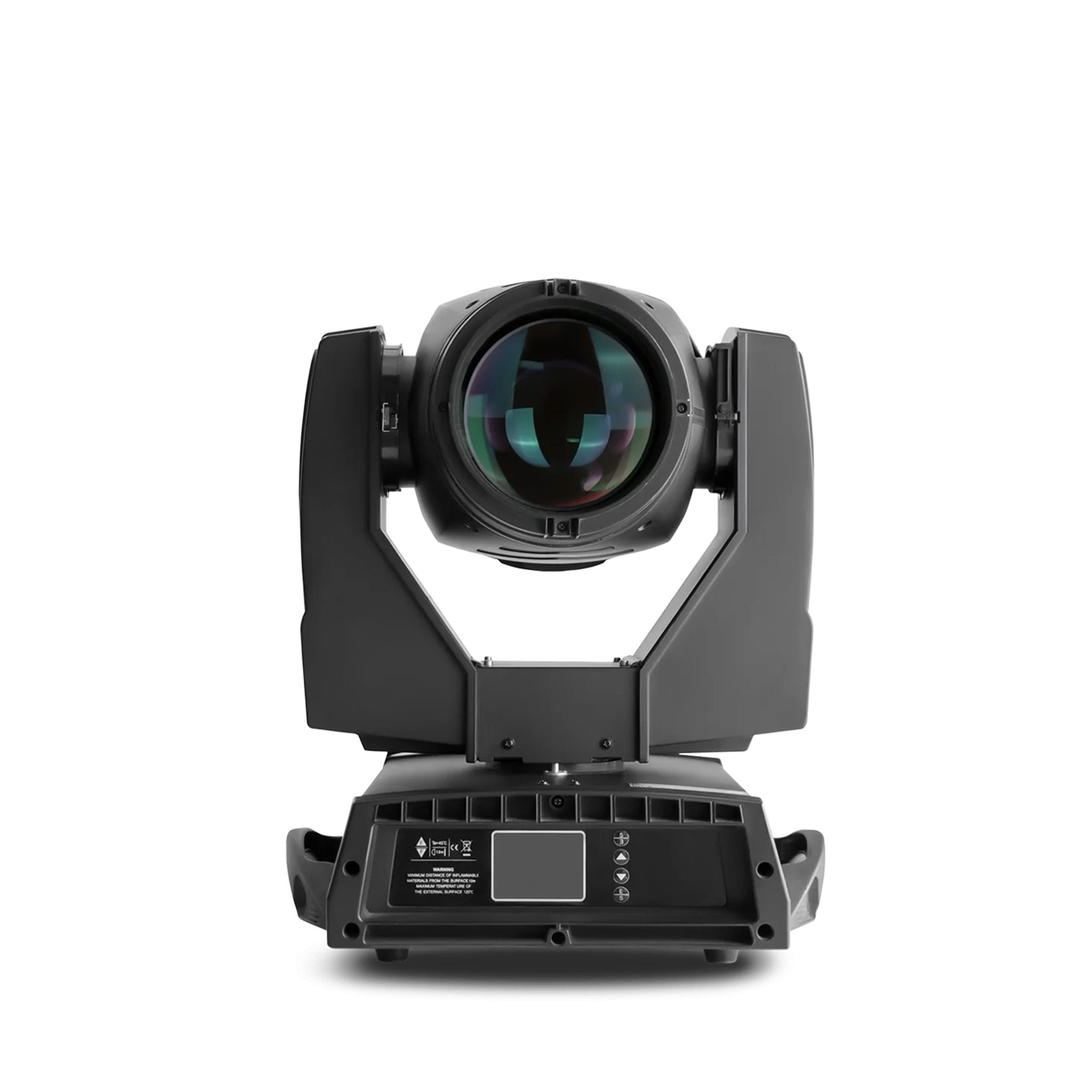

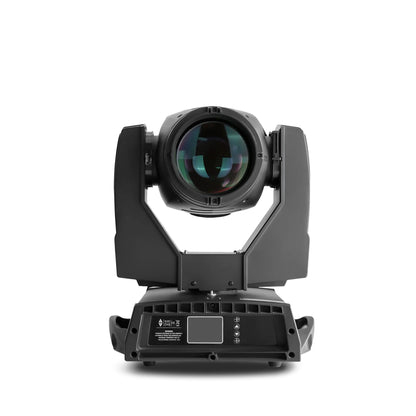

Aquaray 400B is an outdoor lamp beam moving head with an IP 54 rating. It has a powerful beam output with a narrow angle of 1.3° coupled with a wide variety of lighting effects and color mixing effects. Built in a strong and compact housing this fixture is ideal for any indoor and outdoor venues and entertainment applications.

SOURCE

• Light source: 330 watts
• Lamp life expectancy: 2,000 Hrs.
• Color temperature: 8000 K

OPTICAL SYSTEM

• Beam angle: 1.3°
• Light output: 318000 lux @ 10 m @ 1.3°
• Large 155 mm diameter front lens
• Electronic focus

DYNAMIC EFFECTS

• Dimmer: Linear adjustment
• Color wheel: 14 colors + open
• Strobe: 1-20 flashes per second with built-in macros
• Static gobo: 16 gobos + open
• Gobo shake function
• Prism: 2 combinable prisms, 16-facet prism + 6 linear prism
• Prism zoom effect
• Frost effect with variable light

CONTROL & PROGRAMMING

• Control protocols: DMX
• Display: 2.8′ full color touch screen, reversible 180°
• Control channels: 16, 17, 18, 20 CHs

 MOVEMENT

• Pan: 540°
• Tilt: 280°
• Resolution: 16 bit

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 550 watts

CONNECTIONS

• DMX connections: 3 pin XLR In/Out Male and Female
• Power connections: IP rated PowerCon In

PHYSICAL

• Dimensions: 400 x 372 x 540mm
• Net weight: 20 Kg
• Color: Black
• IP rating: 54
