Technical Specifications

Description

SOURCE

  • Light source: 19x40W RGBW LED
  • LED life expectancy: 20,000 Hrs.
  • Output: 11,100 lm
  • Illuminance: 16000 lux @ 10m @6°

OPTICAL SYSTEM

  • Beam angle: 6° to 36°

DYNAMIC EFFECTS

  • Bi-directional rotating front lens: Kaleidoscopic effect
  • Pixel-by-Pixel control
  • Color mixing: RGBW
  • Dimming: 0-100% Linear dimming
  • Electronic variable strobe
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control Protocol: DMX/RDM
  • Channel mode: 21, 23, 35, 78, 92, 97, 99 CHs
  • Display: 1.7-inch LCD color screen

MOVEMENT

  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V
  • Total power: 800W
  • Frequency: 50/60HZ
  • Power Factor: PF>0.95

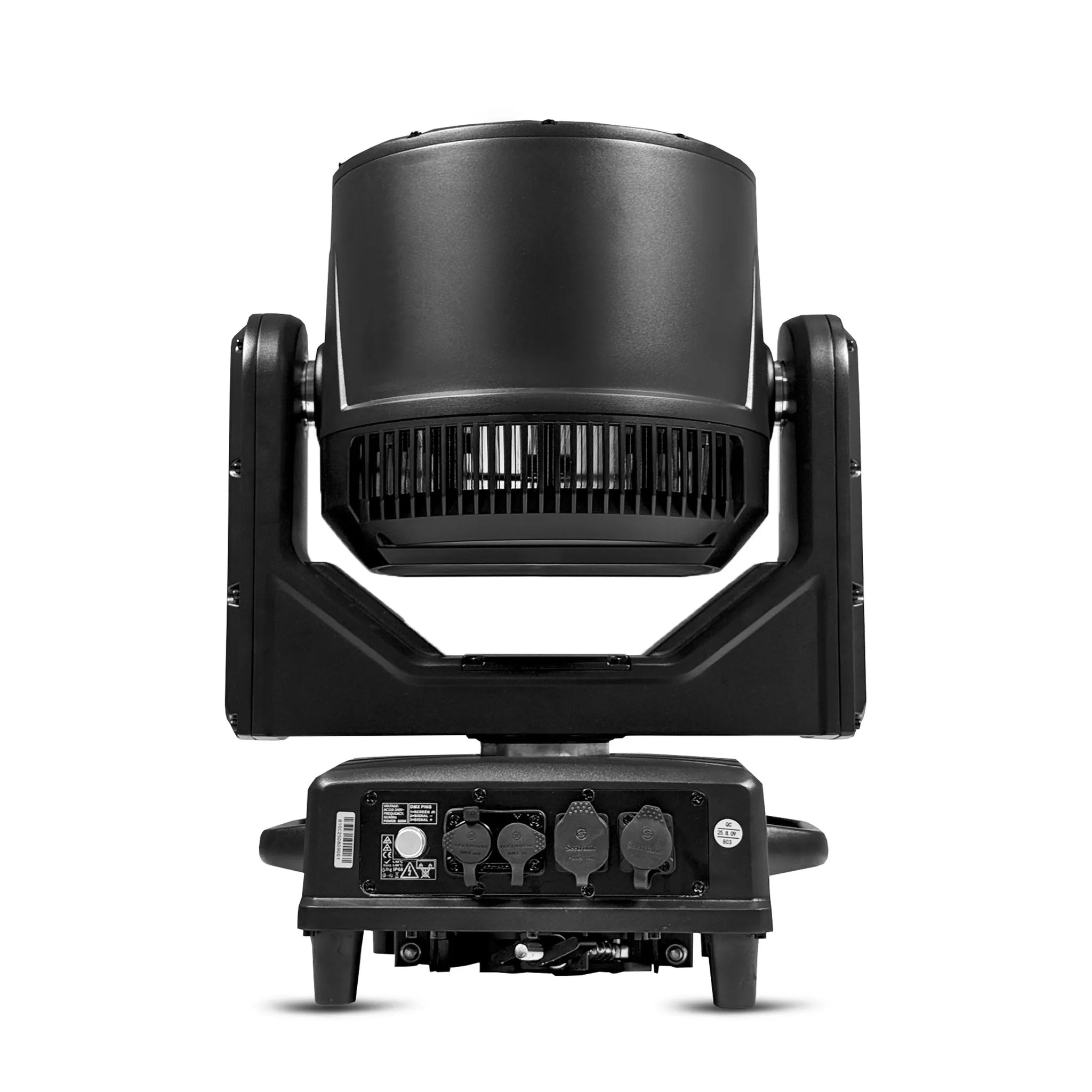

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out male and female

 PHYSICAL

  • Dimensions: 335 x 280 x 470 mm
  • Gross weight: 20.5 Kg
  • Net weight: 18.5 kg
  • Color: Black
  • IP rating: IP65
