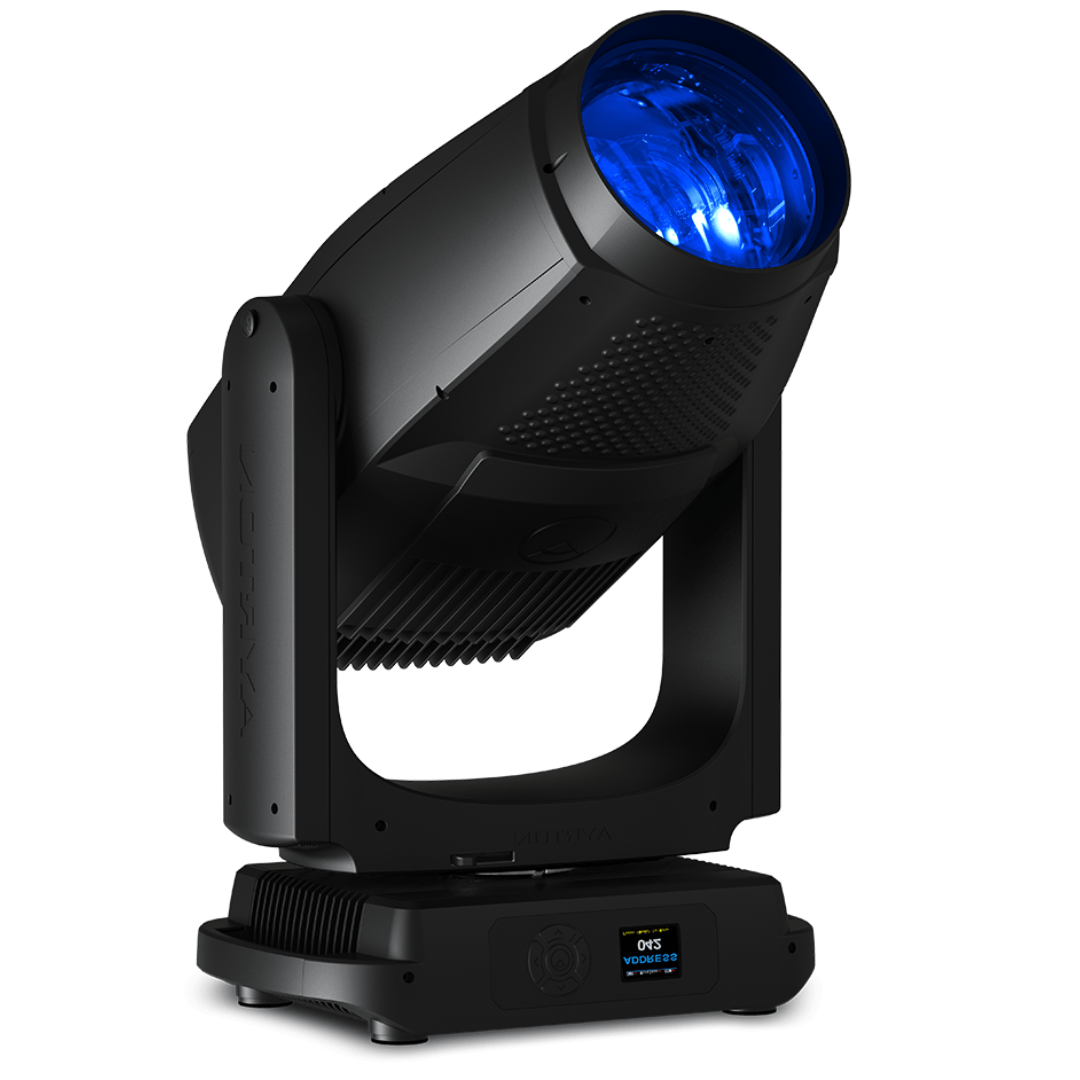

Equipped with an all-new high-efficiency 1,000-watt LED module, DOMINO LT delivers a record luminous flux of 51,000 lumens at a colour temperature of 6700 K.

DOMINO LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO LT is a unique luminaire designed to face the most extreme conditions… It is the ultimate tool for stadiums and large arenas.

Performance:

9 Series - Source: 1000 W - 6700 KLumens: 51,000Native CRI: greater than 70Beam Aperture: 3.5° to 53°Frontal Lens: 225 mm

Technical Specifications:

OPTICS

• 13-element 15:1 zoom high-resolution optic system
• Beam aperture: 3.5° to 53°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 225 mm frontal lens for greater performance

LIGHT SOURCE

• 75,000 lumens 8200 K white light engine
• Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Auto Fan Mode)
• Colour temperature output: 6700 K
• CRI: greater than 70
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

• Highly accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: 540° (pan), 263° (tilt)

COLOURS

• Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
• Variable CTB colour temperature correction
• Variable CTO colour temperature correction
• Variable CTP colour temperature correction
• Fixed colour wheel with six complementary colours

GOBOS

• Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30.0 mm
• Image diameter: 25.0 mm
• Gobo thickness: 1.1 mm

FRAMING SYSTEM

• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the framing system module: +/- 60°

IRIS DIAPHRAGM

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

FROST

• Progressive linear frost for wash effect
• Light frost for erasing the edge of the beam

EFFECTS

• Graphic animation effects-wheel with continuous rotation in both directions
• CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

DOMINO LT-IP65

• IP65 XLR 5-pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet™ connection
• IP65 PowerCON TRUE1 male connector for power connection

DOMINO LT-IP66

• DMX IN / OUT tails to bare end for IP66 connection
• Ethernet IN / OUT tails to bare end for IP66 ArtNet connection
• Power tail to bare end for IP66 power connection

CONTROL

• DMX 512 protocol, through IP65 DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 44 to 70 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 120 to 240 Volts – 50/60Hz
• Power: 1,600 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Super Silent Mode
• Safety protection against temperatures excesses

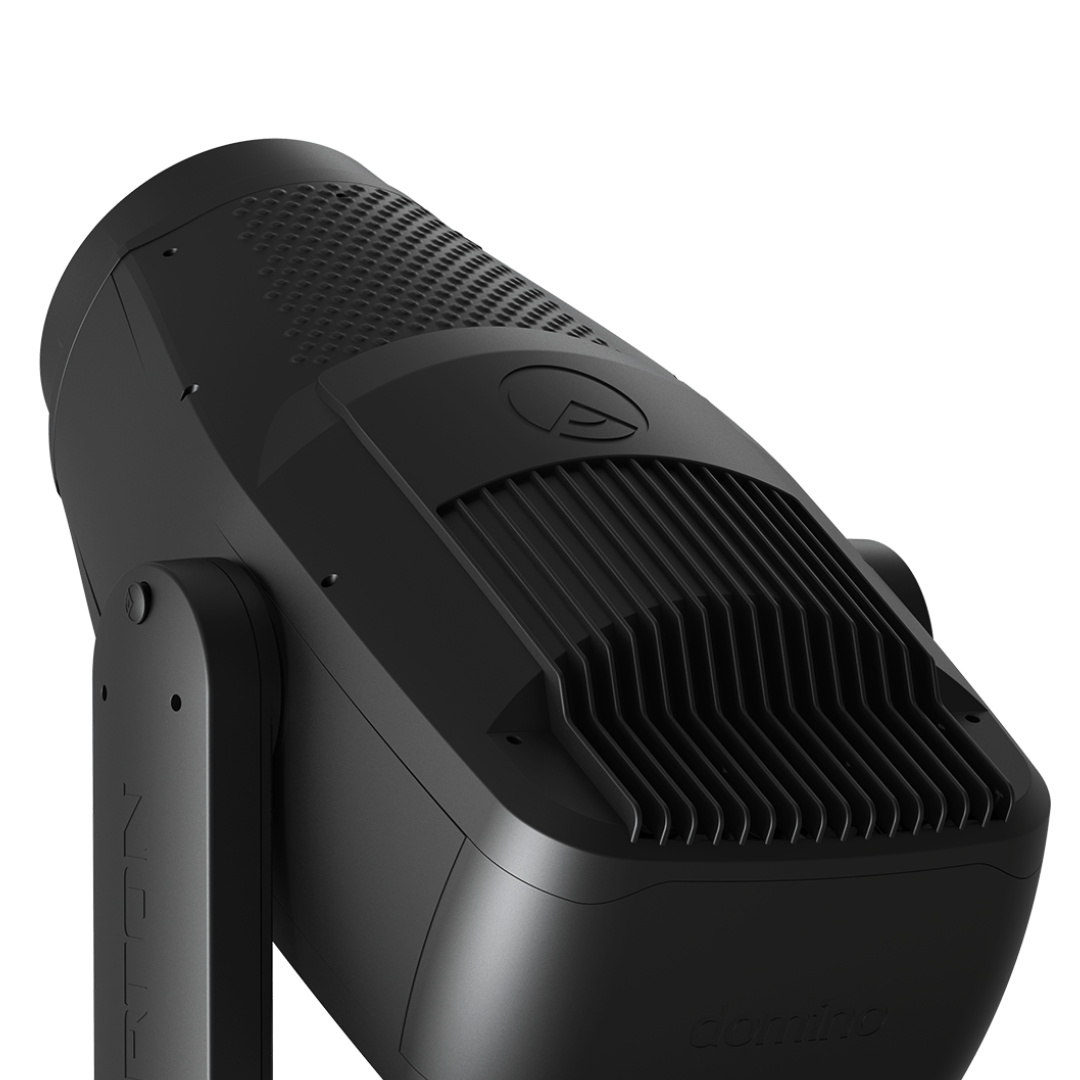

HOUSING

• Moving-head skeleton made of die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in die-cast aluminium
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
• Minimum usage distance: 3.0 m (9.84 ft)

COMPLIANCEEU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B:2018

SIZE

• Product: 490 x 884 x 330 mm (l x h x d)
• Flight-case foam: 765 x 665 x 555 mm (l x h x d)

WEIGHT

• Product: 60.0 kg

PRODUCT CODES

• 012670: DOMINO LT – CLASSICAL IP65 9 SERIES
• 012672: DOMINO LT – CLASSICAL IP66 9 SERIES
