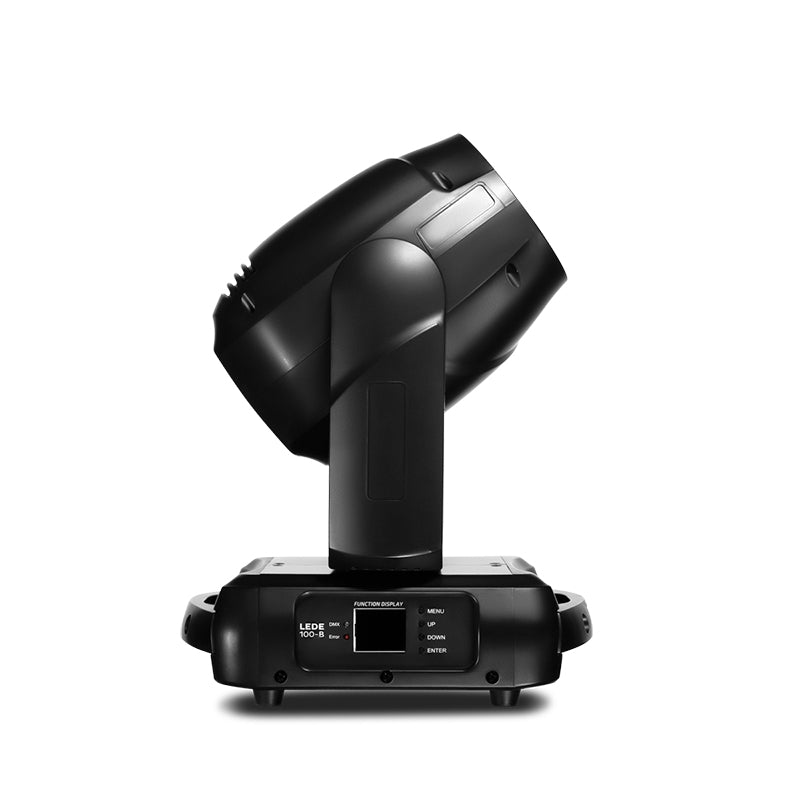

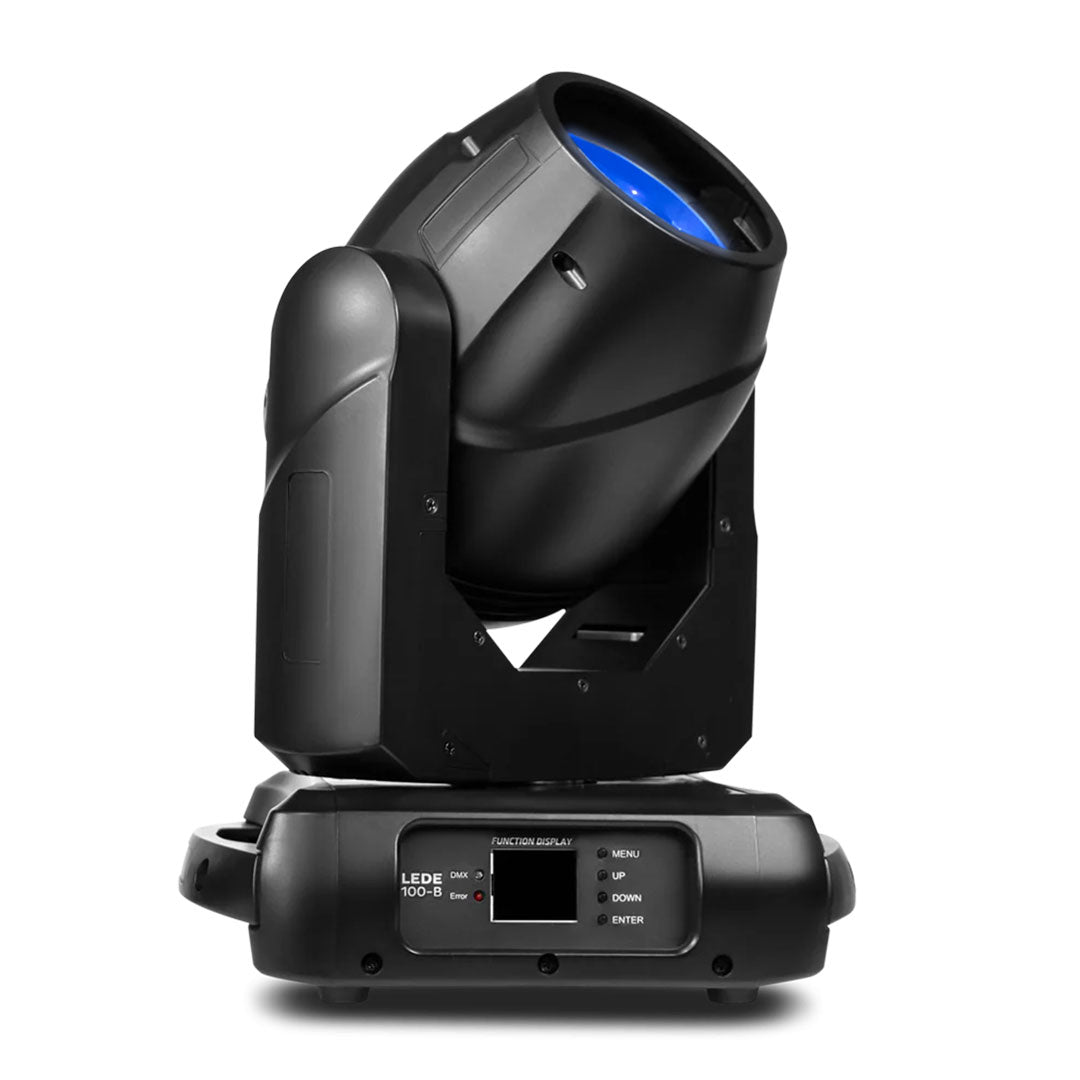

LEDE 100B is a compact LED beam moving head with a very narrow beam angle of 3°. Its compact size and low power consumption do not compromise on its creative and output effects. This LED beam moving head is perfect for small venues, stages, and events applications.

SOURCE

• Light source: 100 watts white LED
• LED life expectancy: 50,000 Hrs.
• Color temperature: 6600K
• CRI 73

OPTICAL SYSTEM

• Beam angle: 3°
• Light output: 70,000 Lux @ 4m @ 3°
• Electronic focus

DYNAMIC EFFECTS

• Dimmer: linear adjustment
• Color wheel: 10 colors + open
• Effect color wheel: 6 colors
• Electronic variable strobe
• Static gobo: 13 gobos +open
• Rotating gobo: 7 gobos + open
• Gobo shake function
• Prism: 16-facet circular prism
• Frost

CONTROL & PROGRAMMING

• Control protocols: DMX , Sound, Master-Slave, Auto Run
• Control channels: 16 CHs

MOVEMENT

• Pan: 540
• Tilt: 270
• Resolution: 16 bit

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 100 watts

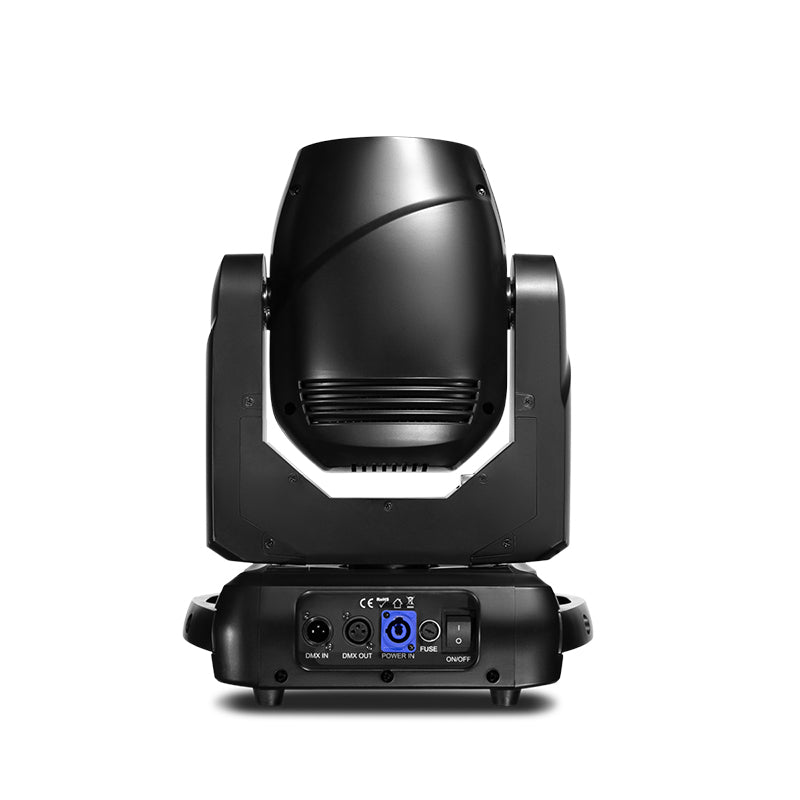

CONNECTIONS

• DMX connections: 3 pin XLR In/Out male and female
• Power connections: PowerCon In

PHYSICAL

• Dimensions: 333 x 270 x 424mm
• Net weight: 12.7 Kg
• Color: Black
• IP rating: 20
