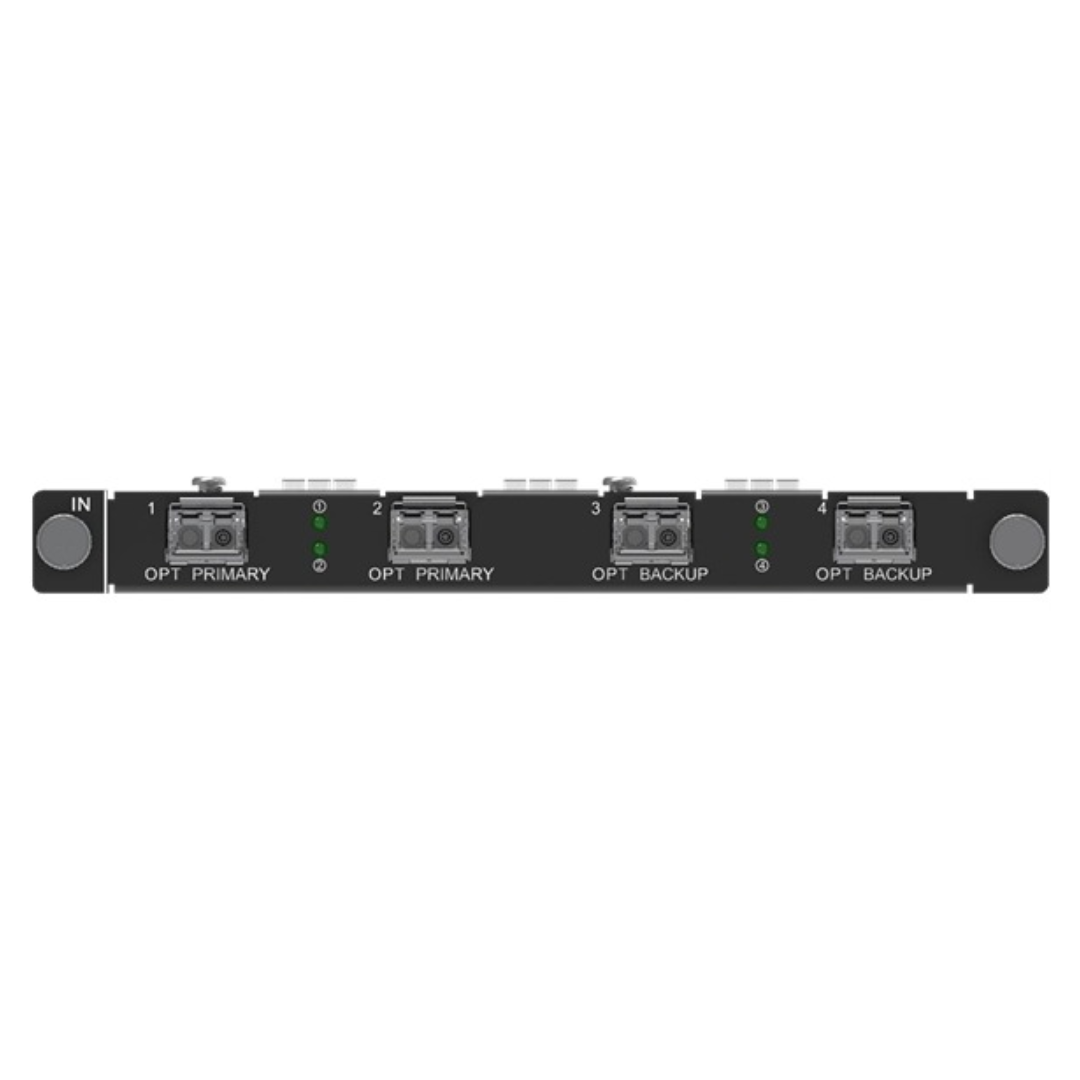

4× 10G OPT Ports

• OPT 1 and OPT 2are used forprimary inputs.
• OPT 3serves as thebackup for OPT 1, whileOPT 4serves as thebackup for OPT 2.
• Each connector supports amaximum resolution of 4096×2160 @ 30 Hz.
• Each connector supportsup to 2× SL inputs or 1× DL input.
• Supportsinput mosaic.
• Supports two input modes:independent modeandmosaic mode.
• Supportsautomatic identificationof input source resolution and color space.
• Supports144 Hz input.
• The optical module supportsSFP+ encapsulation. Supported module
• specifications include:

The input source specifications of the backup port and the primary one must be the same.

10G SFP+ SR optical module

10G SFP+ LR optical module

Input resolutionsettings are not allowed.

Status LEDs

On:The corresponding port has a signal.

Off:The corresponding port has no signal.

Weight:500 g

Dimensions:193 mm × 247.12 mm × 21.15 mm

Power consumption:42 W
