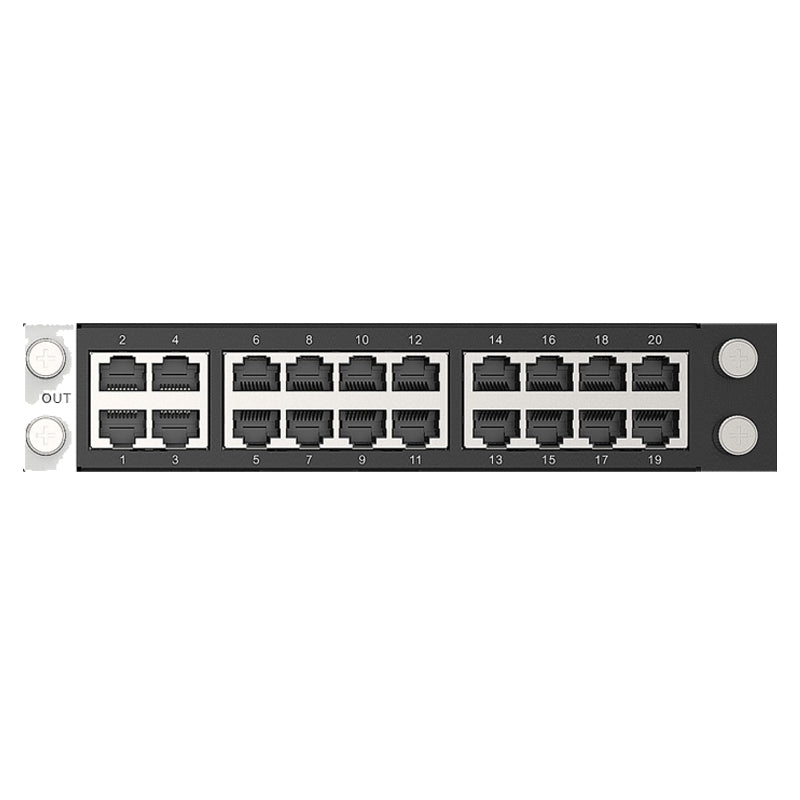

H Series 20 x RJ45 Output Sending Card

Name: H Series 20 x RJ45 Output Sending Card
Brand: NovaStar
SKU: H_OUT_20xRJ45
Price: 6006.13 AED
Availability: InStock

Brand: NovaStar

Categories: H Series, Novastar Video Control

SKU: H_OUT_20xRJ45

The H Series 20x RJ45 Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has 20 RJ45 Gigabit Ethernet outputs. Each output can drive up to 650,000 pixels in 8-bit or 320,000 pixels in 10-bit colour depth. Each output can be individually configured as a main or backup port.

Product variants

Available

Need Help:

Pairs well with

H Series 20 x RJ45 Output Sending Card

Dhs.6,006.13

Technical Specifications

Description

Key Features:

4 K Sending Card
Supports 8- and 10-bit colour depth
Supports up to 13,000,000 pixels

Technical Specifications:

Outputs

Main Outputs: 20
Ethernet Speed (LED Screen): 1 Gbit/s
Output Slots: 2

Extra Features

Scaling Function: Yes

Control and Programming

Maximum Loading Capacity: 13 Mpx
Greyscale Processing: 10 bit

Electrical Specifications and Connections

Data Connector Out: RJ45

Mechanical Specifications

Weight: 0.8 kg
IP Rating: IP20 (indoor use only)
Colour: Black
