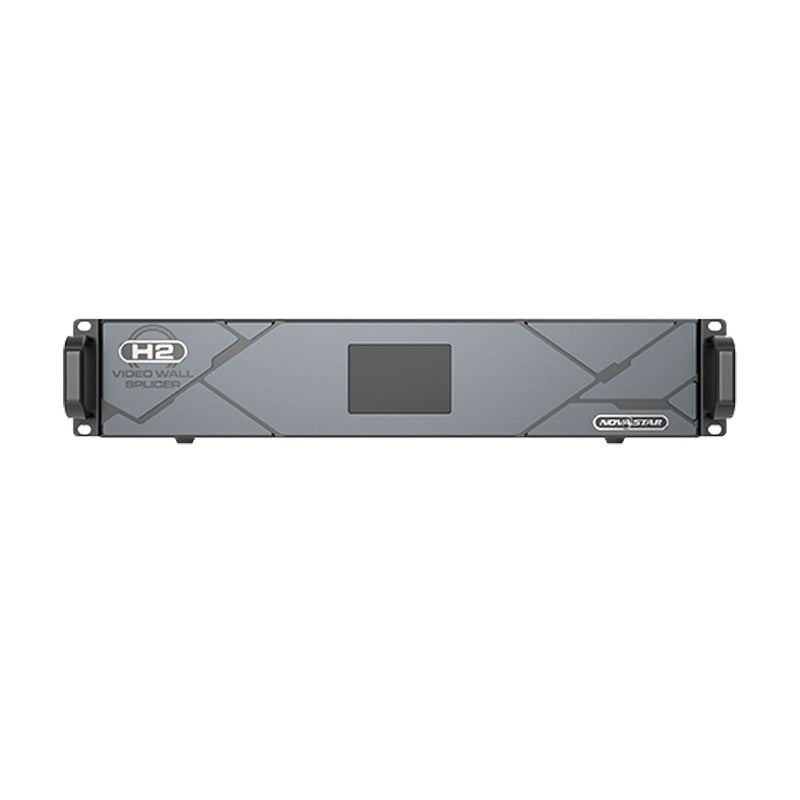

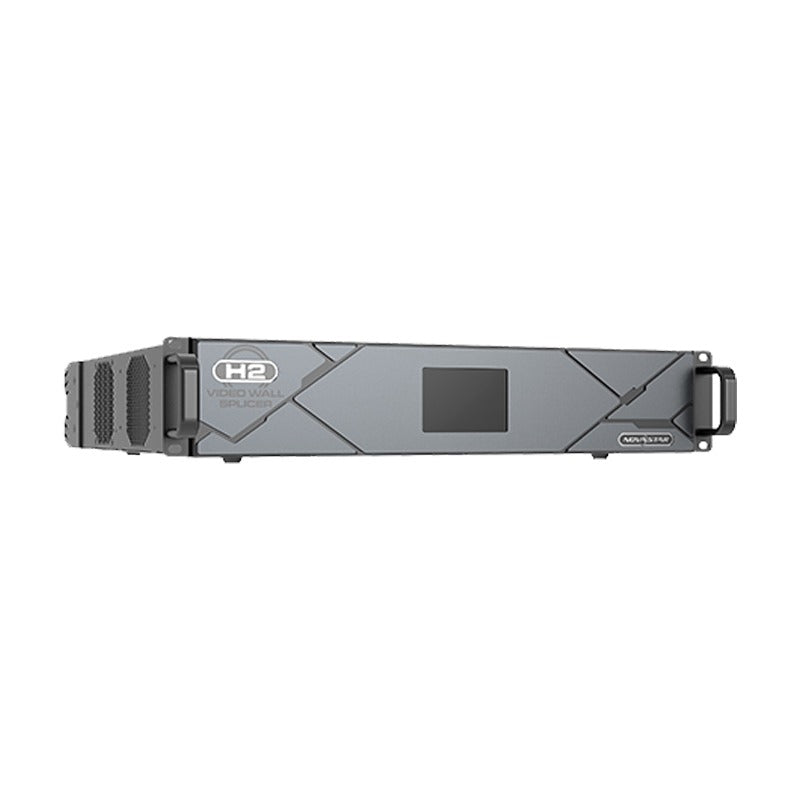

H2 - Video Wall Splicer

Name: H2 - Video Wall Splicer
Brand: NovaStar
SKU: H2
Price: 2153.36 AED
Availability: InStock

Brand: NovaStar

Categories: H Series, Novastar Video Control, Splicers and Switchers

SKU: H2

The H2 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H2 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H2 can be used in a wide range of applications.

Product variants

Available

Need Help:

Pairs well with

H2 - Video Wall Splicer

Dhs.2,153.36

Technical Specifications

Description

Hardware Features:

Two different types of 4K Sending Cards available:
Different configurations possible on one Sending Card:
Online monitoring for all input & output cards
"Hot-Swap" function for all in- & output cards
IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
Automatic decryption of HDCP protected sources
multi-screen management
web control

H_20xRJ45: Manages up to 13 million pixels
H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)

4x 2K×1K@60Hz
2x 4K×1K@60Hz
1x 4K×2K@60Hz

Specifications:

Model: H2
Rack Unit: 2U
Max. Input Cards: 4
Max. Input Channels: 16
Max. Output Cards: 2
Max. Output Channels: 8
Max. Loading Capacity:- LED 4K sending card: 26 million pixels- H_4xfiber sending card: 41.6 million pixels
Max. Layers: 32
Electrical Specifications:- Power connector: 100–240V~, 50/60Hz, 4.0A- Power consumption: 210 W
Operating Environment:- Temperature: 0°C to 45°C- Humidity: 0% RH to 80% RH, non-condensing
Storage Environment:- Temperature: –10°C to +60°C- Humidity: 0% RH to 95% RH, non-condensing
Physical Specifications:- Dimensions: 482.6 mm × 529.8 mm × 88.1 mm- Net weight: 11 kg (chassis)- Gross weight: 12.2 kg (chassis)
Noise Level ( typical at 25°C /77°F):＜45 dB (A)
Packing Information- Packing box: 660 mm × 570 mm × 210 mm- Accessories: 1x Power cord | 1x RJ45 Ethernet cable | 1x Grounding cable | 1x HDMI cable | 1x Quick Start Guide | 1x Certificate of Approval | 1x Safety Manual | 1x Custom Letter
