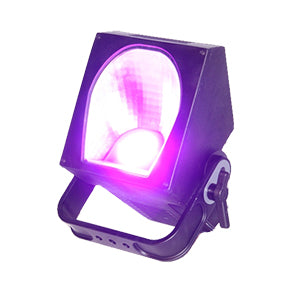

The PLCYC LED Luminaire delivers smooth even cyclorama lighting in a compact light weight design. Using just 150 watts of power to illuminate drops up to 5 meters high each unit can replace the equivalent of a traditional 4 color 500 watt luminaire. A typical cyc can be powered from a single circuit using our convenient Powercon cabling system for power along with standard DMX cables.

The PLCYCLED Luminaire may be used for top or bottom lighting with units spaced on 1.2 meter – 4 foot centers for optimum performance and value.

Product Features

• Delivers the performance of a 500 watt cyclight with a maximum power consumption of 150 watts with a smooth even field for cycloramas up to 5m – 16ft high
• Simple spacing system 1.2m - 4ft from cyc surface 1.2m – 4ft on center spacing
• Designed for top or floor mounting with kick stand yoke
• Infinite color choice from the RGBW engine and supporting color temperatures from 3000K to 5600K in white
• Homogenized fully mixed color output light, no multiple color shadows
• 50,000 hour life before degradation in light output and quality is expected
• Quick selection of Warm White, Cool White, and Daylight
• Color presets simplifies matching existing light sources
• User defined on board presets states available to record your color composition
• Constant color balance down to very low light levels irrespective of intensity setting
• DMX512 Input/Output with 8 or 16-bit resolution
• Wireless DMX512 option - compatible with Wireless Solution W-DMX, Lumen Radio, or City Theatrical Show DMX512 transmitters
• On-board LCD menu for ease of luminaire set up and addressing
• No ultra-violet (wavelengths of less than 400nm) – for UVA, B or C or the Infrared spectrum (wavelengths of more than 775nm)
• Luminaire colors: black
• Electronic universal power supply 100-240VAC
• PowerCon In and Through connectors (to daisy-chain luminaires)
• Electronic power supply; ETL / cETL approved and CE marked
