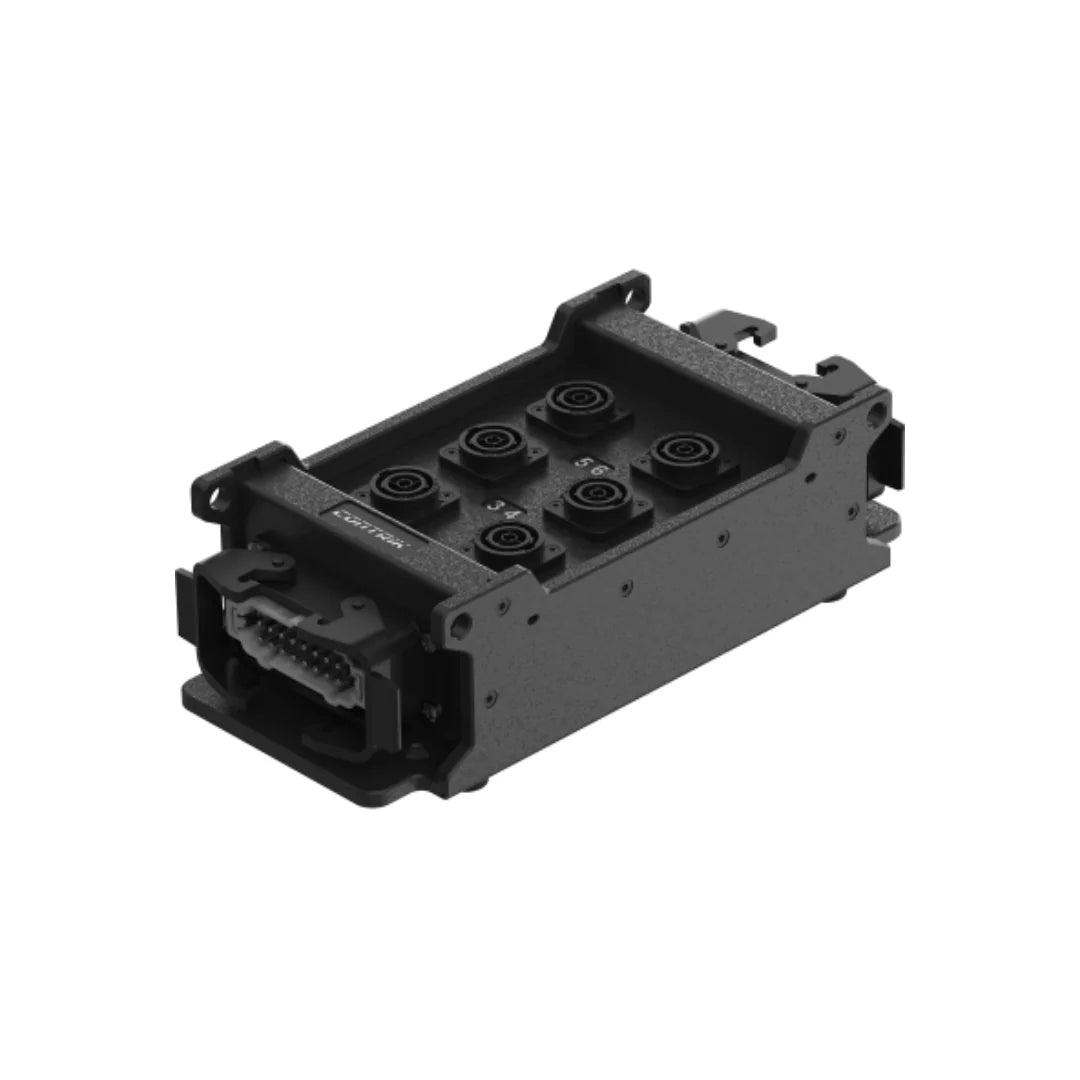

Key Features:

• Reduction of cabling volume and effort due to Harting E16 multipin Input / Daisy-chain.
• High mechanical protection: Rugged Easylen® housing with high IK, full connector protection with housing elements.
• Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.
• Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
• Versatile mounting options: mounting wholes for pegs and suspension, truss clamp

Applications:

• Markets: Professional video wall / lighting / audio
• Mobile application: Festivals, live events]
• Semi-permanent applications: Theaters, studios

Technical Specifications:

Product

• Input device: 1 x Harting E 16 (6 channels) [1-9]
• Output device: 6 x powerCON® TRUE1® TOP
• Daisy chaining: 1 x Harting E 16 (6 channels) [1-9]

Electrical

• Contact resistance / protection class Dielectric strength: Protection class II
• Dielectric strength: 0,5 kV / mm
• Rated voltage: 250V AC
• Rated Current: 16A

Mechanical

• Conductor cross section: 2,5 mm²
• Mounting options: Truss clamp (M10), mounting wholes for pegging or suspension
• Type of construction: Stackable
• Dimensions: 150 x 95,25 x 330mm

Material

• Housing: Easylen
• Color: black

Environmental

• Protection class: IP20
• Temperature range: -25 °C bis +40 °C
• Flammability acc. to UL 94: V-2
