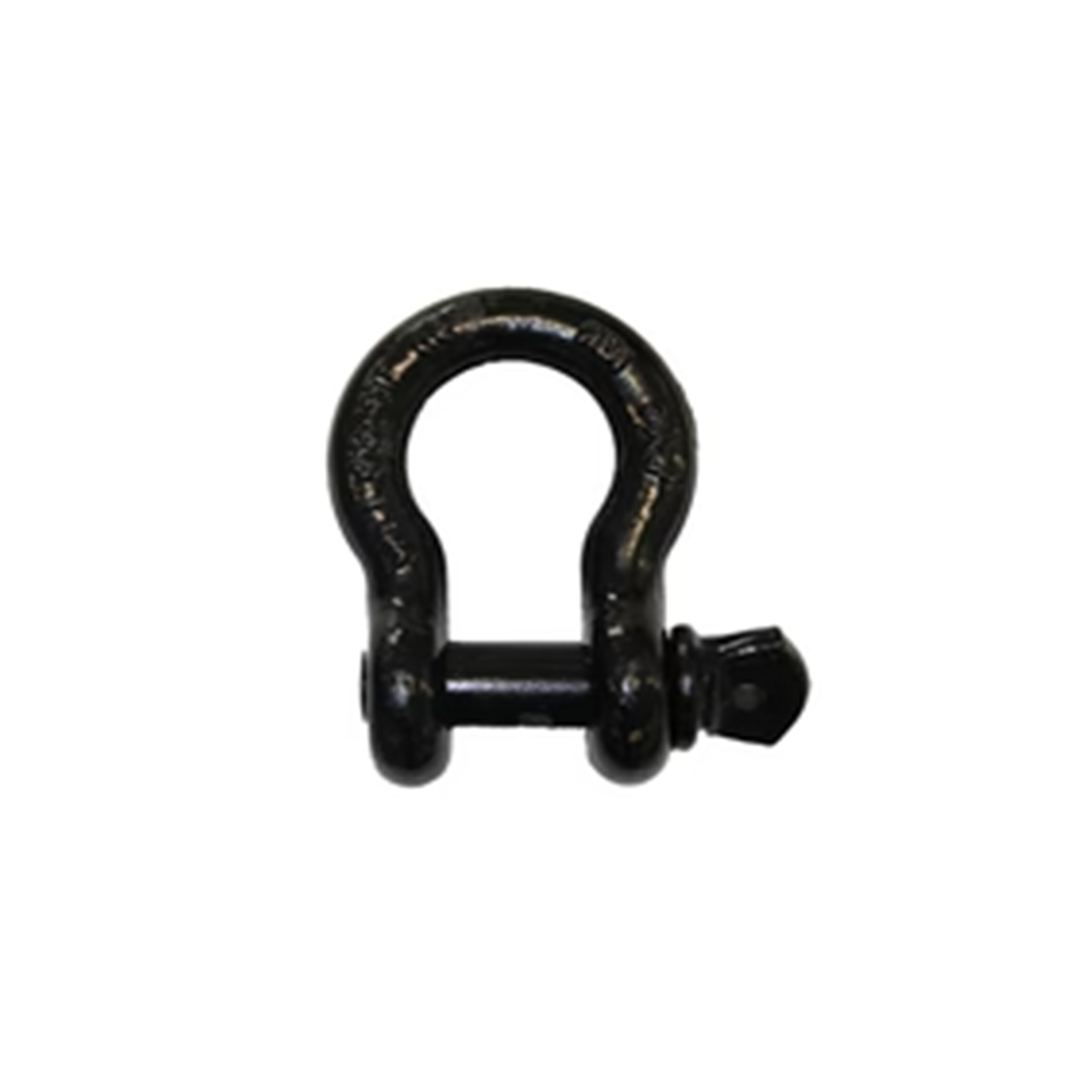

U-shaped shackle secured with a bolt across the opening,used asthe primary connecting link for rigging systems allowing them to be connected or disconnected quickly.

Bow Shackles Facts

• Galvanized
• All shackles are marked with: WLL, Batch code of the manufacturer, CE mark, Mark of the manufacturer
• Safety factor 6
• Conform the NEN 13889
• Temperature range: -20º C up to + 200º C
• Available in black

Capacity

Pin

Bow

1000 kg. WLL

12 mm.

9 mm.

2000 kg. WLL

16 mm.

13 mm.

3250 kg. WLL

20 mm.

16 mm.
