PA50 PA/Delay & Rigging Tower

Name: PA50 PA/Delay & Rigging Tower
Brand: Eurotruss
SKU: TD50-PA TOWER SCAFF15
Price: 148007.63 AED
Availability: OutOfStock

Brand: Eurotruss

Categories: Sound Towers

SKU: TD50-PA TOWER SCAFF15

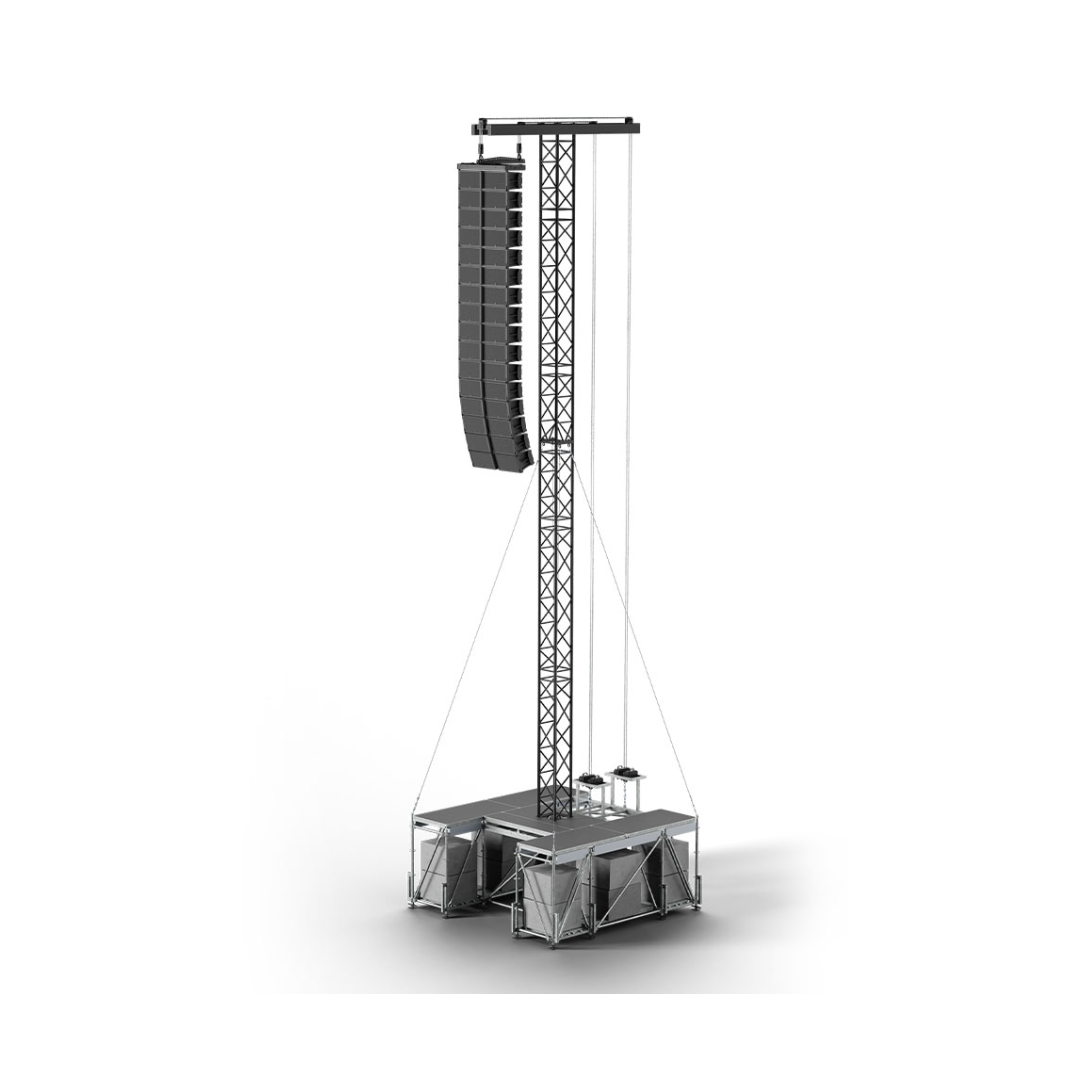

This stand-alone tower is constructed using Eurotruss TD50 Tower truss, making it modular and capable of reaching heights of 10 to 15 meters in steps of 1.5 meters each. The tower is integrated with a specially designed base into scaffolding to create full stability.

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

Designed with convenience in mind, there is an open scape created in the scaffolding structure beneath the tower’s front section for easy entry and lifting of PA clusters. The scaffolding structure at the same time functions as part of the ballast and can easily carry the required additional ballast as well.Technical specifications

Overall Height:15 m / 49 ft

Max. Lifting Height:14,5 m / 47 ft

Max. Loading capacity:2.100 kg / 880/1.750 lb

Cantilever:1,75 m / 5,7 ft

Footprint Width:4,1 m / 13,5 ft

Footprint Depth:4,1 m / 13,5 ft

Ballast:14 ton / 30864 lb

Max. Surface front:8m2 / 86sq/ft

Max. Surface side:4m2 / 43sq/ft

Type of mast sections:Eurotruss TD50
