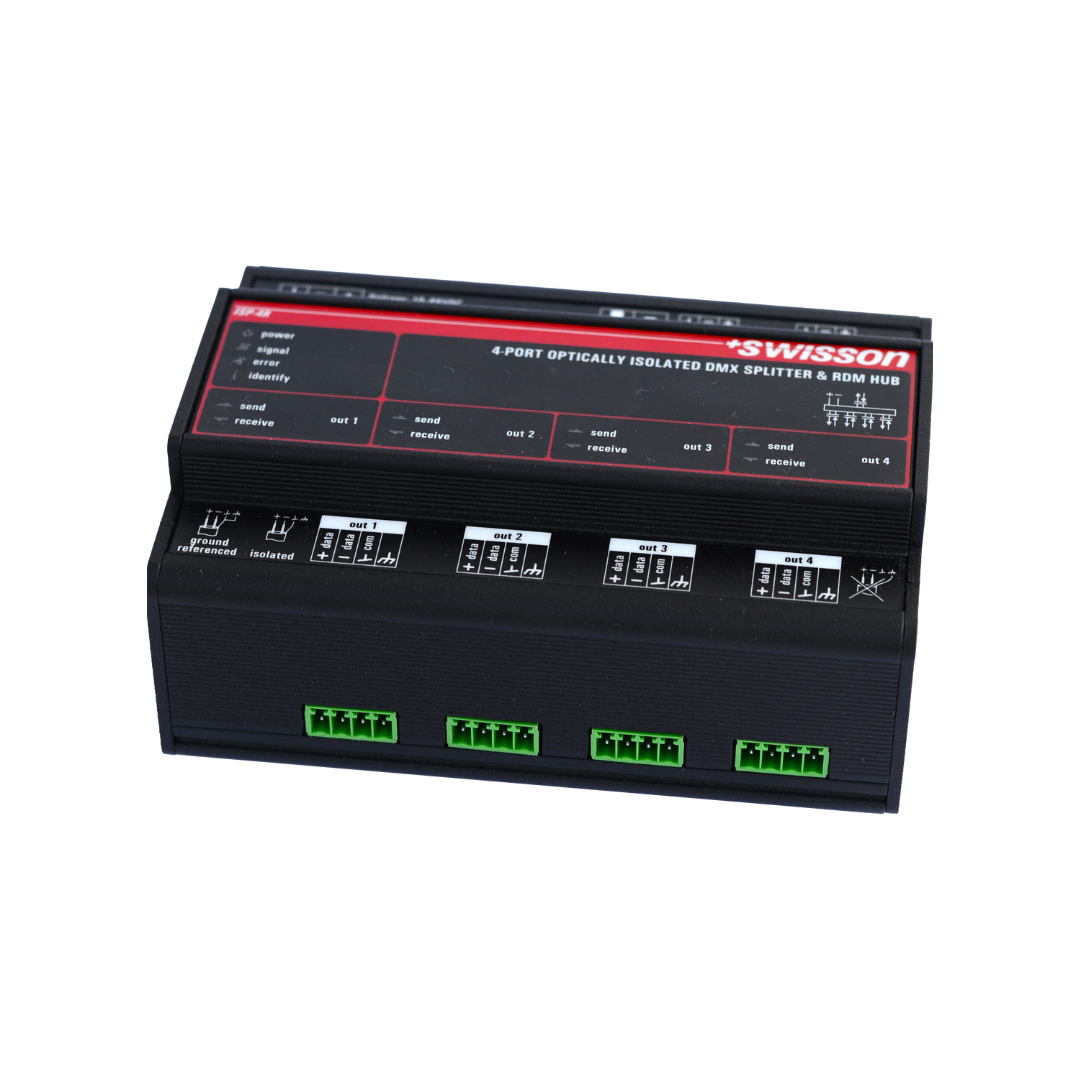

Swisson - ISP-4R-TERM- DIN Rail DMX & RDM Splitter- 4 outputs Terminal

Name: Swisson - ISP-4R-TERM- DIN Rail DMX & RDM Splitter- 4 outputs Terminal
Brand: Swisson
SKU: ISP-4R-TERM
Price: 1424.31 AED
Availability: InStock

Dhs.1,424.31

Brand: Swisson

Categories: DMX Splitters

SKU: ISP-4R-TERM

The DMX splitters of the ISP-4/ISP-6 line of products boost an incoming DMX signal and provide it on four (ISP-4) or six (ISP-6) output ports. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as for building star topologies. The ISP splitters also act as repeaters, and thus they may be used for transporting a DMX signal across larger distances. DMX signals often get disturbed by the environment or even by the devices connected to the signal line. An ISP splitter may completely clear the disturbances if it is connected at a location where the signal is still “readable”.

Product variants

Low stock, only 7 items left.

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

Swisson - ISP-4R-TERM- DIN Rail DMX & RDM Splitter- 4 outputs Terminal

Dhs.1,424.31

Technical Specifications

Description

Providing individually optically isolated outputs, as well as an optically isolated input, the ISP splitters may prevent harmful voltages applied to a given port from affecting the other ports and damaging the connected equipment. The ISP splitters work within DMX/RDM environments, as well as in pure DMX environments. The devices are DIN rail mountable and powered by an external power supply unit.

DMX splitter/booster
DMX repeater
Input optically isolated
Each output individually optically isolated
RDM support
Rugged metal housing
Built-in termination
RJ45 and pluggable screw terminal variants

Product Features

Weight ISP-4: 0.4 kg (0.9 lb.)
Weight ISP-6: 0.56 kg (1.25 lb.)
Dimensions ISP-4 (L x W x H): 124.55 x 90 x 56 mm (4.9" x 3.54" x 2.2")
Dimensions ISP-6 (L x W x H): 172 x 90 x 56 mm (6.8" x 3.54" x 2.2")
Ambient temperature: −30 to +55°C (−22 to +131°F)
Power consumption ISP-4: 4 W
Power consumption ISP-6: 6 W
DC power input: 10 - 48 V DC
DMX / RDM : ANSI E1.11 / ANSI E1.20
