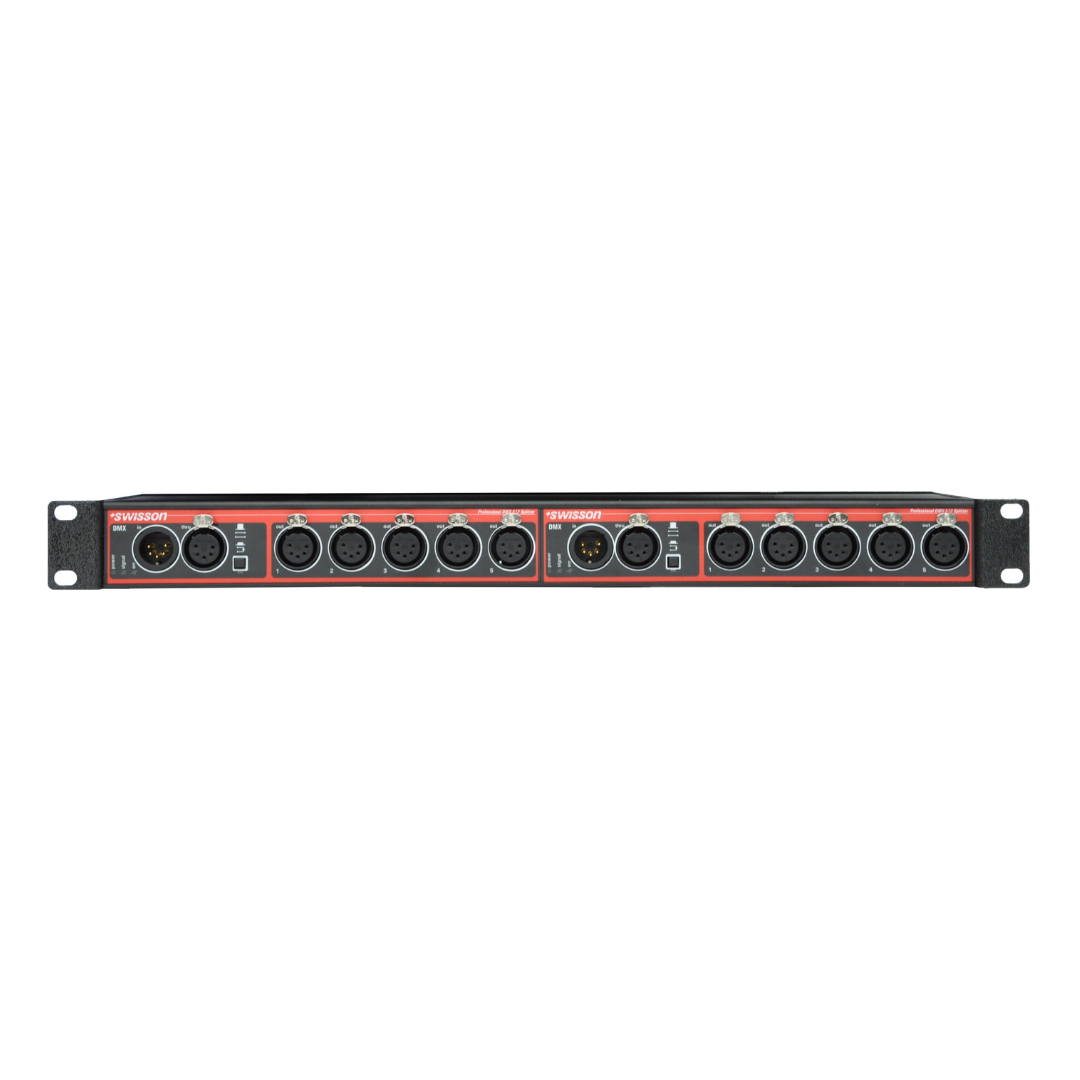

An integrated microcontroller constantly monitors the DMX protocol and indicates the presence of DMX signal or an error with the DMX. In order to meet the requirements of a variety of applications, there are numerous XSP models. The XSP box models have a thread for a clamp and an eye for the safety line. These models are portable and suitable for truss mounting. The rack and double rack models are for 19″ rack systems. There are different types of connectors with 5-pin XLR, 3-pin XLR and pluggable screw terminals. Installation versions for wall mounting and direct wiring are also available.

• High level of reliability
• Boosts DMX
• Regenerates DMX
• Reduces reflection problems
• Distributes DMX
• Individual optical isolation per port
• Connector types: 5-pin and 3-pin XLR and pluggable screw terminal models
• Housing types: Installation, box, rack and double rack models, rear entry
• 5 DMX outputs per universe / 10 outputs for the double-rack versions
• DMX line termination.

Product Features

• Weight box: 0.4 kg (0.9 lb.)
• Weight single rack: 1.5 kg (3.3 lb.)
• Weight double rack: 1.8 kg (3.9 lb.)
• Dimensions box (L x W x H): 217.5 x 112 x 44.5 mm (8.56″ x 4.41″ x 1.75″)
• Dimensions rack (L x W x H): 482.6 (19″) x 112 x 44.5 mm (19″ x 4.41″ x 1.75″)
• Ambient temperature: -17 to +55°C (0 to +131°F)
• Typical power consumption: 4 W / 8 W (double rack)
• AC power input: 10 0-240 V AC
• M10 for clamp / safety eye: Yes (box version only) / Yes (box version only)
• DMX: ANSI E1.11
