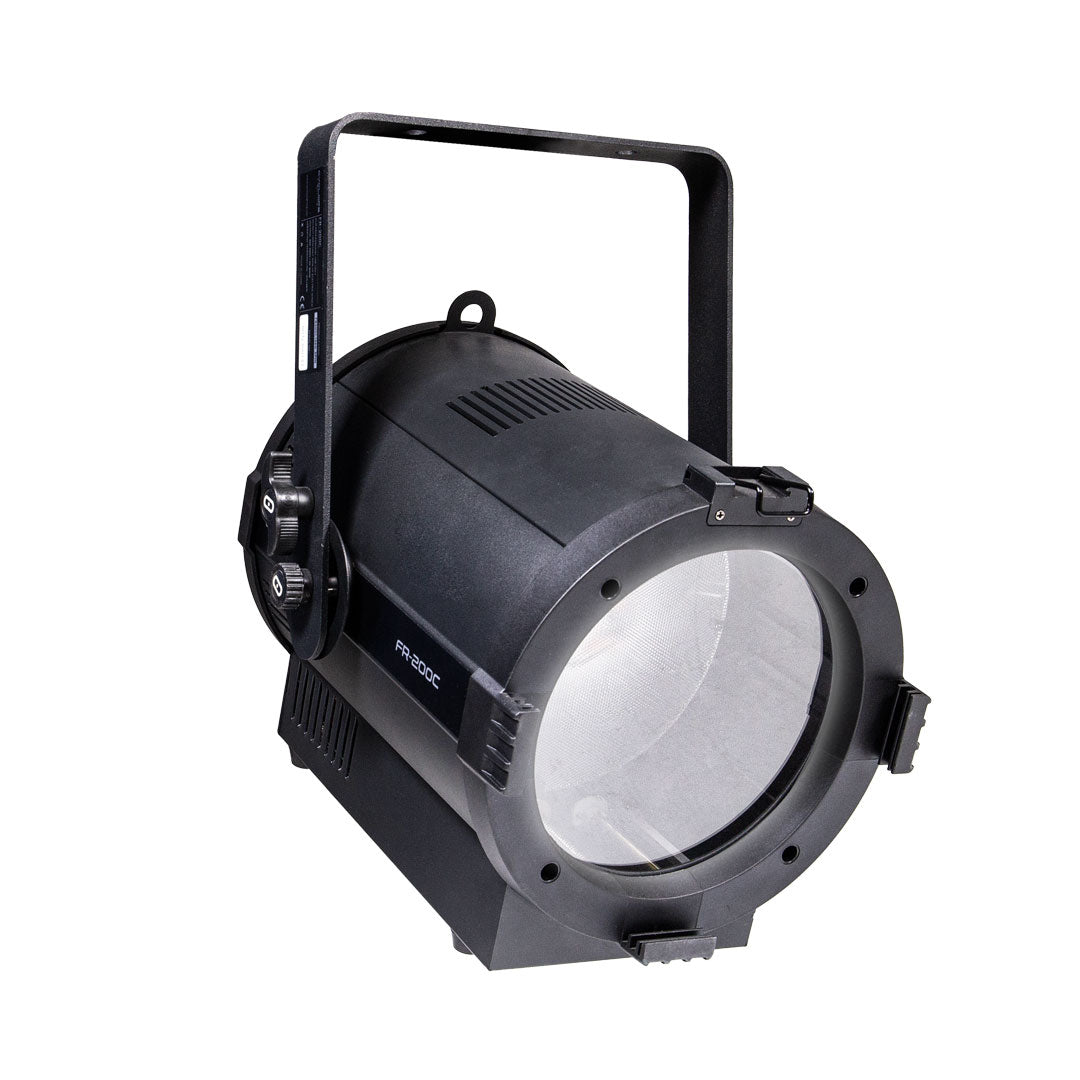

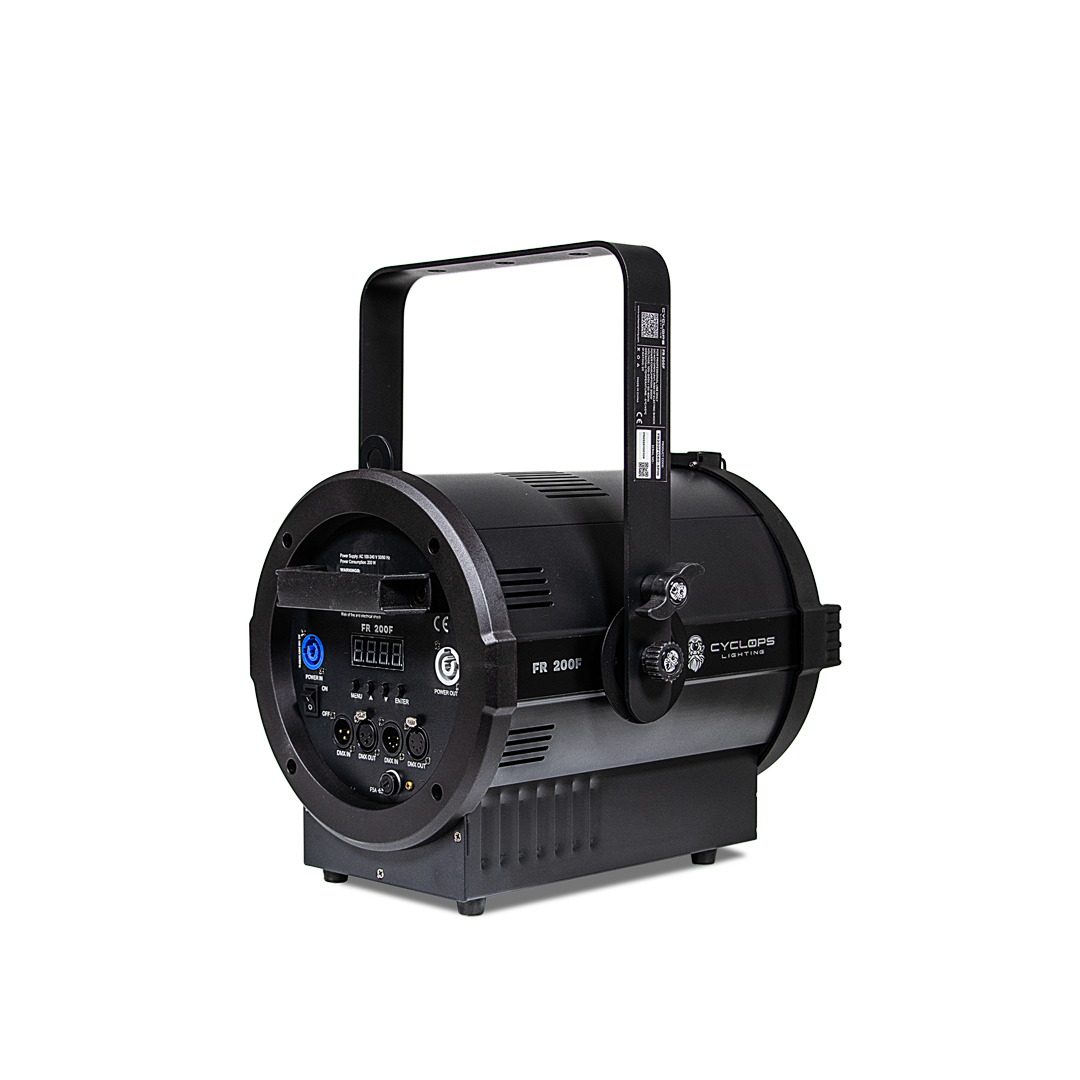

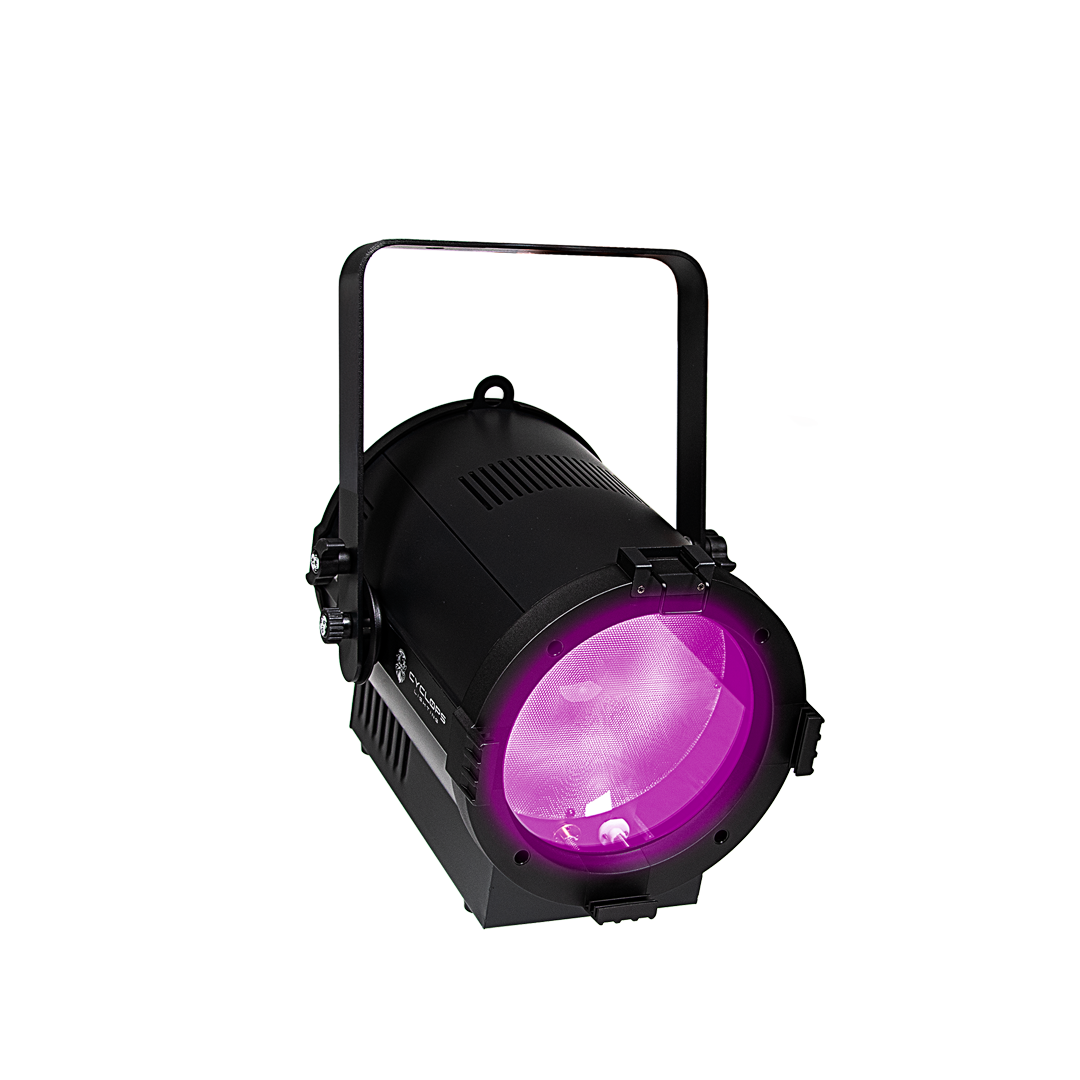

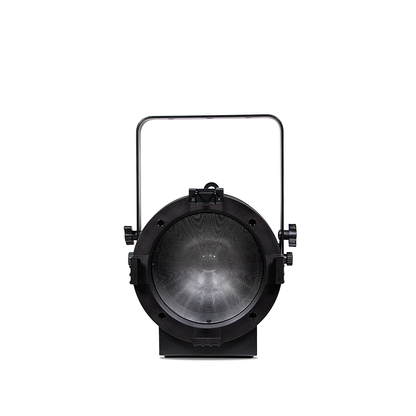

FR 200 - 200W White LED Fresnel with Motorized Zoom

FR 200 - 200W White LED Fresnel with Motorized Zoom

Brand: Cyclops Lighting

Categories: LED Fresnels

SKU: FR200W1560-5PIN

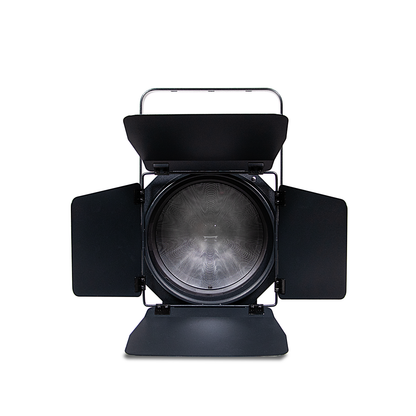

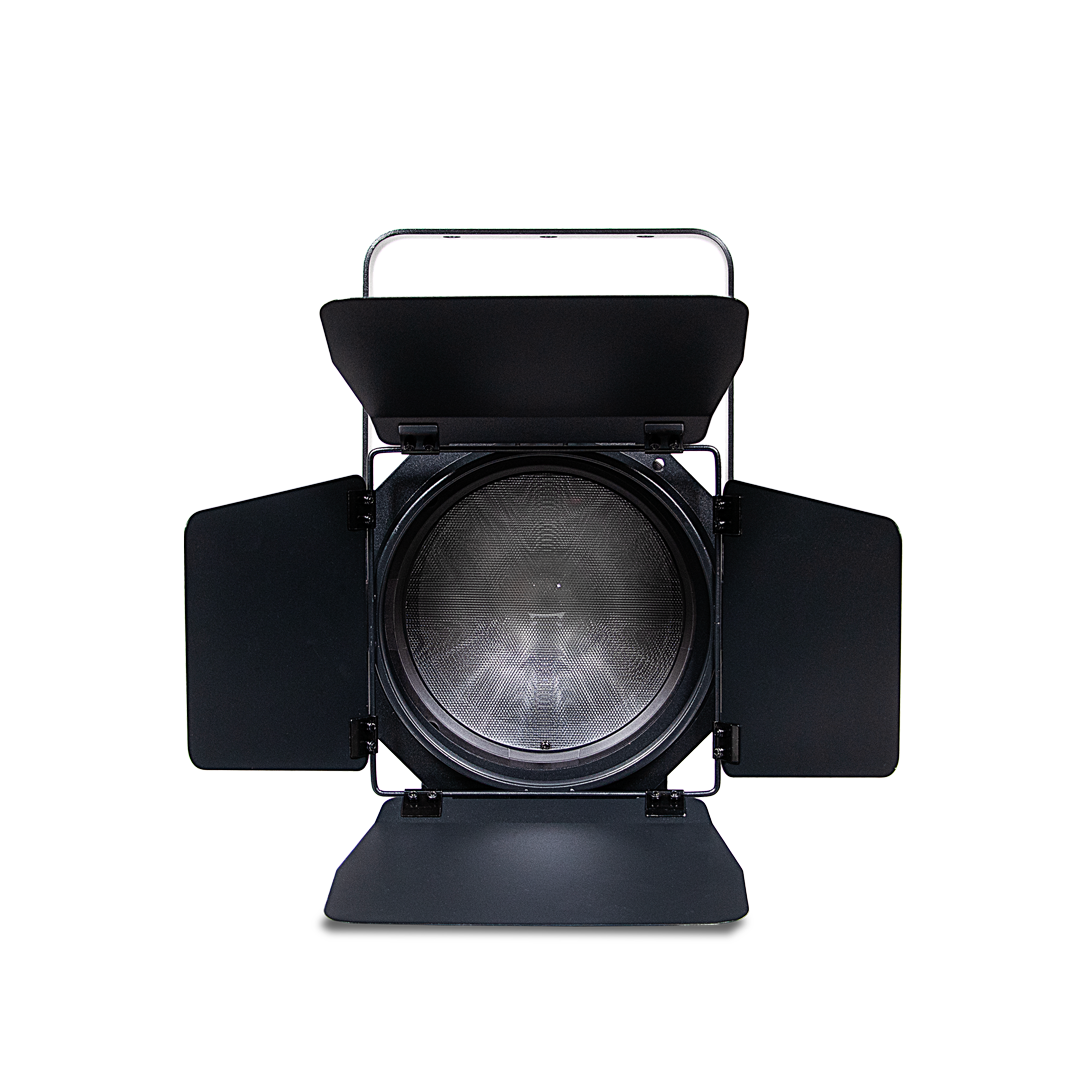

Engineered for the rigorous demands of multi-purpose theatres and broadcast studios, the FR 200 is a high-output LED fresnel delivering exceptional optical precision and ultimate design versatility. At the core of the fixture is a potent 200W COB LED—available in 5600K Cool White, 3200K Warm White, or full-spectrum RGBW configurations—paired with a precision 15° to 60° motorized zoom system. This combination ensures a remarkably uniform field, delivering smooth, edge-to-edge washes and tight, punchy beams without hot spots. With an exceptional Color Rendering Index (CRI of 96), the white-light configurations guarantee immaculate skin-tone reproduction and strict color fidelity, while the RGBW variant offers sophisticated color synthesis. Designed for professional workflows, the FR 200 features native RDM capability for streamlined remote device management, and includes robust, rotatable four-leaf barndoors for meticulous beam-shaping and spill control.

Color Engine: Warm White

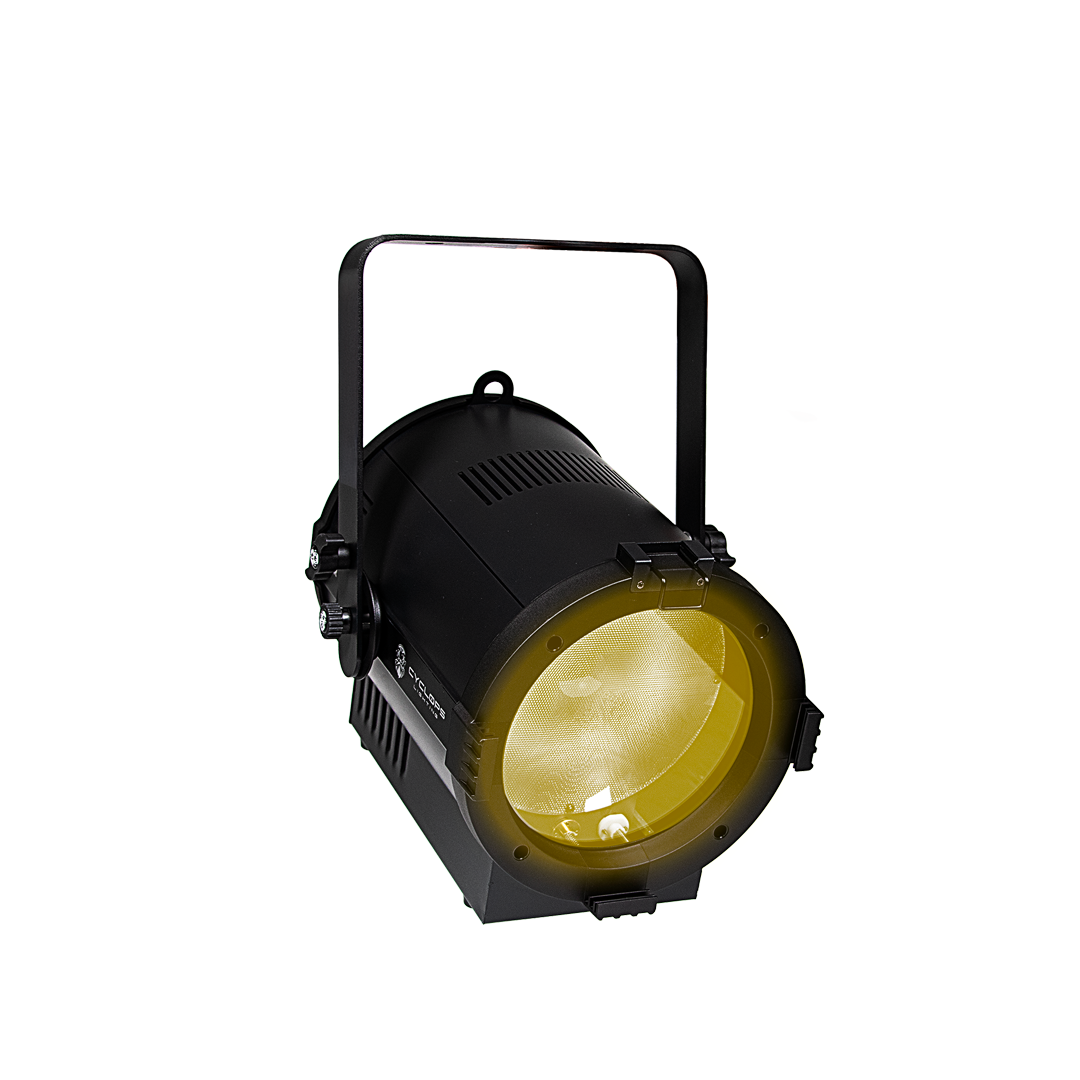

Warm White

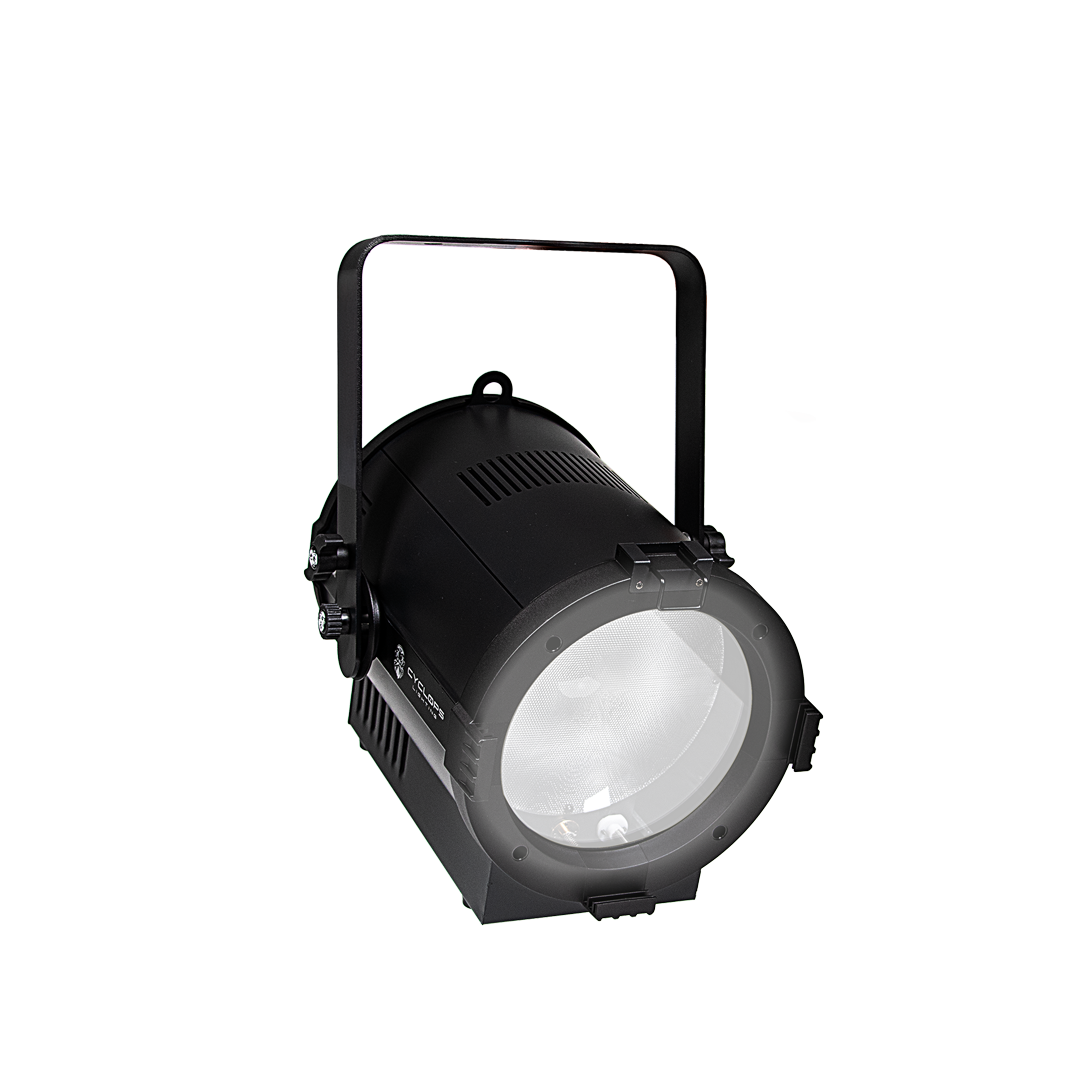

Cool White
RGBW

Product variants

Need Help:

Pairs well with

FR 200 - 200W White LED Fresnel with Motorized Zoom

Warm White

Dhs.2,140.79

Technical Specifications

Description

SOURCE

Light Source: 200 watts COB LED
LED Life Expectancy: 50,000 Hrs.
Color Temperature: 5600K (FR 200C), 3200K (FR 200W), RGBW (FR 200F)
CRI: 96 (FR 200C, FR200W), 75 Ra (FR 200F)
R9: >90 (FR 200C, 200W)
TLCI: 98 (FR 200C, 200W)

OPTICAL SYSTEM

Zoom: Electronic motorized zoom
Zoom Range: 15° – 60°
Light Output: 1820lux @ 5m (FR 200C, FR 200W), 2308lux @ 3m (FR 200F) at 15°
Lens: PMMA polymethyl methacrylate lens

DYNAMIC EFFECTS

Strobe effect

CONTROL & PROGRAMMING

Control Channels: 2, 3, 4, 5 CHs (FR 200C & 200W), 3CH (ARC.1), 4CH (AR1.D, ARC.2), 5CH (AR2.D), 6CH (AR2.S), 3CH (HSV), 12CH (STAG) (FR 200F)
Control Protocols: Rotary, DMX, RDM
Dimming Curves: 5 selectable dimming curves
LED Frequency: Video flicker free with selectable PWM

ELECTRICAL

Input Voltage: AC100-240V/50-60Hz

THERMAL MANAGEMENT

Operating Temperature: -5°C / 45°C
Temperature Control: Intelligent temperature control
Fan: Silent operation

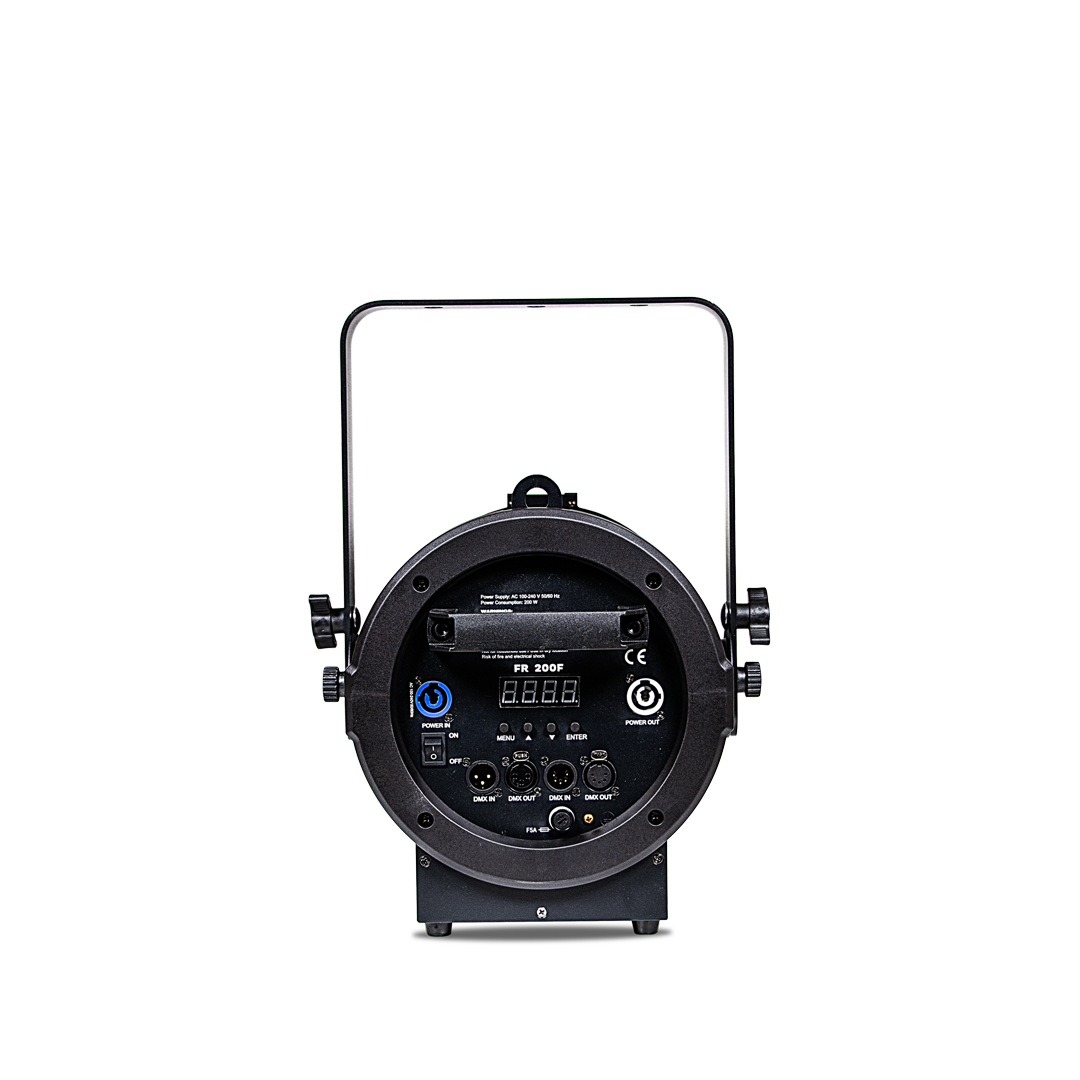

CONNECTIONS

Power connections: PowerCon In/Out
DMX connections: 3-pin and 5-pin XLR In/Out male and female

PHYSICAL

Dimensions: 315 x 296 x 330 mm
Net Weight: 8.5 Kg (including barndoors)
Housing: Aluminium
Housing Color: Black
IP Rating: IP20
