Technical Specifications

Description

SOURCE

  • Light source: 31 x 10 watts Tunable white COB LED
  • Color temperature: 2700K-7000K
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 25°
  • Light output: 69,000 Lux @ 2m @ 25°

KEY FEATURES

  • Strobe
  • Video flicker free with selectable PWM

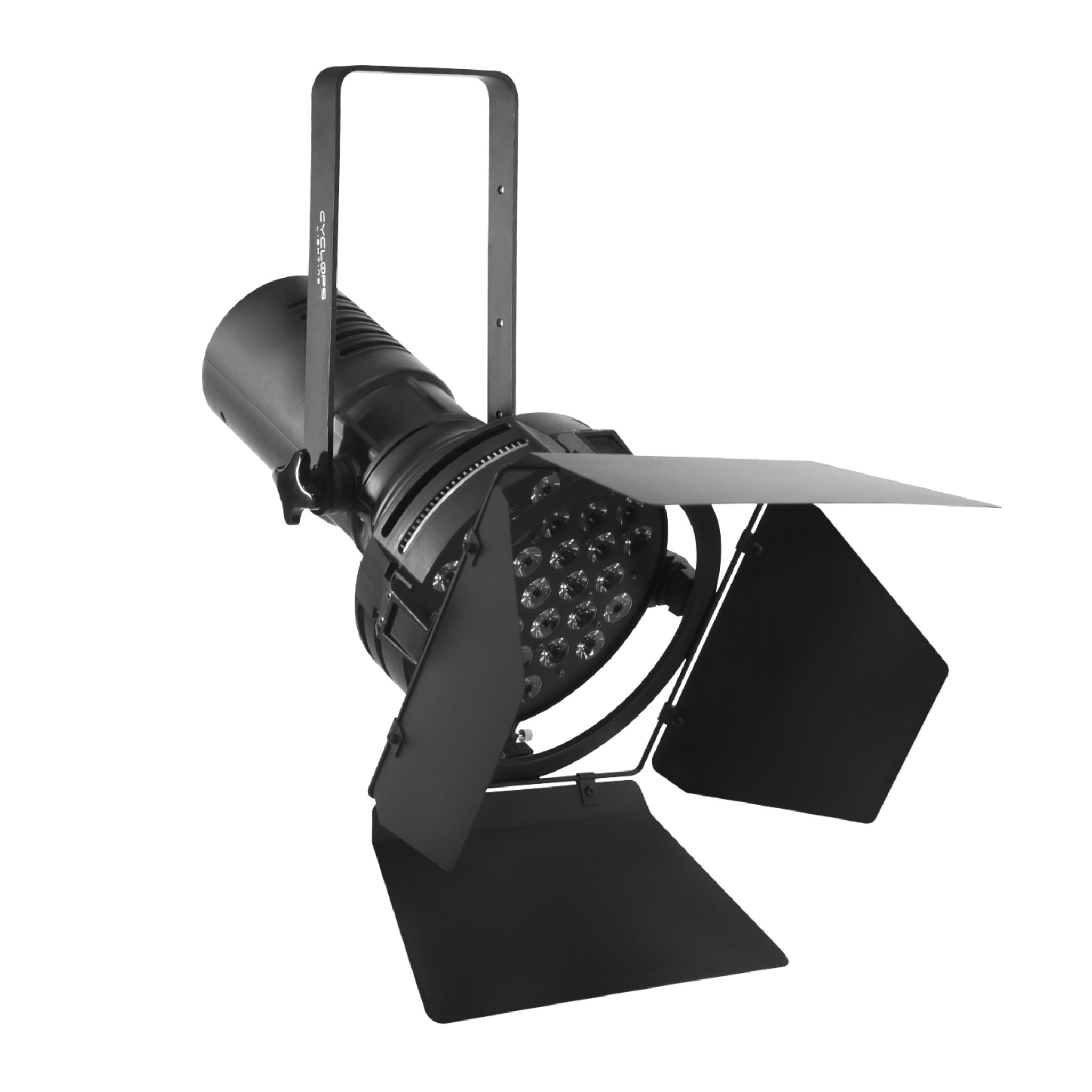

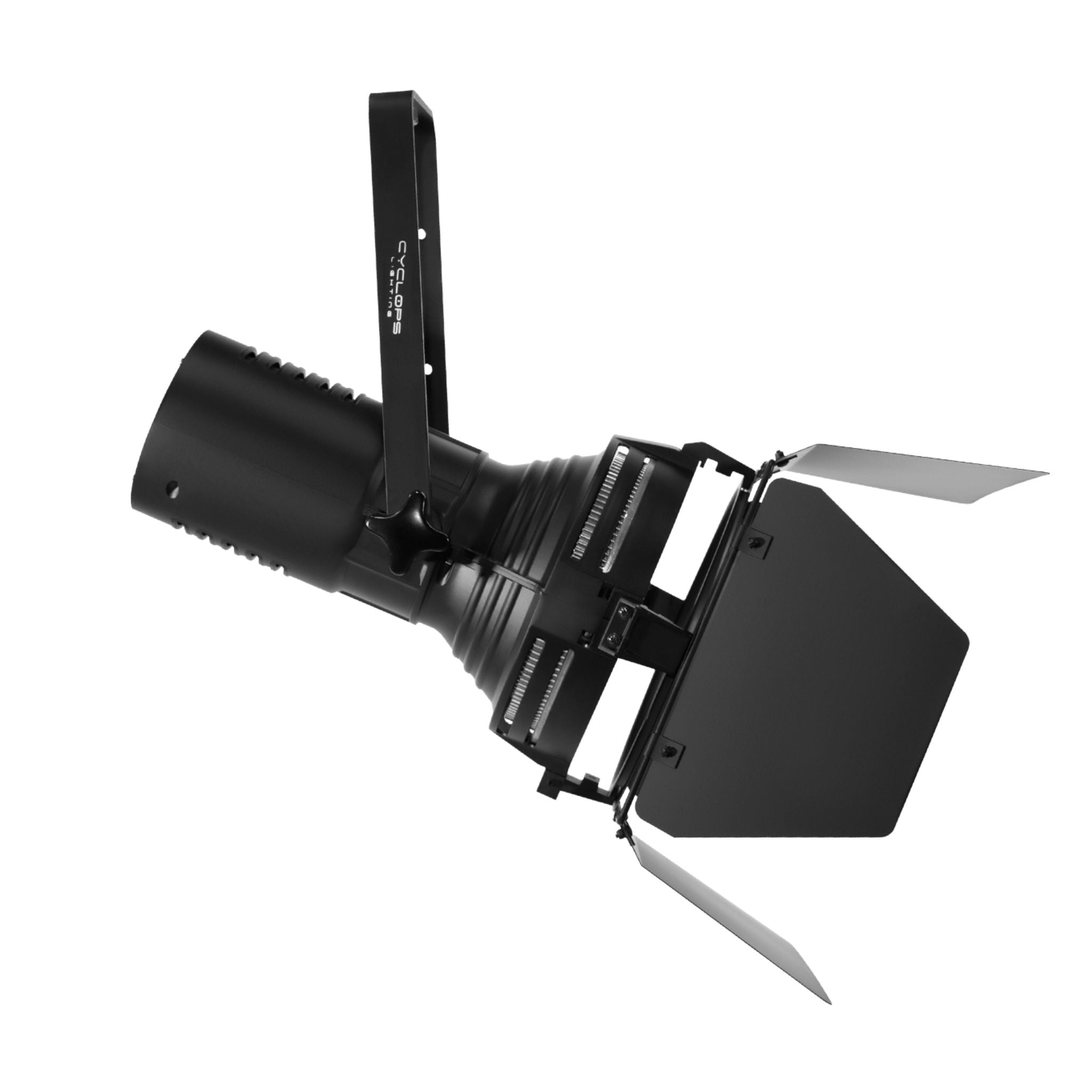

  • Barn doors included

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • Control channels: 4 CHs

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 240 watts

 CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 507 x 269 x 269mm
  • Net weight: 10 Kg
  • Color: Black
  • Housing: Die cast aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C
