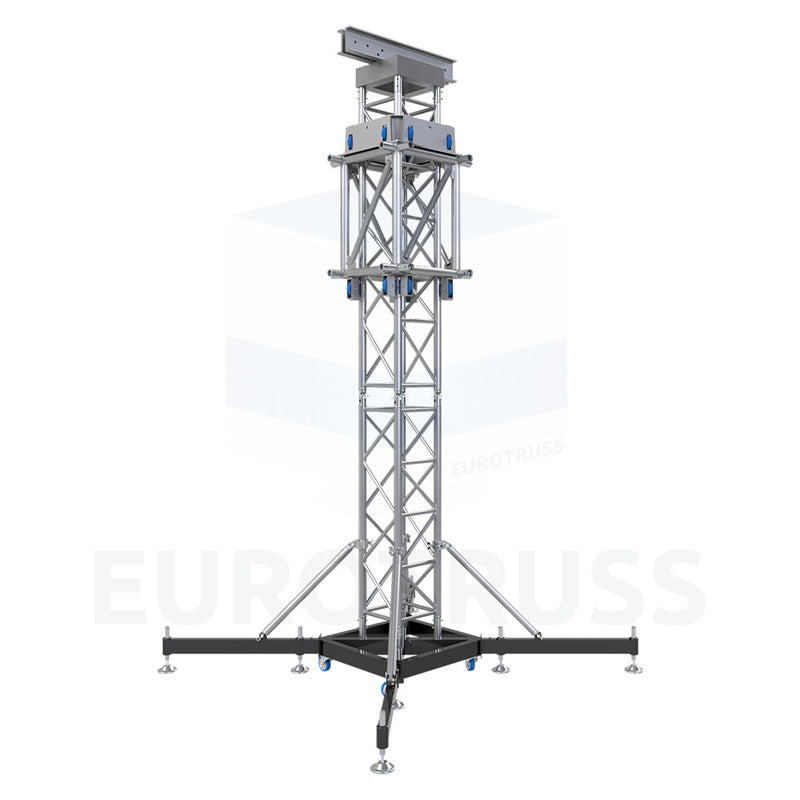

The TD44 Tower makes for an excellent vertical truss that allows the safe, quick lifting of regularly loaded horizontal HD/ FD44, FT, XT and TT Truss Rig and Roofs to their service height.

In terms of static, the TD44 Tower is designed for a high flexural- and pressure strain. Especially due to a roof this high, flexural strain is required.

Top Section:A new multifunctional top part for use of manual chain hoist as well as motorized hoist has been redesigned and built stronger.

Tower Truss:TD44 Tower Truss is a square 40cm (1,31ft) heavy duty truss with one on side integrated horizontal bracing for safe and easy climbing.Naturally this TD44 Truss has been made according to DIN 4113 and approved by TuV.

Hinge Set:A strong, safe and cost effective solution to erect the TD44 Tower.The hinge sets are 100mm (3,94in) long. Those half connectors with a hinged fork allow a very high vertical load. 4 Hinge sets (2 left and 2 right) are required per tower.

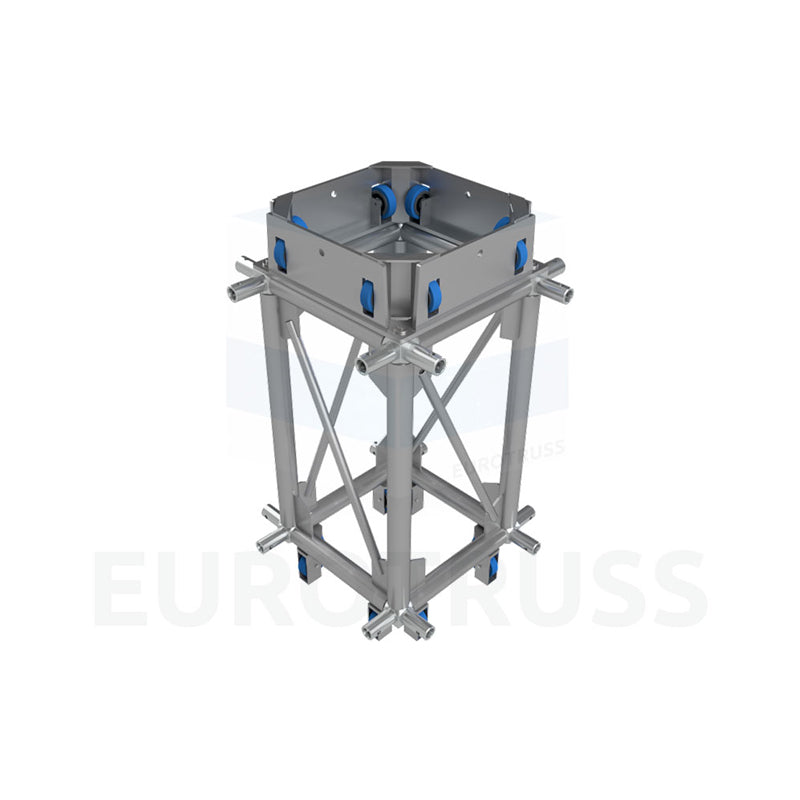

Sleeve Block:Standard sized XT and TT corner blocks with usage of 2 bolted sleeve plates guarantees a perfect geome- tric rig.These blocks make it possible to fit the TT / XT / FT100 Truss to all four sides by using bolted receivers.The upper sleeve plate is equipped with an integrated hanging point.The standard HD/FD44 sleeve blocks have predestined welded receivers on 3sides.

Base:Steel Base on wheels available with short outriggers and long outriggers in combination with stabilizer bars.
