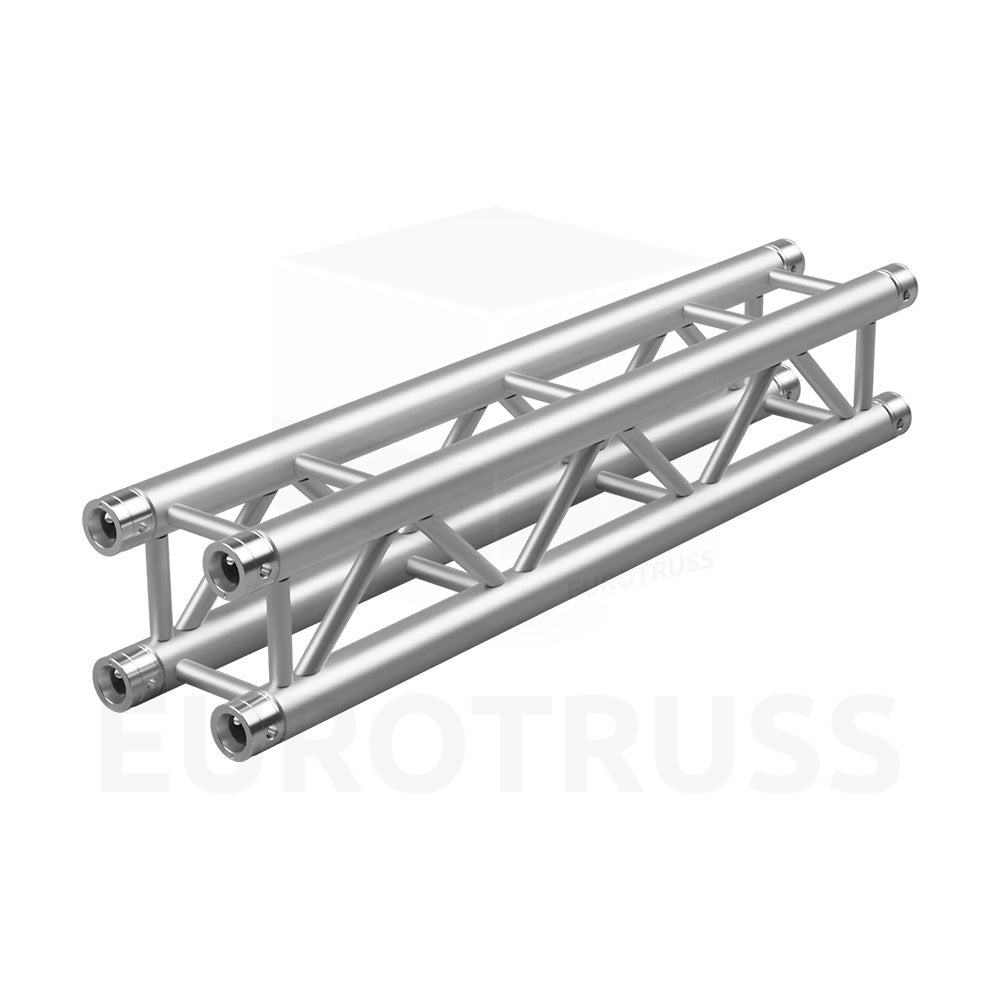

New added to the range is a box truss with heavy-duty ingredients but limited in size.

The HD24 is only 195x195mm and therefore perfect to use where low height but medium to heavy loads are needed up to free spans of 14m. The truss is made of 50x3mm main tube, build with the standard conical connector and with its small size, the perfect truss for minimum storage and trucking space.

The horizontal pin position assures a fast and easy setup. Corner Blocks are available.

Made with the fast connection system and approved according to the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

Technical Specifications:

• Height: 195 mm / 7.7 in
• Width: 195 mm / 7.7 in
• Main Tube: 50 x 3 mm / 1.91 x 0.12 in
• Braces: 20 x 2 mm / 0.78 x 0.12 in
• Weight: ~5 kg/m / 3.35 lbs/ft
• Pin Position: Horizontal
• Material: EN AW-6082 T6
• Connection: CS1-CON
