Key Features

• Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input which can be routed to dual HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Dual HDMI outputs with video scaling
• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode
• Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• Features audio mixer with independent level adjustment
• Analogue audio embedding
• MIC input supports line level, 48V Phantom power or 1ch balanced / un-balanced audio
• Web interface module for control and configuration of switch
• Control via front panel, IR, RS-232 and TCP/IP
• HDCP 2.2 compliant with advanced EDID management

Specifications

• Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Display Port™, 1 x VGA
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 1 x analogue left / right audio (3.5mm stereo jack)
• MIC Input Connectors: 1 x 3-pin Phoenix connector
• Audio Output Connectors: 1 x RCA (S/PDIF), 2 x RCA analogue left / right
• RS-232 Serial Ports: 1 x 9-pin RS-232 connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 1 x 3.5mm stereo jack
• Product Upgrade: 1 x Micro USB female
• Rack-Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x H x D): 344mm x 44mm x 168mm, without feet
• Shipping Weight: 3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/1A DC

Box Contents

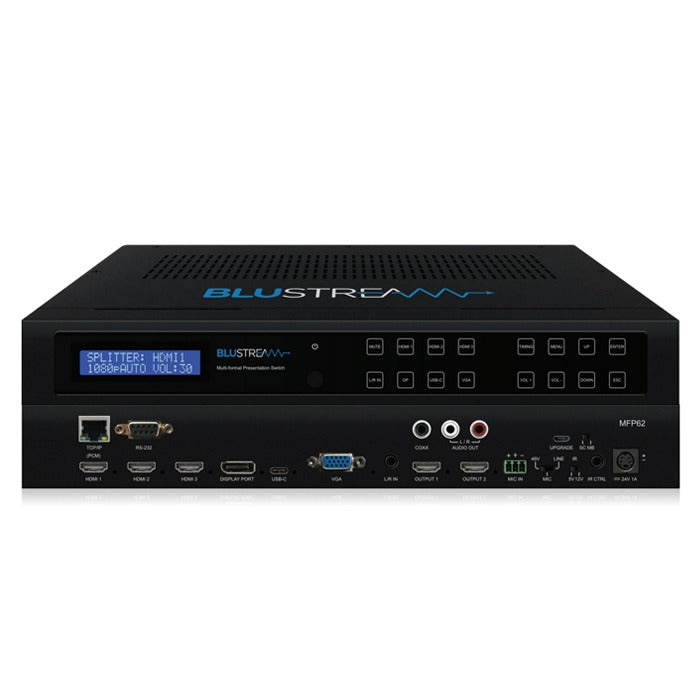

• 1 x MFP62
• 1 x Remote Control
• 1 x 24V/1A DC Power Supply
• 1 x Rack Mounting Kit
• 1 x IR Receiver
• 1 x Quick Reference Guide
