Key Features

• Features 4 x HDMI inputs which can be switched to single HDMI output
• Auto-switching (HPD sensing) capabilities can be enabled / disabled
• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, RS-232 and IR
• Advanced EDID management

Specifications

• Video Input Connectors: 4 x HDMI Type A
• Video Output Connectors: 1 x HDMI Type A
• Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
• IR Input Ports: 1 x 3.5mm stereo Jack
• RS-232 Serial Port: 1 x DB-9, female
• Casing Dimensions (W x H x D): 196mm x 41mm x 94mm
• Dimensions including connections (W x H x D): 196mm x 41mm x 104mm
• Shipping Weight: 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC

Box Contents

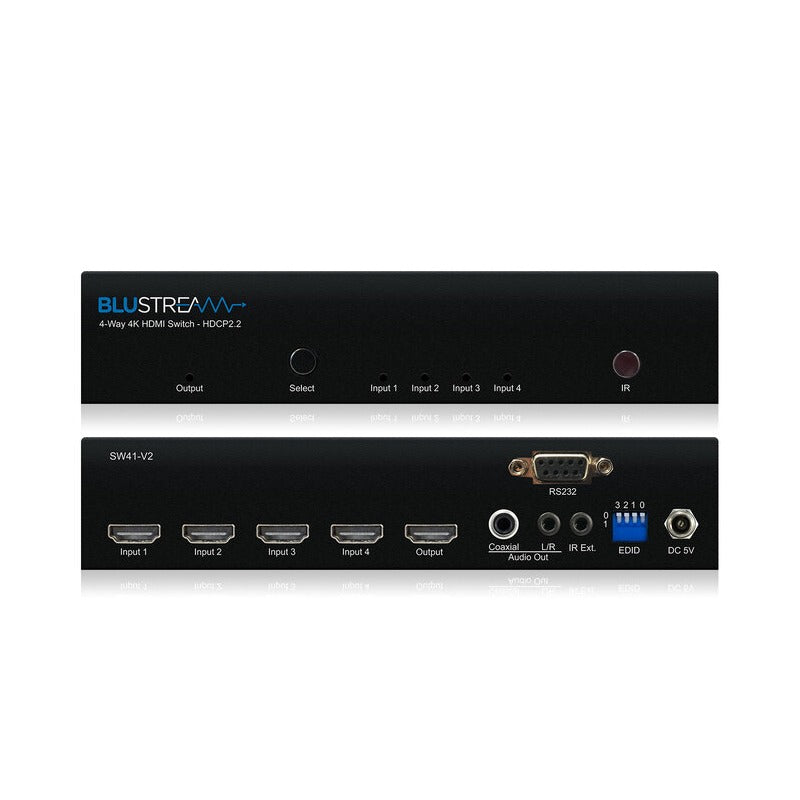

• 1 x SW41AB-V2
• 1 x SW41 Remote
• 1 x 5V/2A DC Power Supply
• 1 x User Manual
