Box Contents

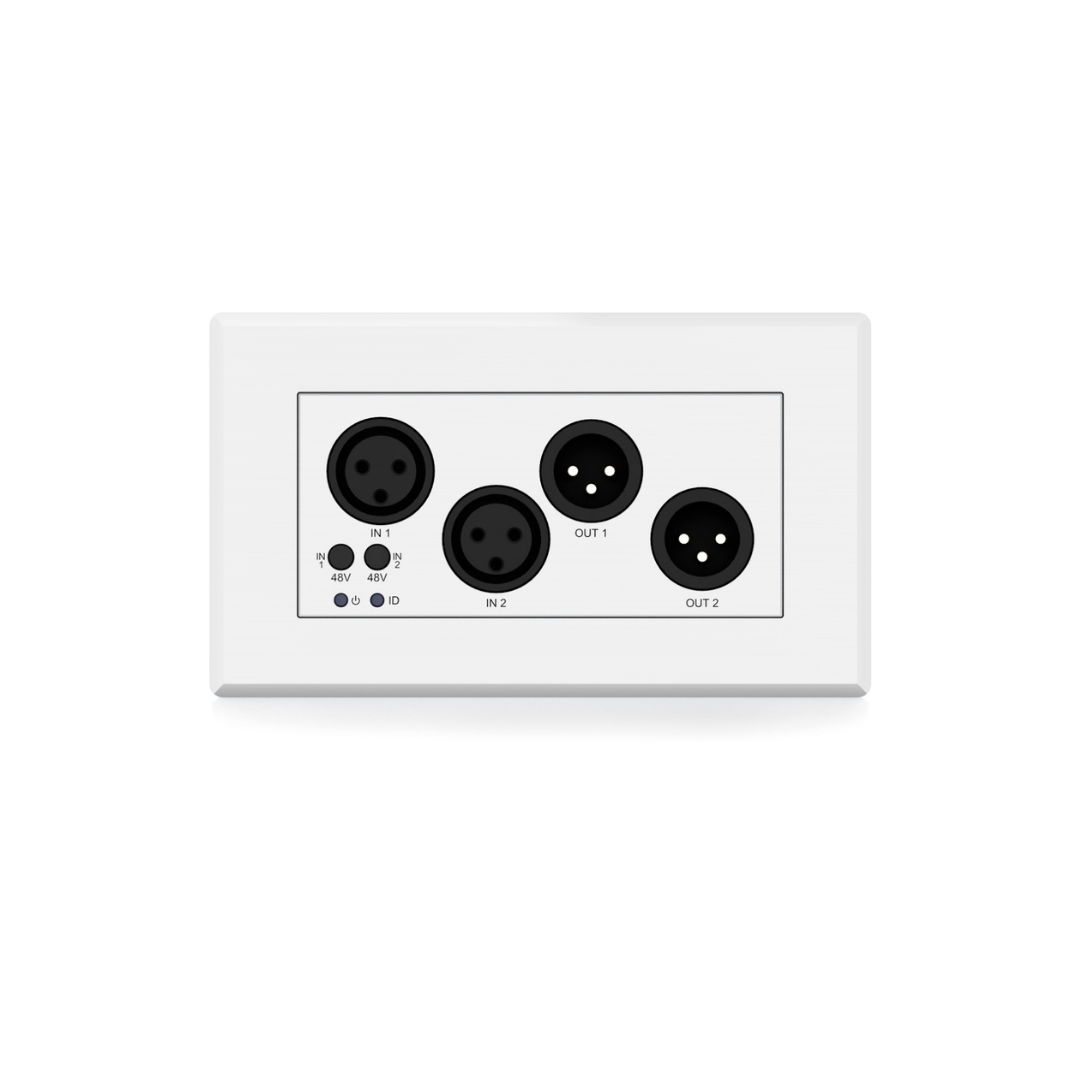

• 1 x DA22XLR-WP-EU-V2
• 1 x Magnetic Faceplate
• 1 x USB Serial UART Programming Cable
• 1 x Quick Reference Card

Key Features

• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V/0.5mA Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +20 dBu to -28 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility

Specifications

• Module Dimensions (W x H x D): 136mm x 76mm x 45mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 5mm
• Cut Out Dimensions (W x H x D): 109mm x 50mm x 36mm
• Mounting hole spacing: UK 121mm CTC, EU 60mm CTC
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gang
• Shipping Weight: 0.42kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af PoE or 12V/1A DC 2-Pin Phoenix connector
• Audio Input Connectors: 2 x Analogue balanced / unbalanced 3-Pin XLR connector
• Audio Output Connectors: 2 x Analogue balanced / unbalanced 3-Pin XLR connector
• Network Connectors: 1 x PoE Dante® Ethernet connection (RJ45)
• Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)
• Firmware Upgrade: 1 x Micro-USB
