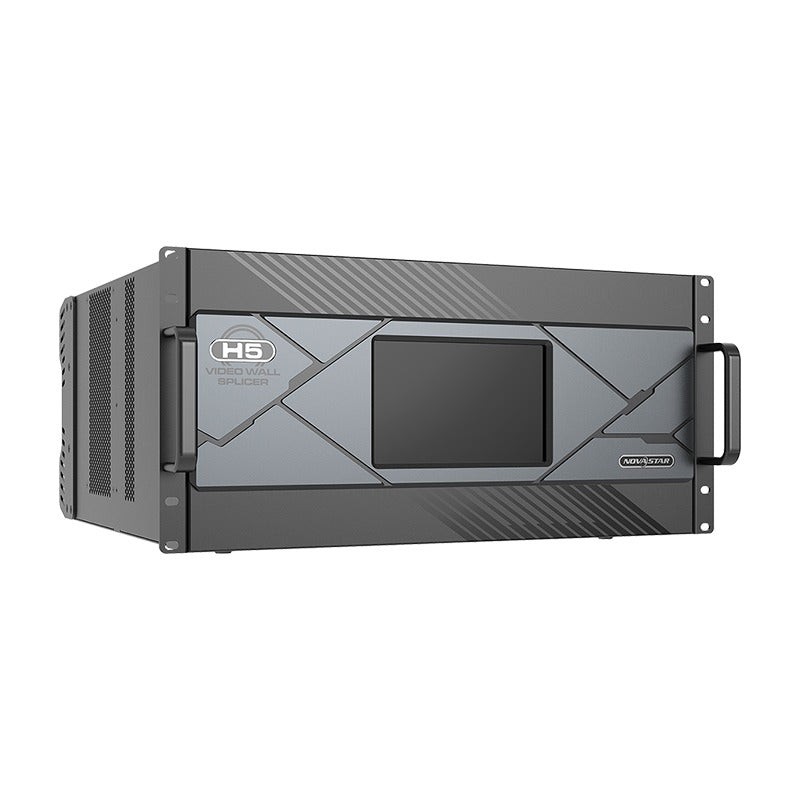

H5 - All-in-one Video Splicing Processor

Name: H5 - All-in-one Video Splicing Processor
Brand: NovaStar
SKU: H5
Price: 4810.44 AED
Availability: InStock

Brand: NovaStar

Categories: H Series, Novastar Video Control, Splicers and Switchers

SKU: H5

The H5 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The H5 can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards. Thanks to excellent features and stable performance, the H5 can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic
management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.

Product variants

Available

Need Help:

Pairs well with

H5 - All-in-one Video Splicing Processor

Dhs.4,810.44

Technical Specifications

Description

Based on the powerful hardware FPGA system architecture, with a modular and plug-in design, the H5 features a stable and highly efficient pure hardware architecture, and provides a variety of connector modules for flexible and personalized configuration, allowing for easy maintenance and low failure rate. The H5 provides the industry-standardinput connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs. The H5 also provides two kinds of LED 4K sending cards, allowing for the backup between the OPT ports and Ethernet ports as well as ultra-long distance transmission. Moreover, the H5 supports multi-screen and multi-layer management, input and output EDID management and monitoring, input source renaming, BKG and OSD settings and more, bringing you a rich image constructionexperience.

In addition, the H5 adopts the B/S architecture and supports cross-platform, cross-system access and control without the need to install an application program. On a Windows, Mac, iOS, Android or Linux platform, online collaboration of multiple users is supported and the Web page response speed is very fast, which greatly improves on-site setup efficiency. What’s more, the H5 supports online firmware update, allowing for easy hardware update on a PC.

Technical Specifications:

Model: H5
Rack Unit: 5U
Max. Input Cards: 10
Max. Input Channels: 40
Max. Output Cards: 3
Max. Output Channels: 12
Max. Loading Capacity:- LED 4K sending card: 39 million pixels- H_4xfiber sending card: 62.4 million pixels
Max. Layers: 48
Electrical Specifications:- Power connector: 100–240V~, 50/60Hz, 10A–5A Note: The H5 comes with a single power supply. A redundant power supply is optional.- Power consumption 400 W
Operating Environment:- Temperature: 0°C to 45°C- Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: –10°C to +60°C
Environment: Humidity: 0% RH to 95% RH, non-condensing
Physical Specifications:- Dimensions: 482.6 mm × 532.8 mm × 228.2 mm- Net weight: 17 kg (chassis)- Gross weight: 21.3 kg (chassis)
Noise Level ( typical at 25°C /77°F):＜45 dB (A)
Packing Information:- Packing box: 780 mm × 615 mm × 345 mm- Accessories: 1x Power cord | 1x RJ45 Ethernet cable| 1x Grounding cable | 1x HDMI cable | 1x Quick Start Guide | 1x Certificate of Approval | 1x Safety Manual | 1x Custom Letter
