Key Features

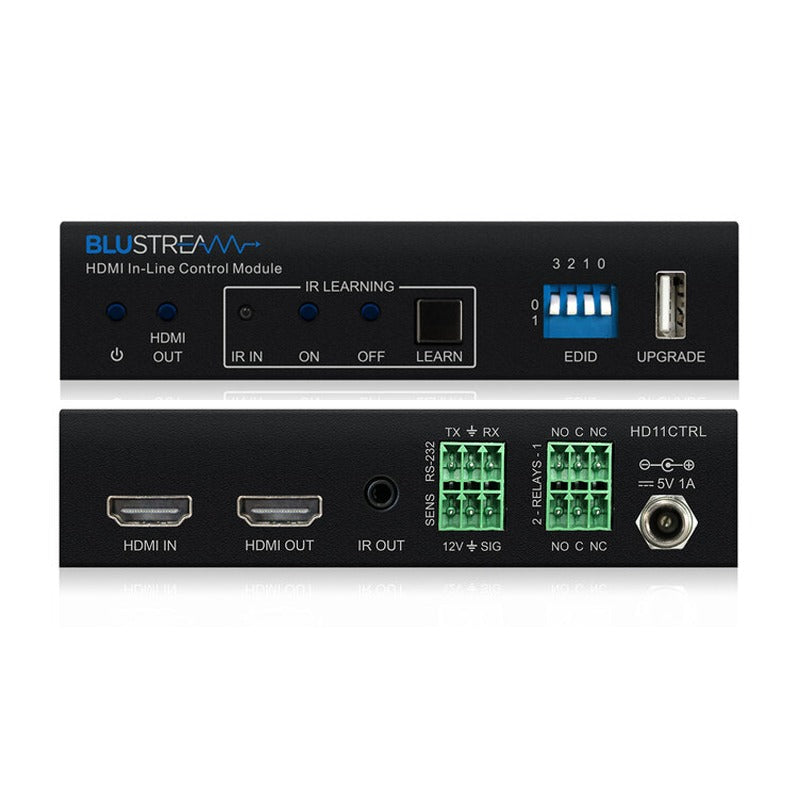

• Automated in-line HDMI control module
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports resolutions up to 4K UHD 60Hz 4:4:4 8-bit (18Gbps)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
• Automatic display On / Off control via CEC, RS-232 or IR
• Relay control for interface to third party devices such as automated projector screens
• Contact closure input for connection from third party devices such as sensors or switches
• HDCP 2.2 compliant with advanced EDID management

Specifications

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Output Port: 1 x 3.5mm mono jack
• Relay Control: 2 x 3-pin Phoenix connector
• Sensor Input: 1 x 3-pin Phoenix connector
• EDID: 4-pin DIP switch
• Product Upgrade: 1 x USB Type A female
• Casing Dimensions (W x H x D): 120mm x 28mm x 84mm
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
• Power Supply: 5V/1A DC

Box Contents

• 1 x HD11CTRL
• 1 x 5V/1A DC Power Supply
• 1 x IR Emitter
• 1 x RS-232 Control Cable
• 1 x Mounting Kit
• 1 x Quick Reference Guide
