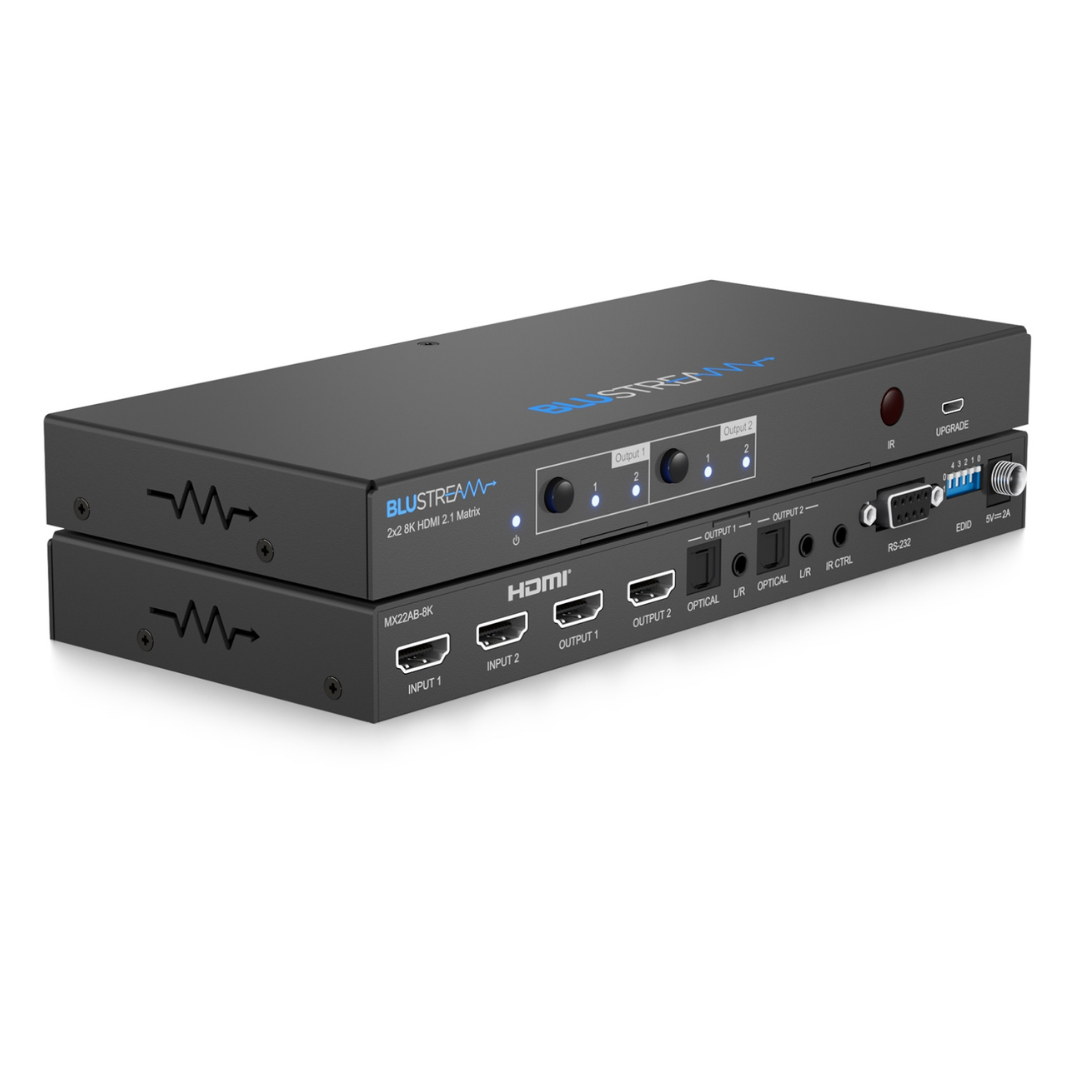

MX22AB-8K - 2x2 8K HDMI 2.1 Matrix

Name: MX22AB-8K - 2x2 8K HDMI 2.1 Matrix
Brand: Blustream
SKU: MX22AB-8K
Price: 921.26 AED
Availability: OutOfStock

Brand: Blustream

Categories: Video Signal Distribution

SKU: MX22AB-8K

The MX22AB-8K HDMI2.1 matrix integrates source and display devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz and 4K 120Hz signals.

Independent routing of 2 x HDMI input sources to 2 x HDMI2.1 displays, the MX22AB-8K can auto-switch based on either detecting a 5V hot plug, or a new TMDS signal; or be manually controlled using RS-232, IR, or from the units front panel.

Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The MX22AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.

Product variants

Need Help:

Pairs well with

Technical Specifications

Description

Key Features

Features 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputs
Supports HDMI2.1 specification including HDR (40Gbps maximum)
Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Auto HDMI source switching via 5V and / or TMDS signal sensing
Manual HDMI source switching via front panel, IR and RS-232
Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
5V / 12V IR Compatible
HDCP 2.3 compliant with advanced EDID management

Specifications

Video Input Connectors: 2 x HDMI Type A, 19-pin, female
Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Audio Output Connectors: 2 x Optical (S/PDIF) & 2 x Analogue audio L/R (3.5mm stereo jack)
IR Input Ports: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x DB9, female
Dimensions (WxDxH): 218mm x 94mm x 23mm, including connections, without feet (removable)
Shipping Weight: 1.0kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 1 x 5V/2A DC
