The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX400 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX400 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Key Features:

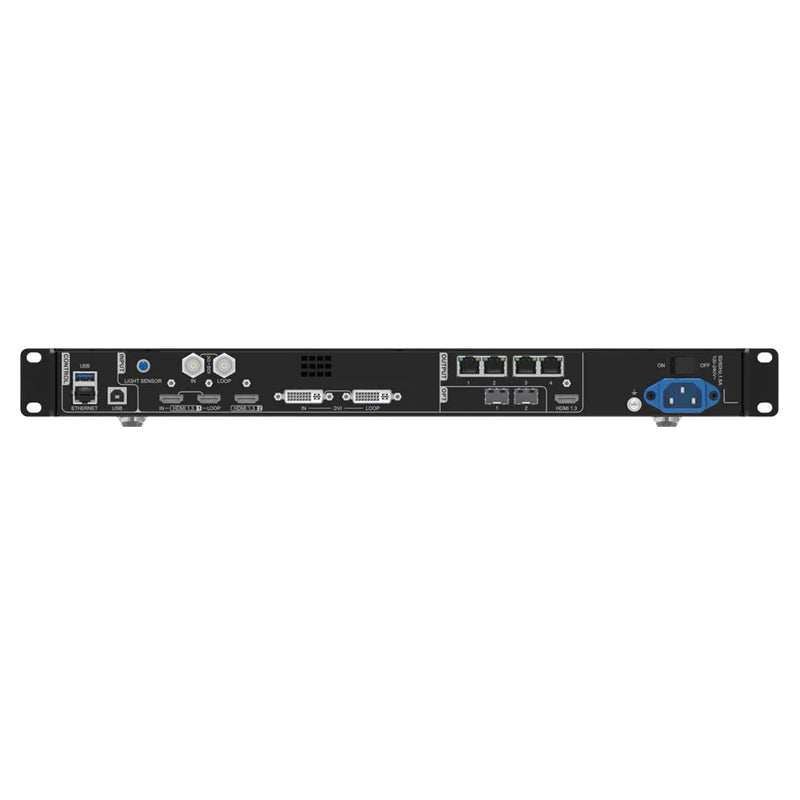

• Input connectors− 1x HDMI 1.3 (IN & LOOP)− 1x HDMI 1.3− 1x DVI (IN & LOOP)− 1x 3G-SDI (IN & LOOP)− 1x optical fiber port (OPT1)
• Output connectors− 4x Gigabit Ethernet portsA single device unit drives up to 2.6 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.− 2x Fiber outputsOPT 1 copies the output on 4 Ethernet ports.OPT 2 copies or backs up the output on 4 Ethernet ports.− 1x HDMI 1.3For monitoring or video output
• Self-adaptive OPT 1 for either video input or sending card outputThanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
• Audio input and output− Audio input accompanied with HDMI input source− Audio output via a multifunction card− Output volume adjustment supported
• Low latencyReduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
• 2x layers− Adjustable layer size and position− Adjustable layer priority
• Output synchronizationAn internal input source can be used as the sync source to ensure the output images of all cascaded units in sync.
• Powerful video processing− Based on SuperView III image quality processing technologies to provide stepless output scaling− One-click full screen display− Free input cropping
• Automatic screen brightness adjustmentAdjust the screen brightness automatically based on the ambient brightness collected by the external light sensor.
• Easy preset saving and loadingUp to 10 user-defined presets supported
• Multiple kinds of hot backup− Backup between devices− Backup between Ethernet ports
• Mosaic input source supportedThe mosaic source is composed of two sources (2K×1K@60Hz) accessed to the OPT 1.
• Up to 4 units cascaded for image mosaic
• Three working modes− Video Controller− Fiber Converter− Bypass
• All-round color adjustmentInput source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
• Pixel level brightness and chroma calibrationWork with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality.

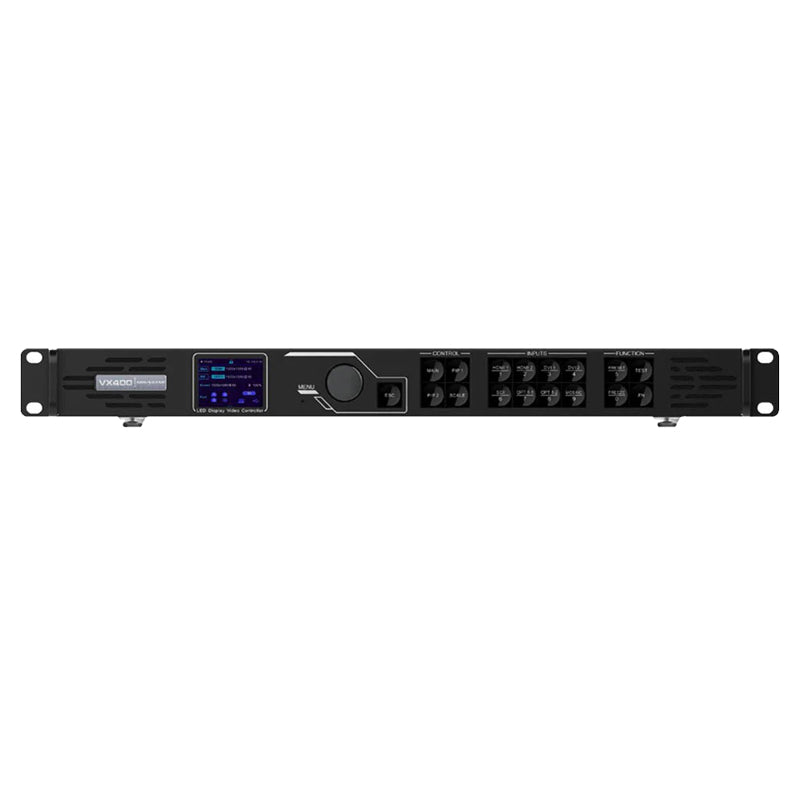

• Multiple operation modesControl the device as you wish via V-Can, NovaLCT or device front panel knob and buttons.
