WMF72 - Advanced Wireless Multi-Format Presentation Switch

Name: WMF72 - Advanced Wireless Multi-Format Presentation Switch
Brand: Blustream
SKU: WMF72
Price: 4606.28 AED
Availability: InStock

Dhs.4,606.28

Brand: Blustream

Categories: HDMI Distribution, Video Signal Distribution

SKU: WMF72

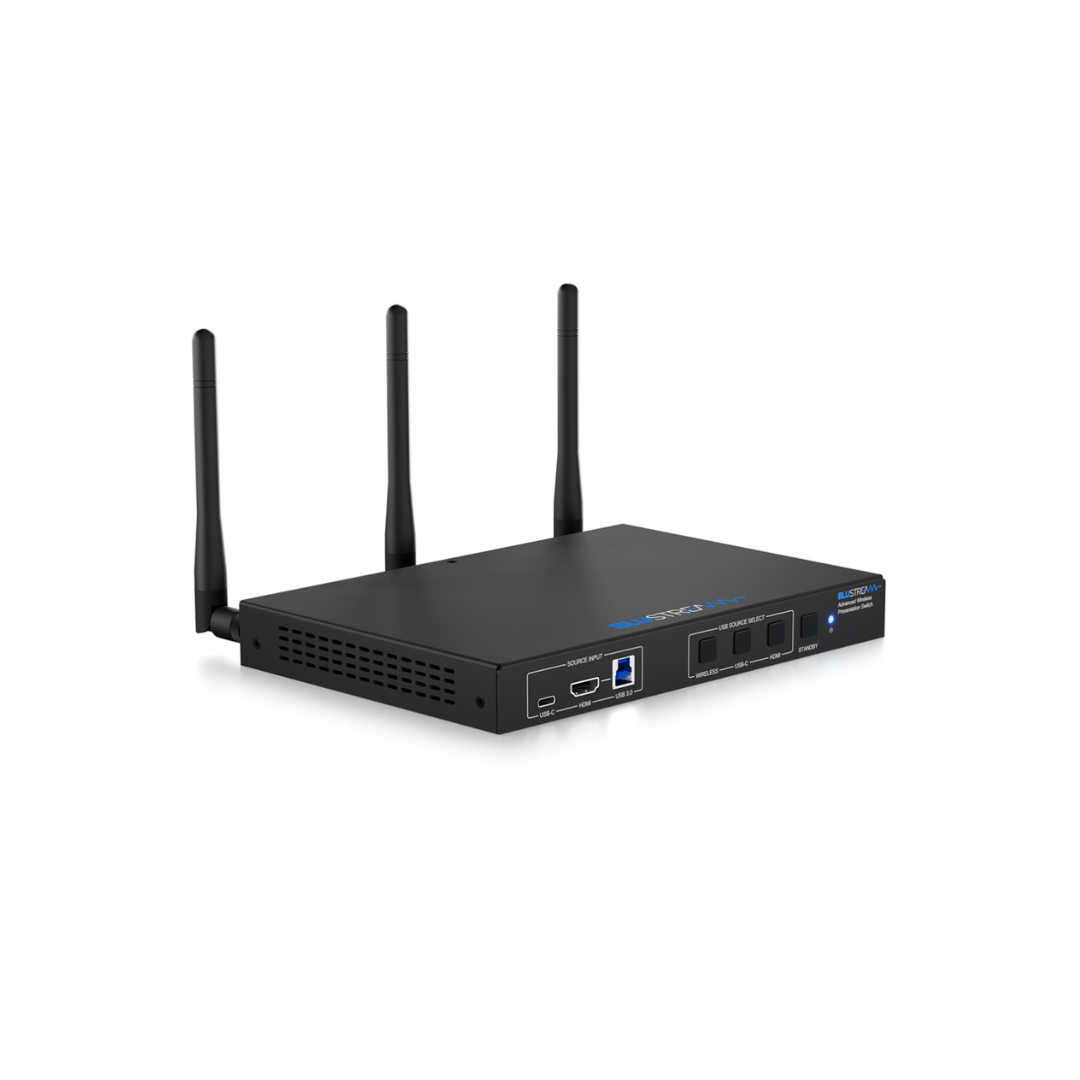

The WMF72 is an advanced 4K multi-format presentation switch featuring wired HDMI and USB-C, AirPlay, Miracast® and Chromecast® inputs to dual HDMI outputs.
The WMF72 provides enhanced features including dual HDMI output for mirrored or managed source control with multiview presentation, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection. The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.
The WMF72 is also compatible with Blustream WMF-USBC-D and WMF-HDMI-D plug & play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom or huddle-space application.

Product variants

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

WMF72 - Advanced Wireless Multi-Format Presentation Switch

Dhs.4,606.28

Technical Specifications

Description

Box Contents

1 x WMF72
1 x 24V/5A DC power supply
1 x 3-pin phoenix connector (RS-232)
1 x 5-pin phoenix connector (Audio)
3 x Antenna
1 x Mounting kit
1 x Quick Reference Card

Key Features

4K multi-format multi-view presentation switch
Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
Dual HDMI output supports mirror or desktop extension for managed source control within advanced video conferencing set-ups
Multi-view presentation with up to 5 concurrent video signals with fully configurable screen layout
In-built video scaler with output timing up to 4K 60Hz 4:4:4
USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
Dual LAN connection for integration to existing network infrastructures
Supports USB camera and MIC over WiFi (1080p 30Hz)
Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®*
Audio breakout to balanced / unbalanced analogue L/R audio
Web interface module for control and configuration of switch
OSD control with preview function
Whiteboard and screen overlay annotation feature
Control via front panel, RS-232 and TCP/IP with manual or auto source selection

Specifications

Video input: 1 x HDMI Type A, female, 1 x USB Type C, female
Video Output Connectors: 2 x HDMI Type A, 19-pin, female (Main @ 4K max, sub @ 1080p max)
Audio Output Connectors: 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
RS-232 serial port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 2 x RJ45, female (1000Mbps x2)
USB Connectors: 3 x USB3.0 Type A female, 1 x USB3.0 Type B female
USB Touchback Connectors: 2 x USB2.0 Type A female
USB Pairing Connectors: 1 x USB2.0 Type A female, 1 x USB-C2.0 Type C
WiFi - 3 x SMA, female connector, MIMO antennas (2.4G & 5G, WiFi IEEE 802.11 b/g/n/ac up to 1200Mbps)
WiFi Encryption - AES WPA PSK, WPA2 PSK
Casing Dimensions (W x H x D): 220mm x 27mm x 161mm (excluding antennas)
Shipping Weight: 2kg
Operating Temperature: 0°C to 45°C (32°F to +113°F)
Storage Temperature : -20°C to 70°C (-4°F to +158°F)
Power Supply: 24V/5A DC
