DECO-40-LP -2 x Ceiling Speaker, 2-way 4" Coaxial, 70 Hz

Product Description

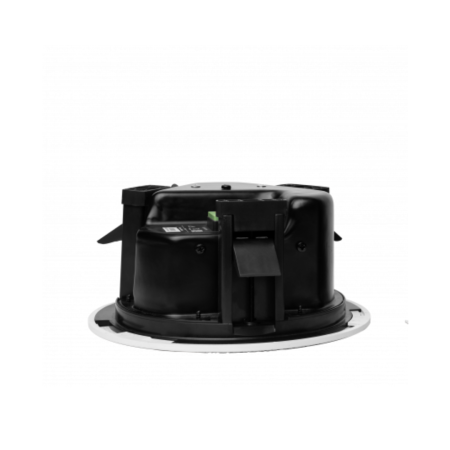

Its compact design, with a total depth of 110 mm (4.3 in) and recessed back-can depth of just 99 mm (3.9 in), allows straightforward installation in ceilings with minimal clearance. Measuring 220 x 220 x 110 mm and weighing 2.7 kg (5.9 lb), it strikes a balance between size, power, and aesthetic discretion.

For optimal performance, pair the DECO-40-T-LP with the INTEGRAL-A402 or INTEGRAL-A404 amplifiers. Using the Integral Matrix and processors, fully compatible with ALMA™, enhances the speakers’ capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and maximum audio quality.

Features

• 2-way 4″ Coaxial High-Performance Ceiling System.
• Low Profile Design: 99 mm depth for shallow ceilings.
• Multi-tap transformer 8 ohm & 70V/100V.
• Auto-locking tabs for secure, hands-free mounting.
• Front selector for hassle-free power adjustments.
• Frameless grille design, available in white or black.

Applications

• Professional Installation Systems
• Houses of Worship
• Auditoriums/Theaters
• Hotel Ballrooms and Meeting Rooms

 Technical Specifications:

  Performance

• Frequency Range (-10 dB) 110 Hz – 20 kHz
• Nominal Impedance 8 ohms
• Conical Coverage: 125º
• Transformer Taps 70 V: 8 Ω / 5 W / 10 W / 15 W
• Transformer Taps 100 V: 8 Ω / 10 W / 20 W / 30 W
• RMS Power Handling: 50 W
• Peak Power Handling: 200 W
• On-axis Sensitivity 1W/1 m: 87 dB SPL
• Maximum Peak SPL at 1 m: 110 Db

 Connectors

• Audio Input Connector: 4-way Phoenix 3.8 mm

 Enclosure

• Enclosure Construction: Steel
• Enclosure Geometry: Round
• Cut Out Diameter: 185 mm (7.3 in)
• Depth: 220 mm (8.7 in)

 Shipping

• Dimensions (H x W x D): 220 x 220 x 220 mm 8.7 x 8.7 x 8.7 in
• Net Weight: 2.7 kg (5.9 lb).
