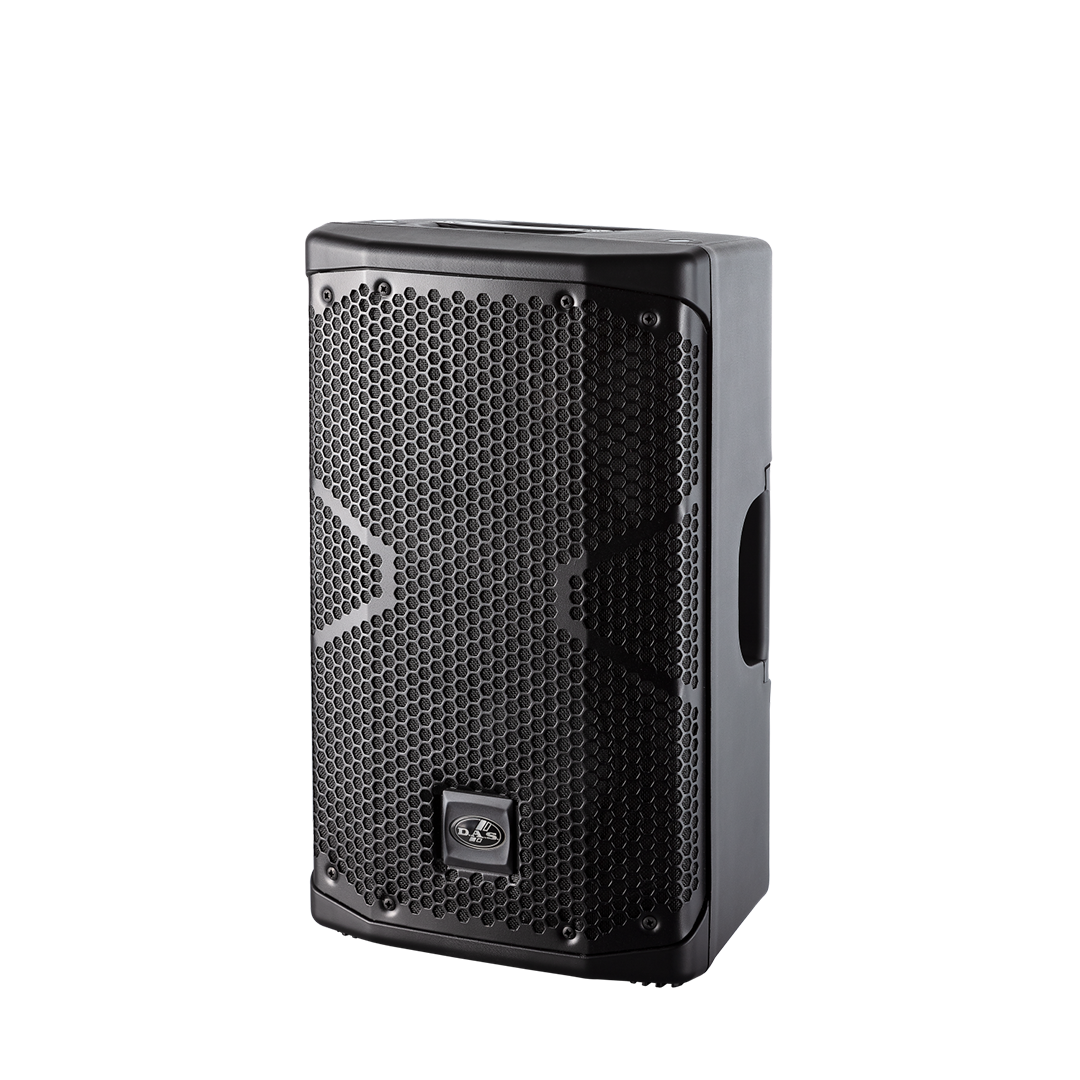

The system features a powerful 8″ transducer with 2″ voice coil for the reproduction of mid and low frequencies. For the high frequencies, the system features a compression driver with a 1″ voice coil, offering exceptional performance. This configuration ensures exceptional clarity and outstanding performance. The diffuser designed to provide a 90º x 90º dispersion guarantees together with the rest of the components a wide and uniform sound dispersion.

ALTEA-408 is made of high-quality polypropylene, making it an extremely rugged and lightweight system, weighing only 9.4 kg (20.7 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.

Performance

• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 90º
• Nominal Impedance: 8 ohms
• RMS Power Handling: 150 W
• Peak Power Handling: 600 W
• On-axis Sensitivity (1 W / 1 m): 94 dB SPL
• Maximum Peak SPL at 1 m: 122 dB

• Recommended Amplifiers:
• INTEGRAL-A402
• INTEGRAL-A1002
• INTEGRAL-A1004

Connectors

• Audio Input Connector: 1 x speakON NL4
• Audio Output Connector: 1 x speakON NL4

• Enclosure Construction: Polypropylene
• Enclosure Geometry: Trapezoidal
• Rigging: M8 Rigging Points
• Color: Black
• Dimensions ( H x W x D ):
• 480 x 280 x 260 mm | 18.9 x 11.0 x 10.2 in
• Net Weight: 9.4 kg (20.7 lb)

Components

• LF Driver: 8GV
• HF Driver: M-32

Shipping

• Carton Dimensions ( H x W x D ):
• 550 x 350 x 340 mm | 21.6 x 13.8 x 13.4 in
• Shipping Weight: 11.3 kg (24.9 lb)
