Key Features

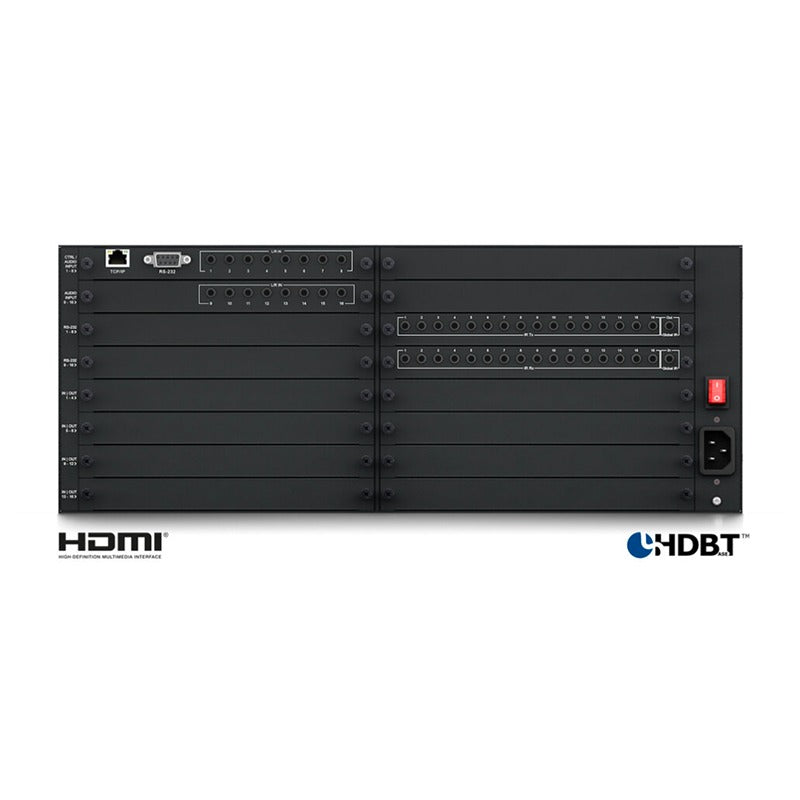

• Custom Pro Matrix with 12 x modular bays for population of input / output / control boards
• Supports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
• Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ Receivers
• Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ Receivers
• Optional Analogue and Digital Audio breakout board with line-level volume control
• Web browser interface for control and configuration of Matrix
• Control of Matrix via front panel, RS-232, TCP/IP, IR and Web GUI
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant

- 1080p @ 60Hz (for screens that do not support 4K)

- 4K 60Hz 4:2:0 (for screens that do not support full 18Gbps 4K 60Hz 4:4:4)

Specifications

• Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)
• RS-232 serial ports: 1 x 9-pin RS-232 connector
• IR Input ports: 16 x 3.5mm stereo jack
• IR Output ports: 16 x 3.5mm mono jack
• TCP/IP Control: 1 x RJ45, female
• Rack-Mountable: 4U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 173mm x 422m without feet
• Dimensions Including Connections (W x H x D): 440mm x 178mm x 430mm with feet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Power Supply: Internal 100-240v AC
