Key Features

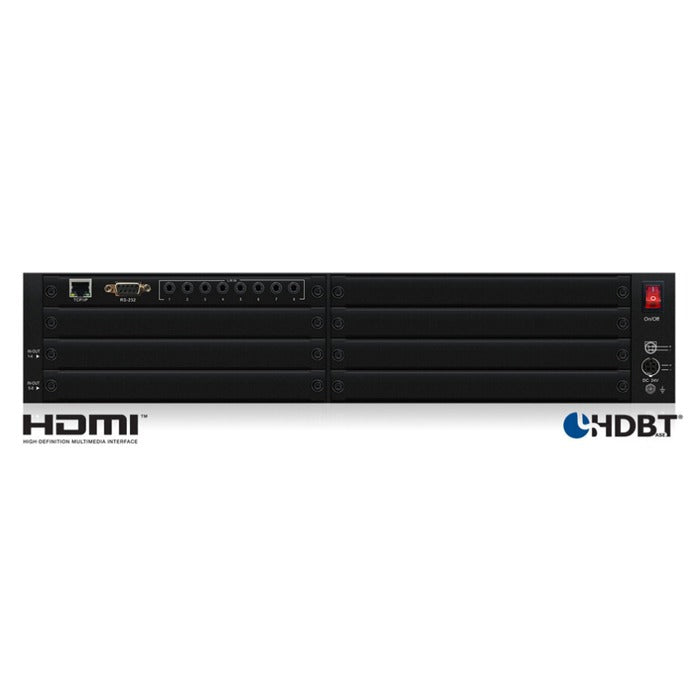

Custom Pro Matrix Hub with 8 x modular bays for population of control & input / output boards

Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards

8 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs

Control of Matrix via front panel, IR, RS-232, TCP/IP and Web GUI / App

Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards

Web interface module for control and configuration of Matrix

3rd Party drivers available for major home control brands

Advanced EDID management

HDCP 2.2 Compliant

Specifications

Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)

RS-232 Serial Ports: 1 x 9-pin RS-232 connector

TCP/IP Control: 1 x RJ45, female

Rack Mountable: 2U rack height, rack ears included

Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet

Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections

Shipping Weight: 5.0kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 24V/8A DC
